- MULE PRO-MX™ EPS
Engine Cover(s)

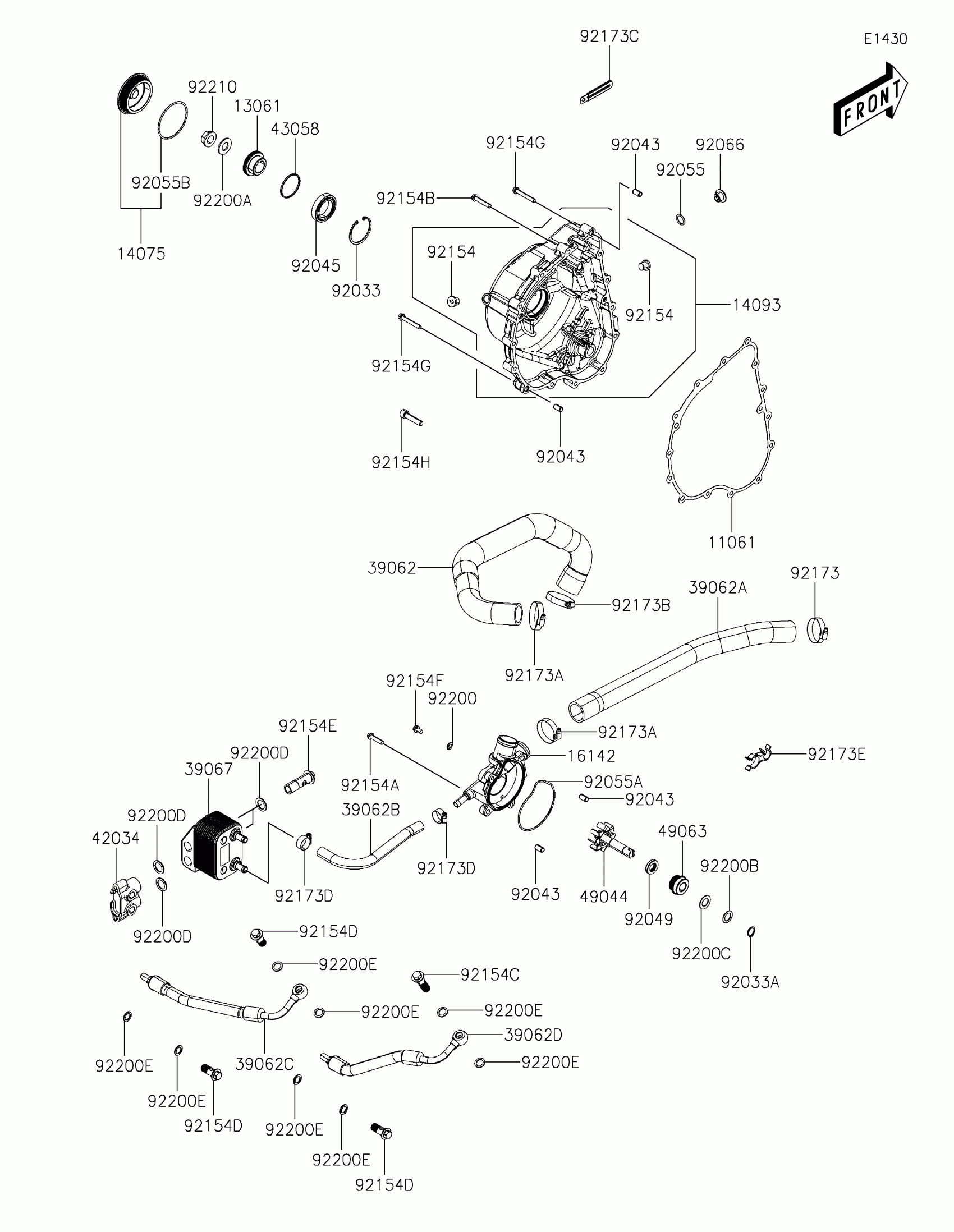

Kawasaki MULE PRO-MX™ EPS Engine Cover(s) Diagram
#
11061
GASKET,CRANK CASE COVER,RH
11061-Y055
$36.85
13061
BOSS,RACHET
13061-Y005
$47.65
14075
CAP-ASSY
14075-Y006
$27.42
14093
COVER,CRANK CASE,RH
14093-Y002
$146.68
16142
COVER-PUMP,WATER
16142-Y002
$33.67
39062
HOSE-COOLING
39062-Y015
$85.11
39062A
HOSE-COOLING
39062-Y018
$46.53
39062B
HOSE-COOLING
39062-Y021
$26.05
39062C
HOSE-COOLING
39062-Y022
$165.13
39062D
HOSE-COOLING
39062-Y023
$162.51
39067
COOLER-OIL
39067-Y001
$311.05
42034
COUPLING,OIL COOLER
42034-Y002
$24.57
43058
RING,OIL PATH
43058-Y001
$34.24
49044
PUMP-WATER
49044-Y002
$49.00
49063
SEAL-MECHANICAL
49063-Y003
$64.69
92033
RING-SNAP
92033-Y027
$3.49
92033A
RING-SNAP
92033-Y028
$1.71
92043
PIN,8X14
92043-Y012
$1.88
92045
BEARING-BALL,6906
92045-Y044
$45.89
92049
SEAL-OIL,14X24X5
92049-0824
$2.75
92055
RING-O,13.8X2.5
92055-Y023
$2.28
92055A
RING-O,WATER PUMP
92055-Y058
$18.24
92055B
RING-O,17.8X2.4
92055-Y064
$3.41
92066
PLUG,COVER
92066-Y009
$4.27
92154
BOLT,SEALING,12MM
92154-Y009
$5.94
92154A
BOLT,FLANGE,6X25
92154-Y066
$2.39
92154B
BOLT,FLANGE,6X32
92154-Y128
$2.60
92154C
BOLT
92154-Y172
$11.10
92154D
BOLT
92154-Y173
$9.99
92154E
BOLT
92154-Y175
$18.30
92154F
BOLT,FLANGE,6X10
92154-Y208
$1.97
92154G
BOLT,FLANGE,6X40
92154-Y209
$6.91
92154H
BOLT,SOCKET,8X35
92154-Y211
$4.37
92173
CLAMP,28.6MM
92173-1205
$4.92
92173A
CLAMP
92173-1892
$3.21
92173B
CLAMP
92173-1894
$2.75
92173C
CLAMP
92173-Y002
$2.28
92173D
CLAMP
92173-Y068
$7.51
92173E
CLAMP
92173-Y076
$5.66
92200
WASHER,6MM
92200-Y024
$0.96
92200A
WASHER,14X28X2
92200-Y026
$2.53
92200B
WASHER,21X13.8X1.5
92200-Y050
$2.60
92200C
WASHER,14MM
92200-Y051
$1.71
92200D
WASHER
92200-Y074
$3.75
92200E
WASHER
92200-Y076
$5.66
92210
NUT,FLANGE,14MM
92210-Y038
$3.71
