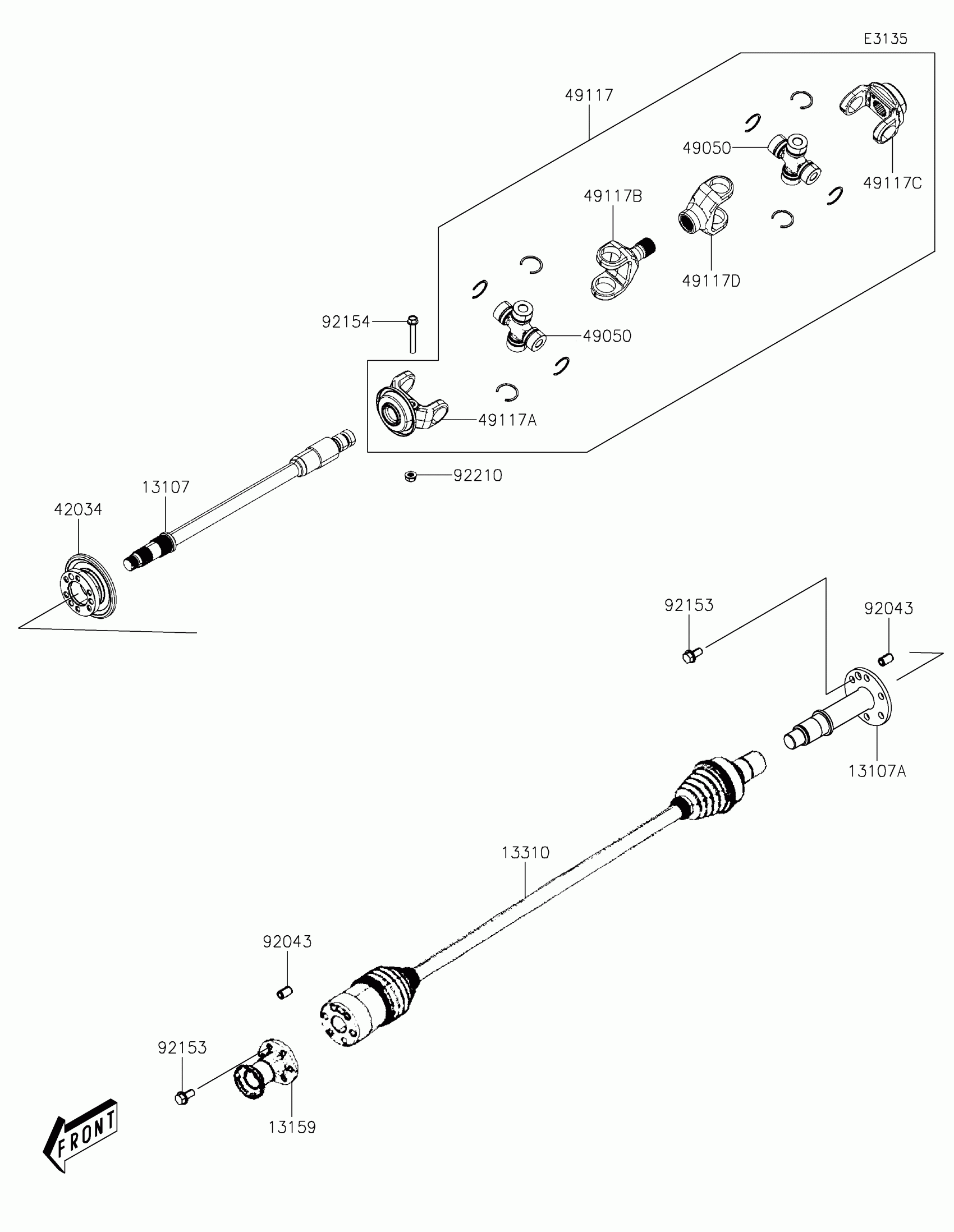

Kawasaki MULE PRO-MX™ EPS Drive Shaft-Propeller Diagram

Description

Price

13107

SHAFT,FINAL

13107-Y027

$153.75

13107A

SHAFT

13107-Y030

$133.87

13159

CONNECTOR,FR PROPELLER SHAFT

13159-Y002

$213.66

13310

SHAFT-ASSY,PROPELLER

13310-Y003

$472.22

42034

COUPLING

42034-Y003

$181.43

49050

SPIDER

49050-Y001

Unavailable

49117

YOKE,DRIVE FRONT ASSY

49117-Y001

$420.73

49117A

YOKE

49117-Y002

$122.54

49117B

YOKE

49117-Y003

$78.02

49117C

YOKE

49117-Y004

$99.73

49117D

YOKE

49117-Y005

$83.36

92043

PIN,10X16

92043-Y046

$5.66

92153

BOLT,FLANGE,8X16

92153-Y032

$1.47

92154

BOLT,SPECIAL,8X52

92154-Y168

$3.20

92210

NUT,8MM

92210-Y076

$0.68
