Description

Price

11021

CASE-ASSY,EPS ECU

11021-Y003

$23.48

11056

BRACKET,REGULATOR

11056-Y016

$15.30

14093

COVER,EPS ECU

14093-Y042

$10.38

21066

REGULATOR-VOLTAGE

21066-Y004

$210.24

21121

COIL-IGNITION

21121-Y002

$166.99

21175

CONTROL UNIT-ELECTRONIC

21175-1403

$861.42

21176

SENSOR,VEHICLE-DOWN

21176-Y008

$141.26

21177

CONTROLLER,DIFF SOLENOID

21177-Y004

$211.81

23008

SOCKET-ASSY,DC12V

23008-Y006

$27.85

26006

FUSE,10A

26006-Y007

$7.09

26006A

FUSE,20A

26006-Y008

$7.09

26006B

FUSE,30A

26006-Y009

$7.09

26006C

FUSE,40A

26006-Y010

$7.09

26006D

FUSE,60A

26006-Y011

$7.09

26011

WIRE-LEAD,BATTERY

26011-Y011

$65.86

26011A

WIRE-LEAD,BATTERY,EARTH

26011-Y012

$55.32

27002

RELAY-ASSY,START

27002-Y009

$51.21

27002A

RELAY-ASSY

27002-Y010

$44.80

27002B

RELAY-ASSY

27002-Y012

$65.14

27005

SWITCH-ASSY-IGNITION

27005-Y006

$59.34

27008

KEY-LOCK,BLANK,RH CUTTING

27008-Y008

$18.69

27008A

KEY-LOCK,BLANK,LH CUTTING

27008-Y009

$18.69

27010

SWITCH,HEAD LAMP

27010-0750

$62.98

27010A

SWITCH,2WD/4WD

27010-0751

$28.05

27010B

SWITCH,DIFF LOCK

27010-0912

$78.55

27016

LOCK-ASSY,INNER BOX

27016-Y003

$28.37

27048

SWITCH-ASSY

27048-Y001

$70.00

35063

STAY

35063-Y038

$12.73

92072

BAND

92072-Y003

$1.90

92072A

BAND

92072-Y011

$1.15

92072B

BAND,HARNESS

92072-Y015

$2.18

92072C

BAND

92072-Y017

$2.18

92072D

BAND

92072-Y020

$5.66

92072E

BAND

92072-Y021

$5.66

92093

SEAL

92093-Y046

$10.28

92153

BOLT,6X20

92153-Y019

$1.30

92153A

BOLT,FLANGE,6X12

92153-Y023

$0.76

92153B

BOLT,FLANGE,6X16

92153-Y025

$0.76

92153C

BOLT,FLANGE,8X12

92153-Y031

$1.90

92154

BOLT,5X16

92154-Y085

$2.39

92154A

BOLT,6X18

92154-Y177

$5.66

92154B

BOLT,4X25

92154-Y190

$6.91

92172

SCREW,TAPPING,5X16

92172-Y020

$1.63

92173

CLAMP,D23-D18

92173-Y044

$2.86

92173A

CLAMP,D18-D11

92173-Y046

$2.46

92173B

CLAMP,D11-D8

92173-Y047

$1.71

92173C

CLAMP

92173-Y077

$3.60

92210

NUT,6MM

92210-Y027

$0.79

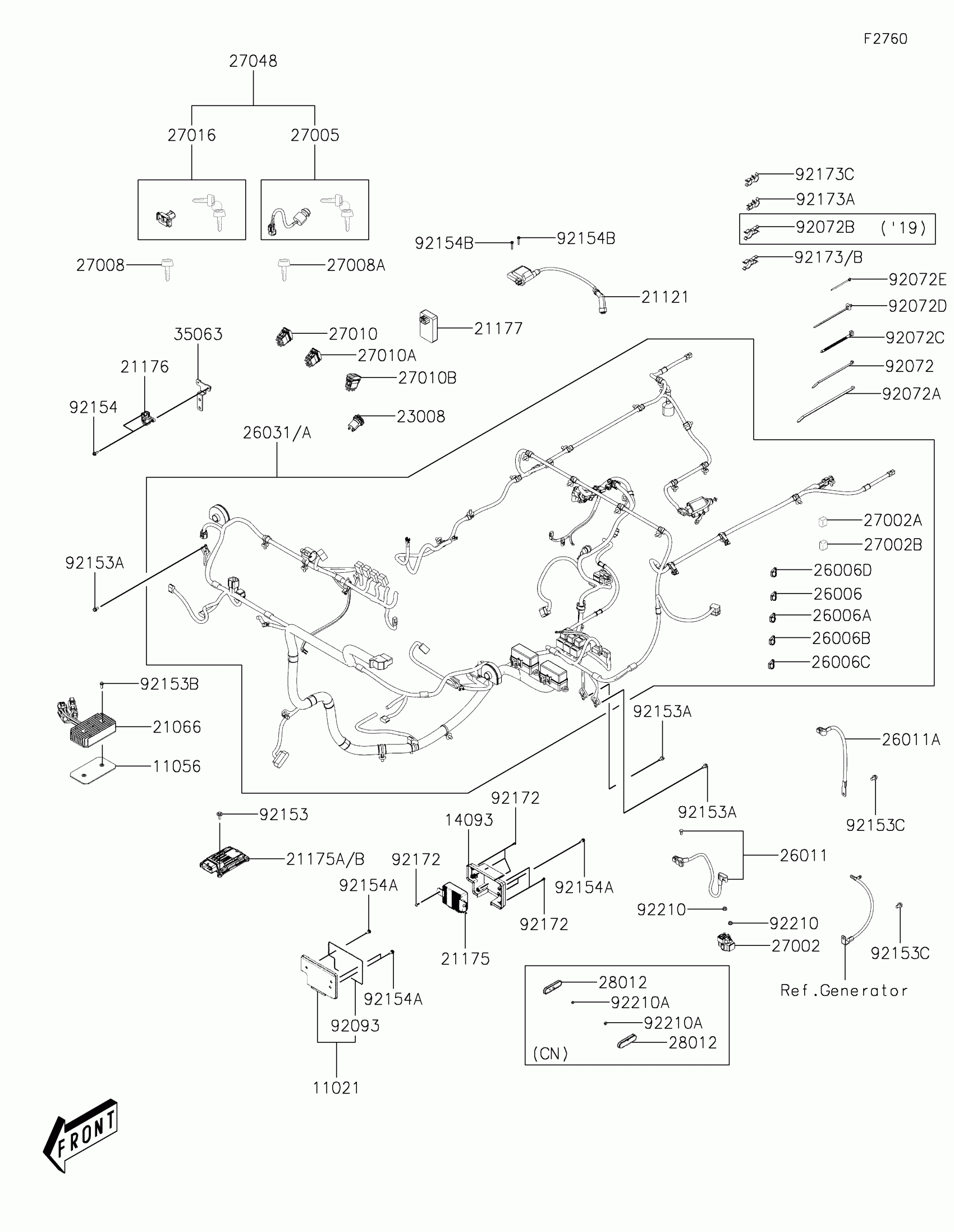

Kawasaki MULE PRO-MX™ EPS Chassis Electrical Equipment Diagram

CASE-ASSY,EPS ECU

BRACKET,REGULATOR

COVER,EPS ECU

REGULATOR-VOLTAGE

COIL-IGNITION

CONTROL UNIT-ELECTRONIC

SENSOR,VEHICLE-DOWN

CONTROLLER,DIFF SOLENOID

SOCKET-ASSY,DC12V

FUSE,10A

FUSE,20A

FUSE,30A

FUSE,40A

FUSE,60A

WIRE-LEAD,BATTERY

WIRE-LEAD,BATTERY,EARTH

RELAY-ASSY,START

RELAY-ASSY

RELAY-ASSY

SWITCH-ASSY-IGNITION

KEY-LOCK,BLANK,RH CUTTING

KEY-LOCK,BLANK,LH CUTTING

SWITCH,HEAD LAMP

SWITCH,2WD/4WD

SWITCH,DIFF LOCK

LOCK-ASSY,INNER BOX

SWITCH-ASSY

STAY

BAND

BAND

BAND,HARNESS

BAND

BAND

BAND

SEAL

BOLT,6X20

BOLT,FLANGE,6X12

BOLT,FLANGE,6X16

BOLT,FLANGE,8X12

BOLT,5X16

BOLT,6X18

BOLT,4X25

SCREW,TAPPING,5X16

CLAMP,D23-D18

CLAMP,D18-D11

CLAMP,D11-D8

CLAMP

NUT,6MM
