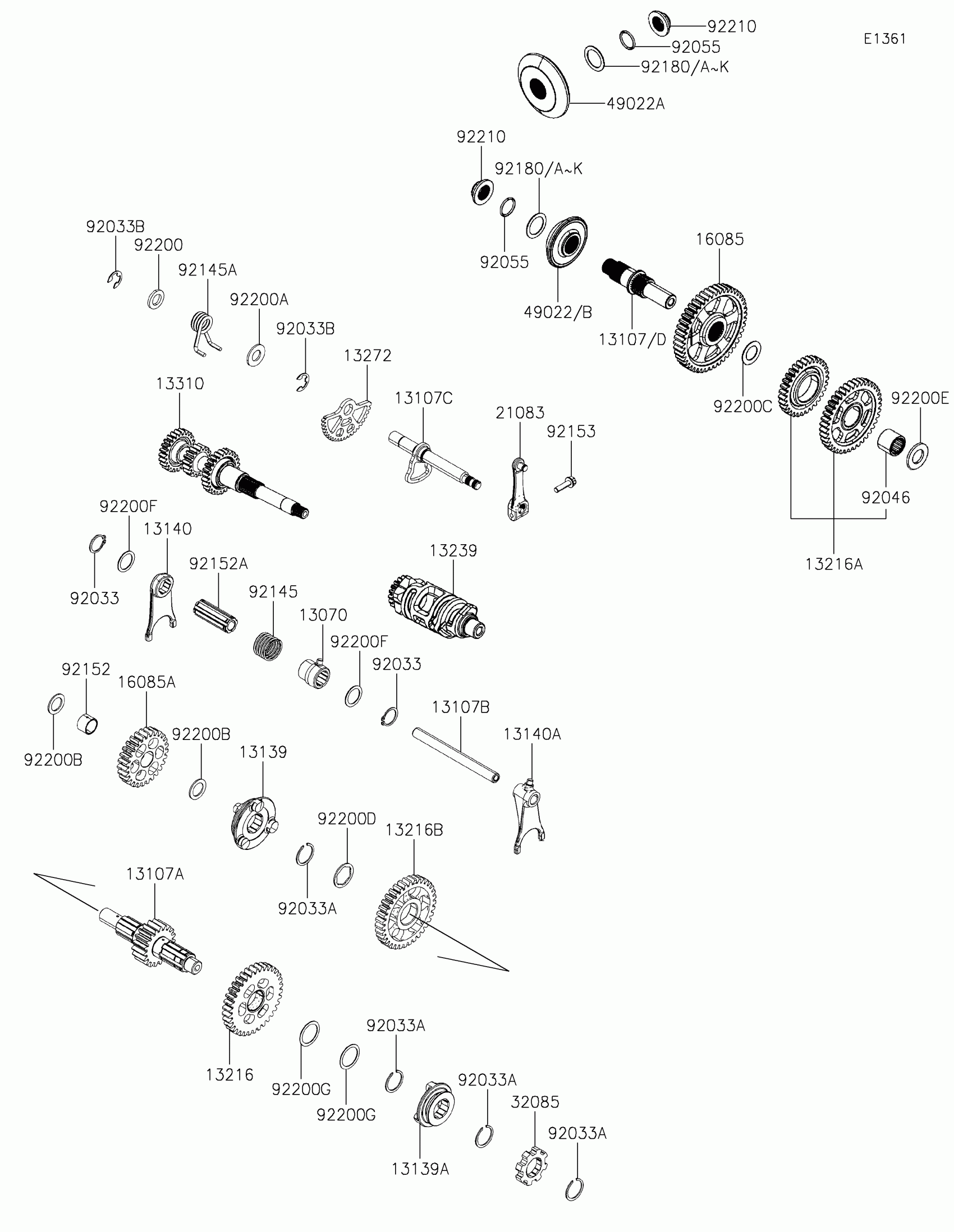

Kawasaki MULE PRO-MX™ EPS CAMO Transmission Diagram

#

Description
Price

13070

GUIDE,FORK-SHIFT,RH

13070-Y005

$29.86

13107

SHAFT,MAIN,A MARK

13107-Y025

$196.16

13107A

SHAFT,COUNTER,19T

13107-Y026

$150.37

13107B

SHAFT,SHIFT FORK GUIDE

13107-Y028

$19.51

13107C

SHAFT,GEAR SHIFT

13107-Y029

$76.70

13107D

SHAFT,MAIN,B MARK

13107-Y031

$196.16

13139

SHIFTER,FORWARD & LOWER

13139-Y003

$48.05

13139A

SHIFTER,BACKWARD

13139-Y004

$57.03

13140

FORK-SHIFT,RH

13140-Y003

$49.13

13140A

FORK-SHIFT,LH

13140-Y004

$108.14

13216

GEAR-COMP,BACKWARD 2ND DRIVEN

13216-Y005

$81.61

13216A

GEAR-COMP,BACKWARD

13216-Y006

$154.23

13216B

GEAR-COMP,LOWER DRIVE

13216-Y007

$71.99

13239

DRUM-ASSY-CHANGE

13239-Y002

$124.17

13272

PLATE,GEAR SHIFT

13272-Y029

$45.59

13310

SHAFT-ASSY,DRIVE

13310-Y001

$256.61

16085

GEAR,FINAL,46T

16085-Y015

$135.31

16085A

GEAR,FORWARD DRIVEN,27T

16085-Y016

$63.99

21083

ARM,GEAR SELECT ASSY

21083-Y005

$54.28

32085

STOPPER,PARK

32085-Y005

$21.42

49022

GEAR-BEVEL,DRIVE,A MARK

49022-Y004

$107.81

49022A

GEAR-BEVEL,DRIVEN

49022-Y005

$132.24

49022B

GEAR-BEVEL,DRIVE,B MARK

49022-Y006

$110.62

92033

RING-SNAP

92033-Y011

$1.29

92033A

RING-SNAP,28MM

92033-Y022

$2.28

92033B

RING-SNAP,12MM

92033-Y024

$2.01

92046

BEARING-NEEDLE,20X28X23

92046-Y011

$71.83

92055

RING-O,22MM

92055-Y061

$3.75

92145

SPRING

92145-Y060

$7.23

92145A

SPRING,RETURN

92145-Y061

$25.70

92152

COLLAR,20X17X14

92152-Y060

$11.02

92152A

COLLAR,FORK-SHIFT,RH

92152-Y061

$34.07

92153

BOLT,FLANGE,6X22

92153-Y026

$0.79

92180

SHIM,FINAL BEVEL GEAR,T=0.6

92180-Y032

$5.66

92180A

SHIM,FINAL BEVEL GEAR,T=0.65

92180-Y033

$5.66

92180B

SHIM,FINAL BEVEL GEAR,T=0.7

92180-Y034

$5.66

92180C

SHIM,FINAL BEVEL GEAR,T=0.75

92180-Y035

$5.66

92180D

SHIM,FINAL BEVEL GEAR,T=0.8

92180-Y036

$5.66

92180E

SHIM,FINAL BEVEL GEAR,T=0.85

92180-Y037

$5.66

92180F

SHIM,FINAL BEVEL GEAR,T=0.9

92180-Y038

$5.66

92180G

SHIM,FINAL BEVEL GEAR,T=0.95

92180-Y039

$5.66

92180H

SHIM,FINAL BEVEL GEAR,T=1.0

92180-Y040

$5.66

92180I

SHIM,FINAL BEVEL GEAR,T=1.05

92180-Y041

$5.66

92180J

SHIM,FINAL BEVEL GEAR,T=1.1

92180-Y042

$5.66

92180K

SHIM,FINAL BEVEL GEAR,T=1.15

92180-Y043

$5.66

92200

WASHER,THRUST,14X28X2

92200-Y072

$25.48

92200A

WASHER,14MM

92200-Y077

$2.37

92200B

WASHER,THRUST,17MM

92200-Y078

$3.75

92200C

WASHER,THRUST,20X33X1

92200-Y079

$5.66

92200D

WASHER,25X31X1.5

92200-Y080

$3.75

92200E

WASHER,THRUST,20X36X3

92200-Y081

$8.60

92200F

WASHER,THRUST,20MM

92200-Y082

$3.75

92200G

WASHER,25X31X0.8

92200-Y083

$4.92

92210

NUT,FLANGE,20MM

92210-Y084

$17.61
