Description

Price

16126

VALVE,RIM

16126-Y001

$6.55

39184

BRACKET-ASSY

39184-0044

$76.87

41009

TIRE,RR,25X10.00 R12

41009-Y009

$419.96

41080

DISC,BRAKE

41080-Y009

$93.89

43041

CALIPER-ASSY,RR,RH,SILVER

43041-Y009-934

$341.29

43041A

CALIPER-ASSY,RR,LH,SILVER

43041-Y010-934

$341.29

43045

SHAFT-CALIPER

43045-Y002

$13.45

43056

BREATHER-BRAKE

43056-0006

$4.05

43057

CAP-BREATHER

43057-Y002

$2.53

43082

PAD-ASSY-BRAKE,RR

43082-Y009

$42.13

49006

BOOT,CALIPER

49006-Y005

$3.39

49006A

BOOT,RR,OUTSIDE

49006-Y011

$81.54

49006B

BOOT,RR,INSIDE

49006-Y012

$106.26

49030

HUB,RR

49030-Y004

$139.93

49058

WHEEL,RR,BLACK

49058-Y005-935

$168.05

59266

JOINT-BALL,RR,RH

59266-Y002

$486.34

59266A

JOINT-BALL,RR,LH

59266-Y003

$451.14

92043

PIN,4X40

92043-Y043

$2.37

92066

PLUG

92066-Y012

$2.01

92093

SEAL,PISTON

92093-Y033

$15.06

92093A

SEAL,PISTON

92093-Y034

$14.18

92145

SPRING,RETURN,47MM

92145-1690

$5.24

92145A

SPRING,PAD

92145-Y035

$5.72

92154

BOLT,10X23

92154-Y178

$9.02

92154A

BOLT

92154-Y183

$8.60

92154B

BOLT,OIL

92154-Y184

$8.60

92161

DAMPER

92161-Y012

$5.03

92200

WASHER

92200-Y015

$3.49

92200A

WASHER,12MM

92200-Y089

$1.97

92200B

WASHER,40X20.5X4.5

92200-Y090

$5.24

92210

NUT

92210-Y088

$8.60

92210A

NUT,FLANGE,20MM

92210-Y099

$15.70

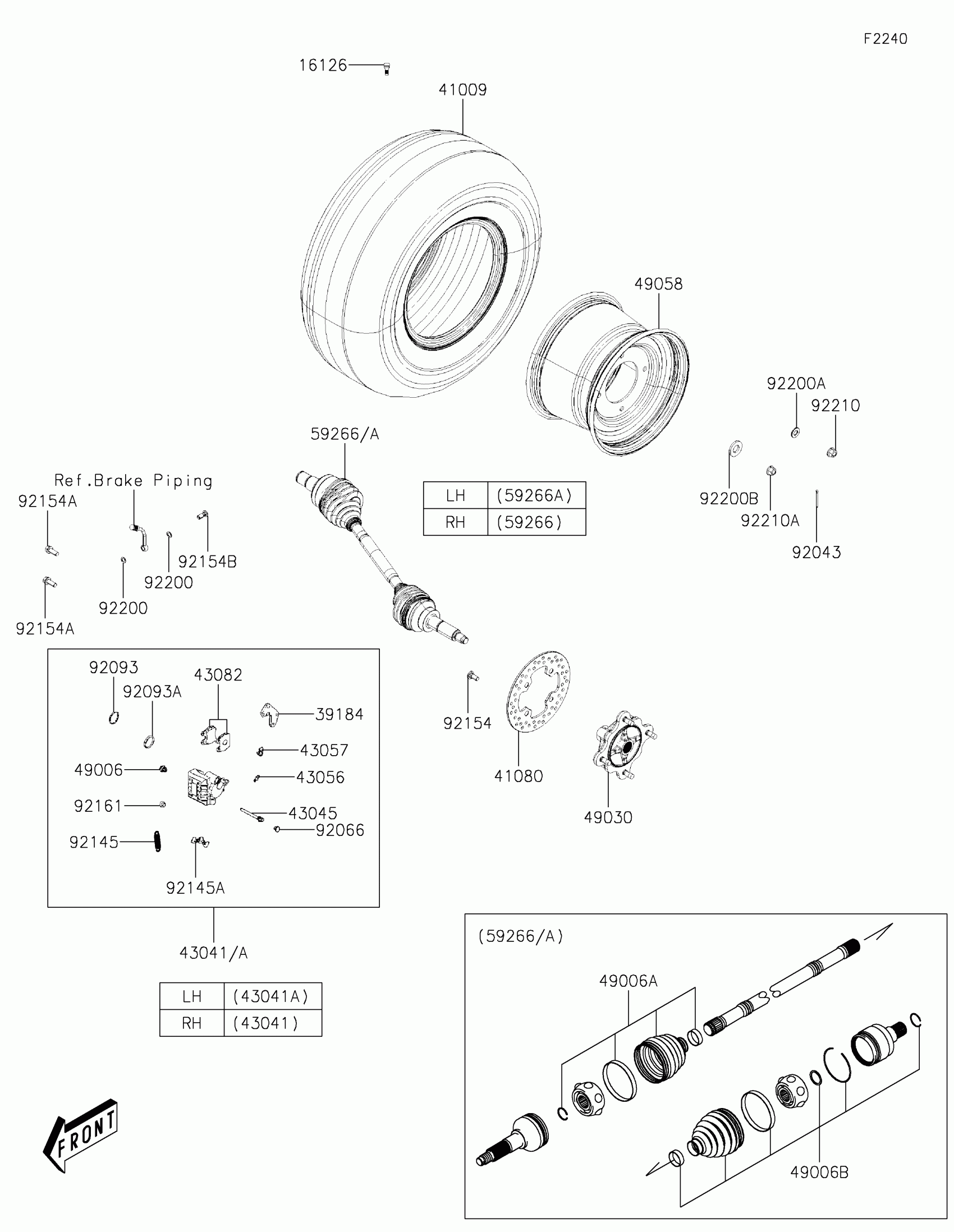

Kawasaki MULE PRO-MX™ EPS CAMO Rear Hubs/Brakes Diagram

VALVE,RIM

BRACKET-ASSY

TIRE,RR,25X10.00 R12

DISC,BRAKE

CALIPER-ASSY,RR,RH,SILVER

CALIPER-ASSY,RR,LH,SILVER

SHAFT-CALIPER

BREATHER-BRAKE

CAP-BREATHER

PAD-ASSY-BRAKE,RR

BOOT,CALIPER

BOOT,RR,OUTSIDE

BOOT,RR,INSIDE

HUB,RR

WHEEL,RR,BLACK

JOINT-BALL,RR,RH

JOINT-BALL,RR,LH

PIN,4X40

PLUG

SEAL,PISTON

SEAL,PISTON

SPRING,RETURN,47MM

SPRING,PAD

BOLT,10X23

BOLT

BOLT,OIL

DAMPER

WASHER

WASHER,12MM

WASHER,40X20.5X4.5

NUT

NUT,FLANGE,20MM
