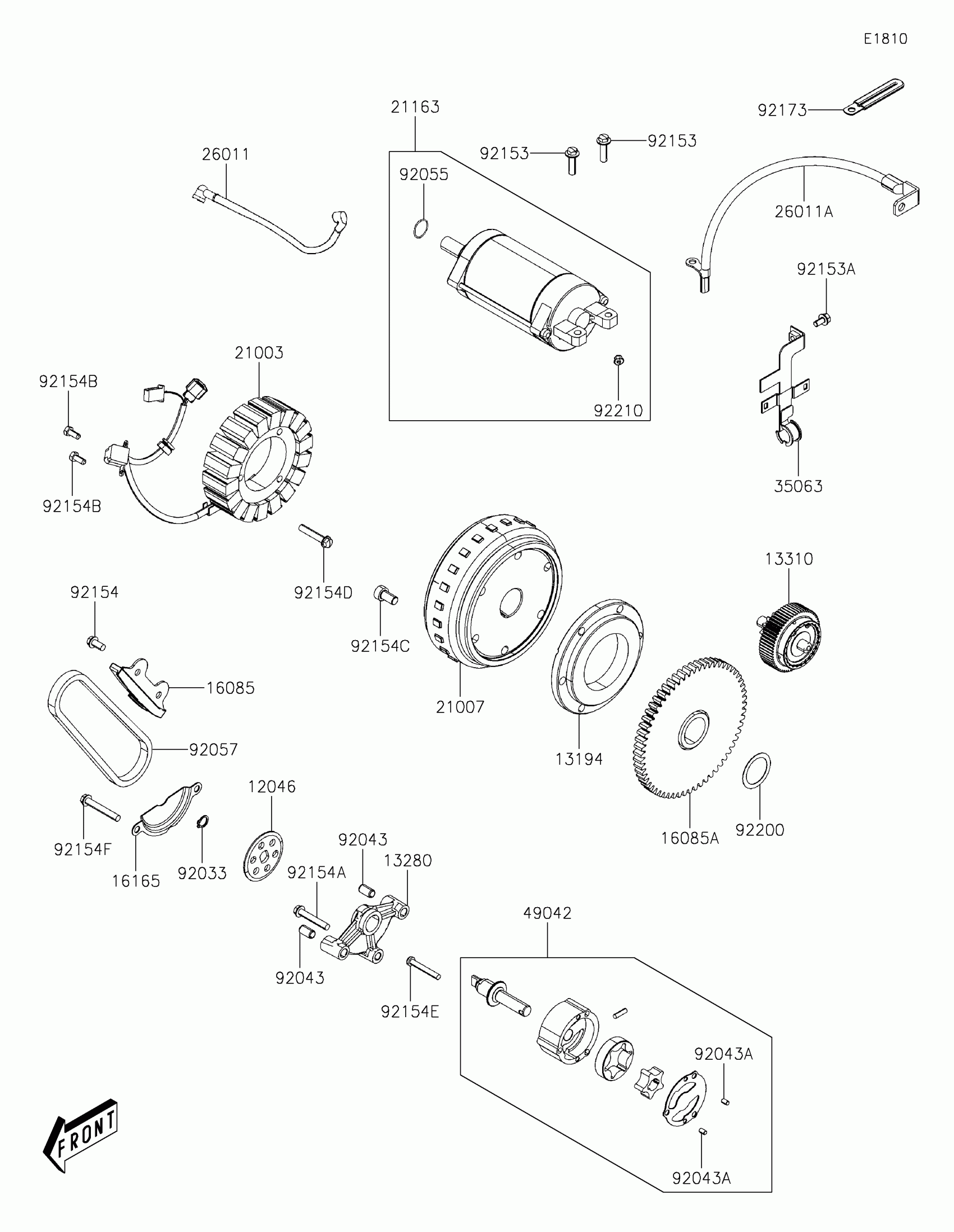

Kawasaki MULE PRO-MX™ EPS CAMO Generator Diagram
#
Description
Price
12046
SPROCKET,OIL PUMP DRIVE
12046-Y006
$12.00
13194
CLUTCH-ONEWAY
13194-Y001
$248.84
13280
HOLDER,OIL PUMP SHAFT
13280-Y018
$19.82
13310
SHAFT-ASSY,REDUCTION
13310-Y002
$134.06
16085
GEAR,START REDUCTION
16085-Y017
$27.42
16085A
GEAR,STARTING CLUTCH
16085-Y018
$83.01
16165
SEPARATOR,OIL
16165-Y007
$3.48
21003
STATOR
21003-Y010
$239.58
21007
ROTOR
21007-Y010
$437.85
21163
STARTER-ELECTRIC
21163-Y006
$367.12
26011
WIRE-LEAD,STARTER MOTOR
26011-Y010
$55.79
26011A
WIRE-LEAD,EARTH
26011-Y013
$29.88
35063
STAY
35063-Y036
$22.43
49042
PUMP-OIL,ASSY
49042-Y006
$64.32
92033
RING-SNAP,10MM
92033-Y019
$1.23
92043
PIN,8X14
92043-Y012
$1.88
92043A
PIN,DOWEL,4X65
92043-Y015
$1.02
92055
RING-O,24.4X3.1
92055-Y025
$2.53
92057
CHAIN,OIL PUMP
92057-Y013
$30.73
92153
BOLT,FLANGE,6X22
92153-Y003
$0.79
92153A
BOLT,5X10
92153-Y058
$0.79
92154
BOLT,FLANGE,6X12
92154-Y035
$1.48
92154A
BOLT,FLANGE,6X35
92154-Y069
$2.39
92154B
BOLT,HEX,5X12
92154-Y111
$2.48
92154C
BOLT,8X15
92154-Y123
$5.03
92154D
BOLT,FLANGE,6X32
92154-Y128
$2.60
92154E
BOLT,5X35
92154-Y185
$5.66
92154F
BOLT,FLANGE,6X40
92154-Y209
$6.91
92173
CLAMP
92173-Y004
$2.28
92200
WASHER,27.2X36X0.5
92200-Y097
$12.49
92210
NUT,6MM
92210-Y039
$0.96
