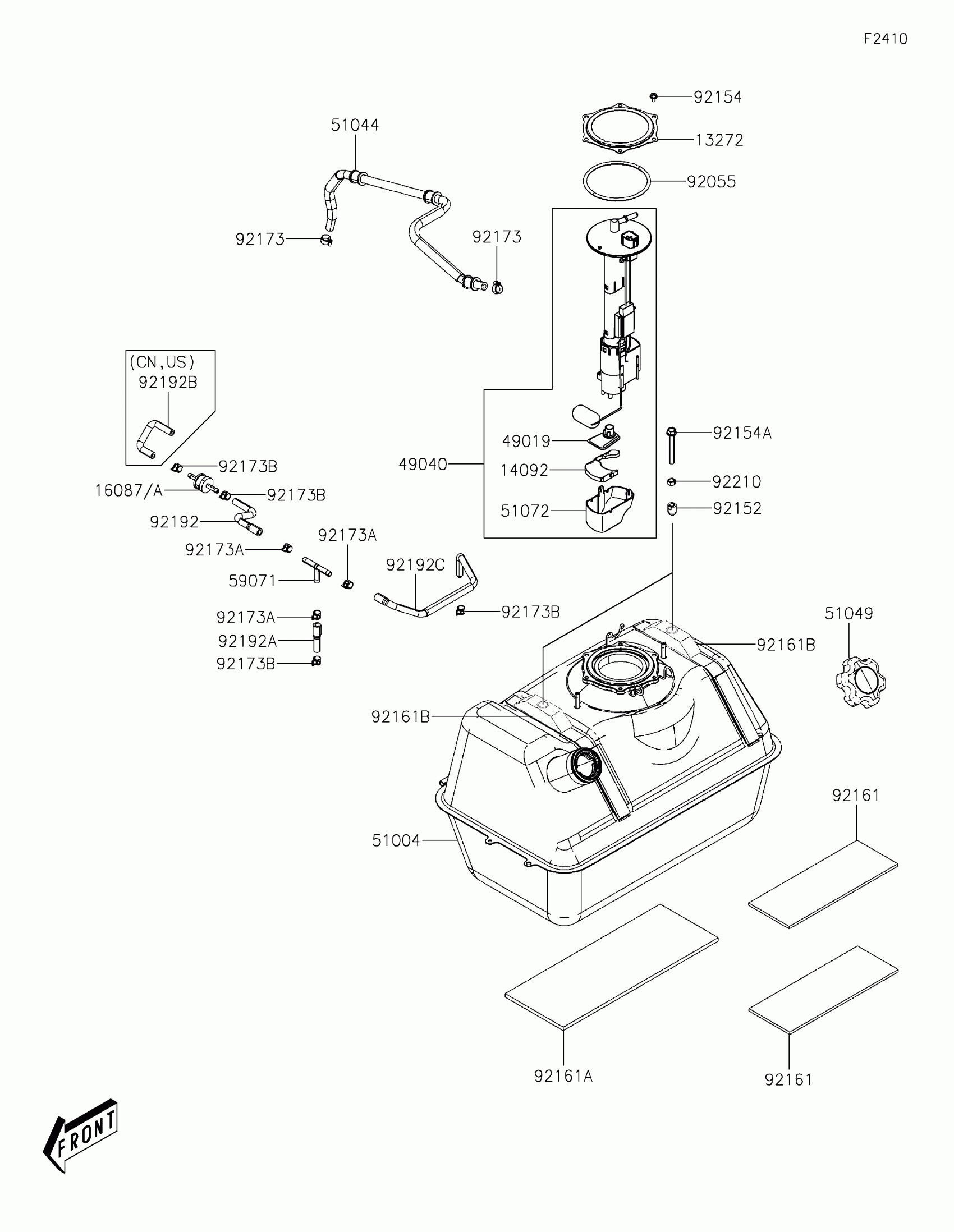

Kawasaki MULE PRO-MX™ EPS CAMO Fuel Tank Diagram

Description

Price

13272

PLATE,FUEL PUMP

13272-Y030

$12.62

14092

COVER

14092-1044

$30.60

49019

FILTER-FUEL

49019-0013

$16.56

49040

PUMP-FUEL

49040-0716

$824.04

51004

TANK-FUEL

51004-Y001

$336.33

51044

TUBE-ASSY,FUEL TANK

51044-0896

$75.39

51049

CAP-TANK

51049-Y005

$69.53

51072

CHAMBER-FUEL

51072-0003

$46.00

59071

JOINT,3 WAY

59071-Y008

$2.37

92055

RING-O,FUEL PUMP

92055-Y057

$43.85

92152

COLLAR

92152-Y057

$10.55

92154

BOLT,5X10

92154-Y119

$5.03

92154A

BOLT,FLANGE,8X60

92154-Y207

$8.60

92161

DAMPER,FUEL TANK

92161-Y040

$3.60

92161A

DAMPER,FUEL TANK

92161-Y041

$28.33

92161B

DAMPER

92161-Y042

$28.04

92173

CLAMP,12.5MM

92173-Y043

$4.20

92173A

CLAMP

92173-Y051

$5.24

92173B

CLAMP

92173-Y081

$9.34

92192

TUBE

92192-Y060

$11.95

92192A

TUBE

92192-Y061

$6.36

92192C

TUBE

92192-Y073

$48.88

92210

NUT,HEX,8MM

92210-Y079

$2.60
