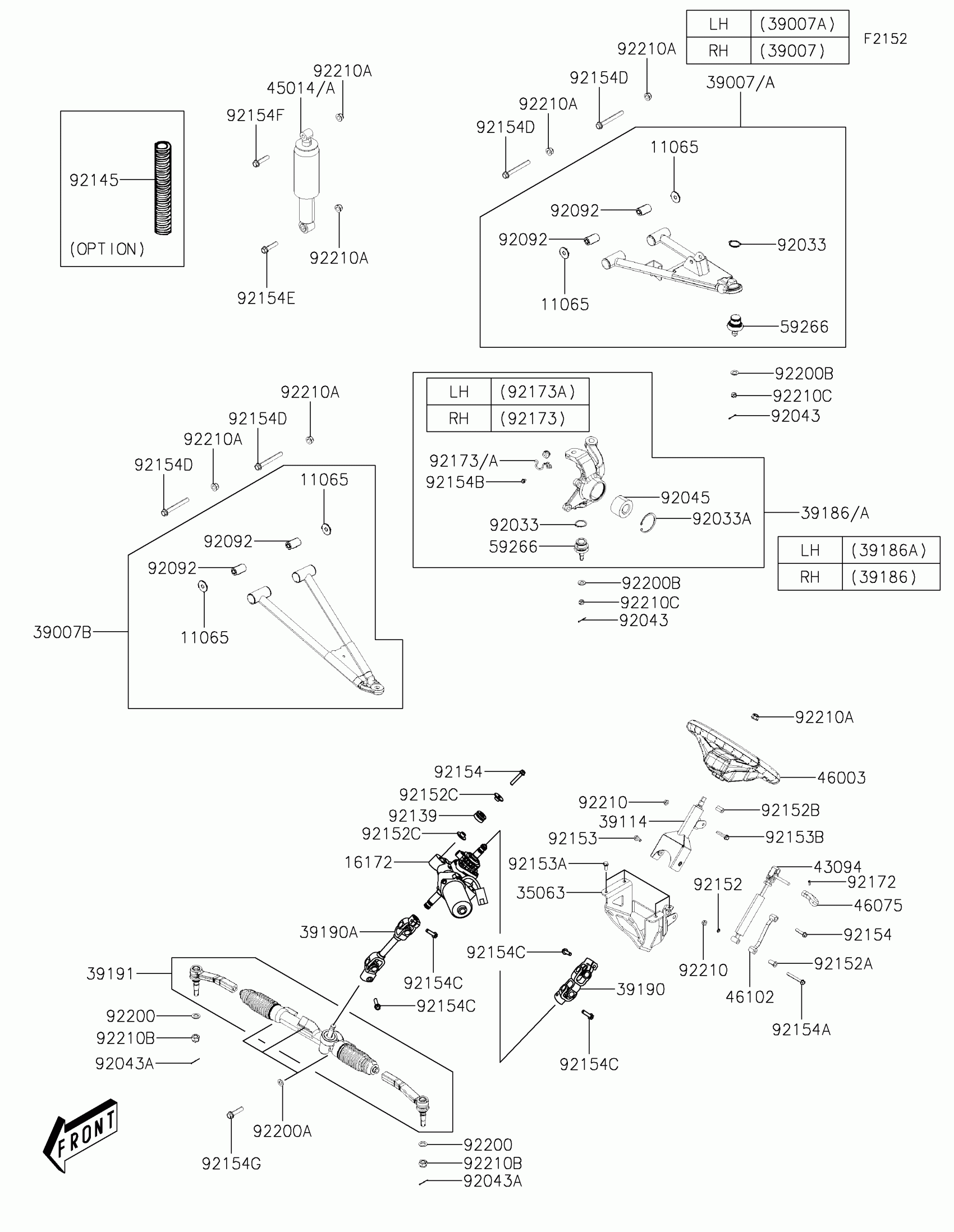

Kawasaki MULE PRO-MX™ EPS CAMO Front Suspension Diagram

#

Description
Price

11065

CAP,ARM

11065-Y039

$2.09

16172

ACTUATOR,EPS

16172-0557

$1,812.19

35063

STAY,EPS

35063-Y043

$160.52

39007

ARM-SUSP,FR,UPP,RH

39007-Y011

$205.07

39007A

ARM-SUSP,FR,UPP,LH

39007-Y012

$205.07

39007B

ARM-SUSP,FR,LWR

39007-Y013

$127.34

39114

SHAFT-COMP-STRG

39114-Y003

$132.83

39186

KNUCKLE,ASSY,FR,RH

39186-Y005

$396.69

39186A

KNUCKLE,ASSY,FR,LH

39186-Y007

$320.65

39190

SHAFT-ASSY-STEERING,EPS,UPP

39190-Y002

$161.75

39190A

SHAFT-ASSY-STEERING,EPS,LWR

39190-Y003

$153.75

39191

GEAR-ASSY-STEERING

39191-Y001

$472.95

43094

ADJUSTER,HANDLE

43094-Y001

$124.03

45014

SHOCKABSORBER,FR

45014-Y008

$506.91

45014A

SHOCKABSORBER,FR

45014-Y010

$373.98

46003

HANDLE

46003-Y004

$160.17

46075

GRIP,ADJUSTER

46075-Y009

$14.92

46102

ROD,STEERING BRACKET

46102-Y002

$53.11

59266

JOINT-BALL

59266-Y005

$74.82

92033

RING-SNAP,32MM

92033-Y036

$5.66

92033A

RING-SNAP,60MM

92033-Y037

$9.72

92043

PIN,3X25

92043-Y009

$0.76

92043A

PIN,3X25

92043-Y011

$0.76

92045

BEARING-BALL,30X60X37

92045-0905

$63.39

92092

BUSHING-RUBBER

92092-Y005

$36.30

92139

BUSHING

92139-Y015

$3.09

92145

SPRING,SHOCK,FR

92145-Y071

$92.19

92152

COLLAR

92152-Y067

$3.40

92152A

COLLAR

92152-Y068

$13.47

92152B

COLLAR

92152-Y071

$8.60

92152C

COLLAR

92152-Y073

$8.60

92153

BOLT,FLANGE,8X16

92153-Y032

$1.47

92153A

BOLT,FLANGE,8X20

92153-Y033

$1.47

92153B

BOLT,FLANGE,8X40

92153-Y069

$2.51

92154

BOLT,FLANGE,8X35

92154-Y021

$2.28

92154A

BOLT,FLANGE,8X65

92154-Y120

$2.91

92154B

BOLT,FLANGE,6X6

92154-Y193

$2.92

92154C

BOLT,FLANGE,8X30

92154-Y198

$4.37

92154D

BOLT,FLANGE,12X100

92154-Y202

$12.78

92154E

BOLT,FLANGE,12X60

92154-Y203

$9.72

92154F

BOLT,FLANGE,12X55

92154-Y204

$9.72

92154G

BOLT,FLANGE,12X50

92154-Y205

$9.29

92172

SCREW,4X10

92172-Y071

$2.31

92173

CLAMP,KNUCKLE,FR,RH

92173-Y069

$4.83

92173A

CLAMP,KNUCKLE,FR,LH

92173-Y071

$4.83

92200

WASHER,14X26X2.3

92200-Y045

$2.28

92200A

WASHER,12MM

92200-Y091

$1.97

92200B

WASHER,SPRING

92200-Y095

$5.66

92210

NUT,8MM

92210-Y076

$0.68

92210A

NUT,FLANGE,12MM

92210-Y090

$8.81

92210B

NUT,14MM

92210-Y096

$9.99

92210C

NUT,12MM

92210-Y097

$8.60
