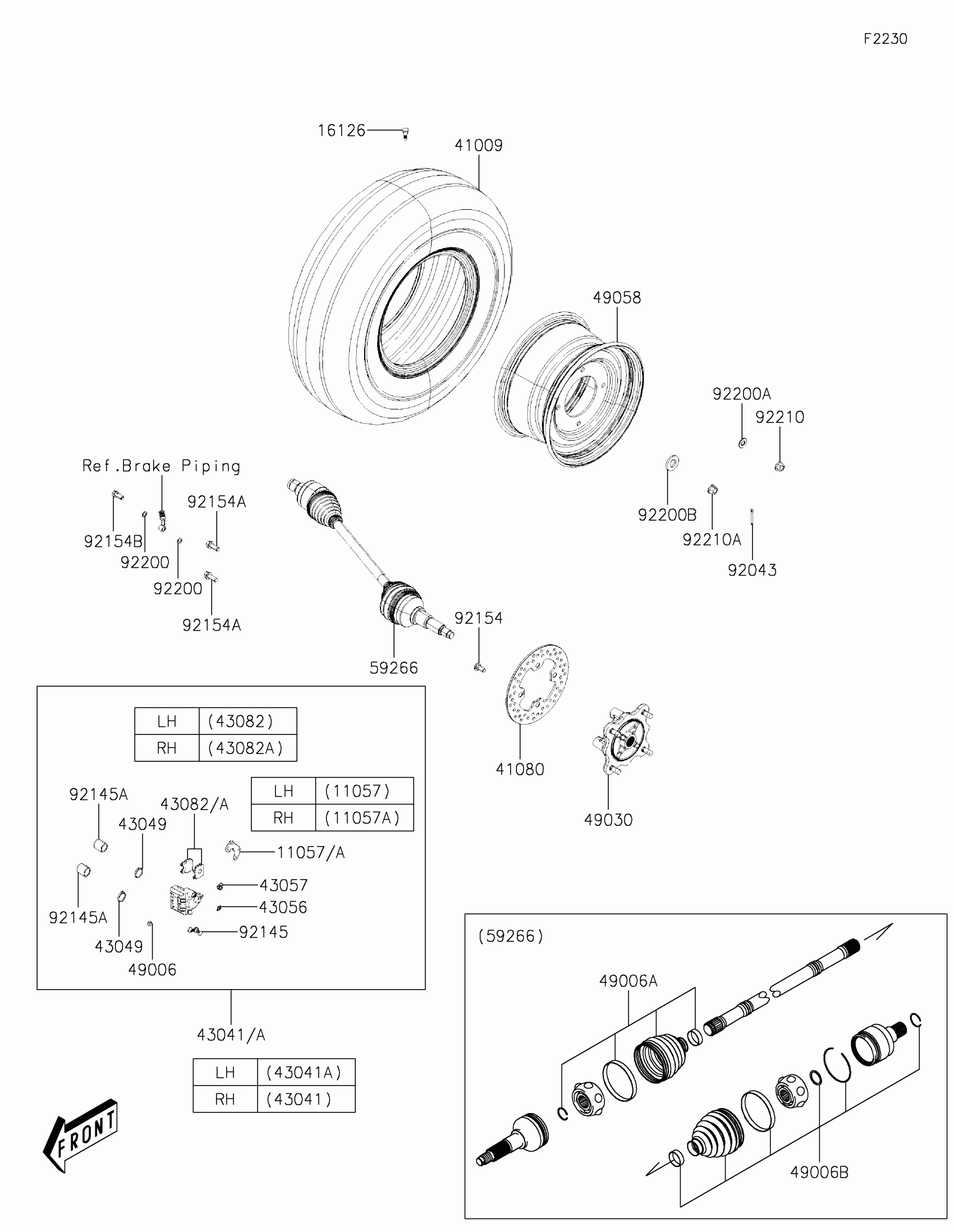

Kawasaki MULE PRO-MX™ EPS CAMO Front Hubs/Brakes Diagram

Description

Price

11057

BRACKET

11057-Y007

$51.54

11057A

BRACKET

11057-Y019

$51.54

16126

VALVE,RIM

16126-Y001

$6.55

41009

TIRE,FR,25X8.00 R12

41009-Y008

$272.84

41080

DISC,BRAKE

41080-Y009

$93.89

43020

PISTON-COMP-BRAKE

43020-0054

$43.17

43041

CALIPER-ASSY,FR,RH,SILVER

43041-Y011-934

$221.48

43041A

CALIPER-ASSY,FR,LH,SILVER

43041-Y012-934

$221.48

43049

PACKING

43049-0556

$17.57

43056

BREATHER-BRAKE

43056-0055

$12.73

43057

CAP-BREATHER

43057-0552

$5.01

43082

PAD-ASSY-BRAKE,FR,LH

43082-Y010

$56.27

43082A

PAD-ASSY-BRAKE,FR,RH

43082-Y011

$56.27

49006

BOOT

49006-0565

$10.79

49006A

BOOT,FR,OUTSIDE

49006-Y013

$81.54

49006B

BOOT,FR,INSIDE

49006-Y014

$106.26

49030

HUB,FR

49030-Y003

$127.04

49058

WHEEL,FR,BLACK

49058-Y002-935

$162.49

59266

JOINT-BALL,FR

59266-Y004

$398.84

92043

PIN,4X40

92043-Y043

$2.37

92145

SPRING

92145-0705

$7.14

92154

BOLT,10X23

92154-Y178

$9.02

92154A

BOLT

92154-Y183

$8.60

92154B

BOLT,OIL

92154-Y184

$8.60

92200

WASHER

92200-Y015

$3.49

92200A

WASHER,12MM

92200-Y089

$1.97

92200B

WASHER,40X20.5X4.5

92200-Y090

$5.24

92210

NUT

92210-Y088

$8.60

92210A

NUT,FLANGE,20MM

92210-Y099

$15.70
