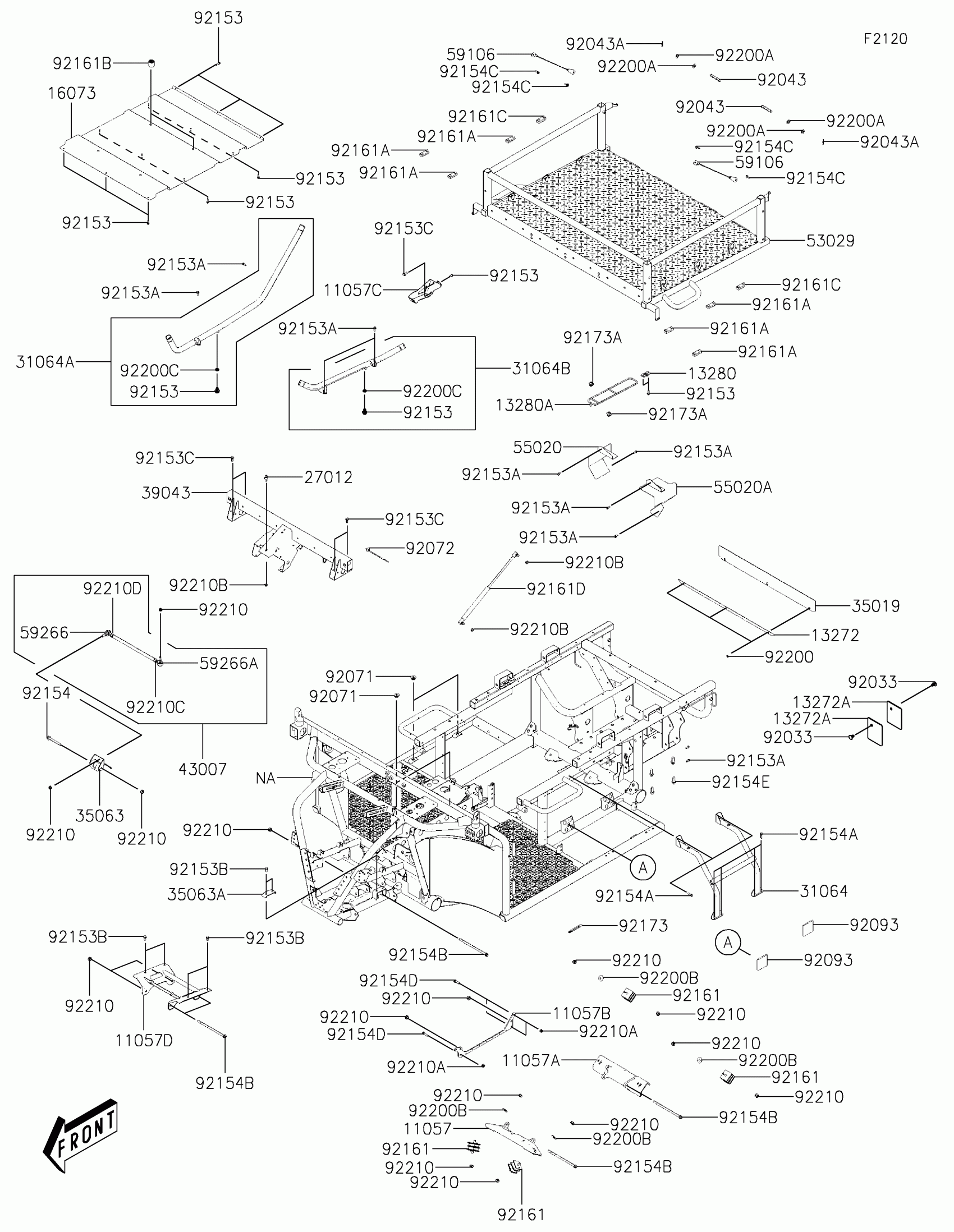

Kawasaki MULE PRO-MX™ EPS CAMO Frame Diagram
#
11057
BRACKET,FR
11057-Y009
$144.10
11057A
BRACKET,RR
11057-Y010
$132.66
11057B
BRACKET
11057-Y011
$38.69
11057C
BRACKET,SHIFT
11057-Y012
$34.07
11057D
BRACKET,FR DIFF
11057-Y014
$107.75
13272
PLATE
13272-Y033
$11.95
13272A
PLATE
13272-Y034
$4.96
13280
HOLDER
13280-Y023
$4.96
13280A
HOLDER
13280-Y024
$18.73
16073
INSULATOR
16073-Y006
$140.90
27012
HOOK,SEAT
27012-Y004
$16.69
31064
PIPE-COMP,TANK
31064-Y010
$169.94
31064A
PIPE-COMP,RADIATOR.INLET
31064-Y011
$181.79
31064B
PIPE-COMP,RADIATOR.OUTLET
31064-Y012
$129.66
35019
FLAP
35019-Y005
$39.37
35063
STAY,TORQUE ROD
35063-Y039
$24.34
35063A
STAY,FR DIFF
35063-Y040
$8.94
39043
CROSSMEMBER-COMP
39043-Y001
$446.30
43007
ROD-TORQUE
43007-Y001
$163.83
53029
CARRIER
53029-Y005
$721.12
55020
GUARD,HEAT,RH
55020-Y010
$29.70
55020A
GUARD,HEAT,LH
55020-Y011
$50.84
59106
ROPE
59106-Y002
$19.58
59266
JOINT-BALL,RH
59266-Y006
$80.32
59266A
JOINT-BALL,LH
59266-Y007
$80.32
92033
RING-SNAP
92033-Y031
$1.26
92043
PIN
92043-Y042
$22.09
92043A
PIN,LOCK,14MM
92043-Y044
$3.75
92071
GROMMET
92071-Y005
$3.01
92072
BAND
92072-Y020
$5.66
92093
SEAL
92093-Y032
$4.39
92153
BOLT,FLANGE,6X12
92153-Y023
$0.76
92153A
BOLT,FLANGE,6X16
92153-Y025
$0.76
92153B
BOLT,FLANGE,8X16
92153-Y032
$1.47
92153C
BOLT,FLANGE,8X20
92153-Y033
$1.47
92154
BOLT,FLANGE,10X85
92154-Y047
$5.03
92154A
BOLT,FLANGE,6X25
92154-Y130
$0.68
92154B
BOLT,FLANGE,10X200
92154-Y169
$21.47
92154C
BOLT,6X20
92154-Y179
$5.66
92154D
BOLT,FLANGE,8X30
92154-Y198
$4.37
92154E
BOLT,FLANGE,12X40
92154-Y206
$7.53
92161
DAMPER
92161-2083
$28.88
92161A
DAMPER,CARGO BED
92161-Y047
$4.96
92161B
DAMPER,HEAT SHIELD
92161-Y049
$6.91
92161C
DAMPER,CARGO BED
92161-Y051
$5.78
92161D
DAMPER,GAS
92161-Y052
$122.79
92173
CLAMP
92173-Y002
$2.28
92173A
CLAMP
92173-Y073
$0.98
92200
WASHER
92200-Y070
$0.56
92200A
WASHER,12MM
92200-Y091
$1.97
92200B
WASHER,10.5X30X2
92200-Y092
$3.01
92200C
WASHER
92200-Y102
$2.79
92210
NUT,10MM
92210-Y009
$3.12
92210A
NUT,FLANGE,8MM
92210-Y032
$1.63
92210B
NUT,8MM
92210-Y076
$0.68
92210C
NUT,HEX,12MM
92210-Y093
$11.53
92210D
NUT,HEX,LEFT HANDED,12MM
92210-Y094
$11.53
