- Partiron
- OEM Parts
- Kawasaki
- side-x-side
- 2020
- MULE PRO-MX™ EPS CAMO
Carrier(s)

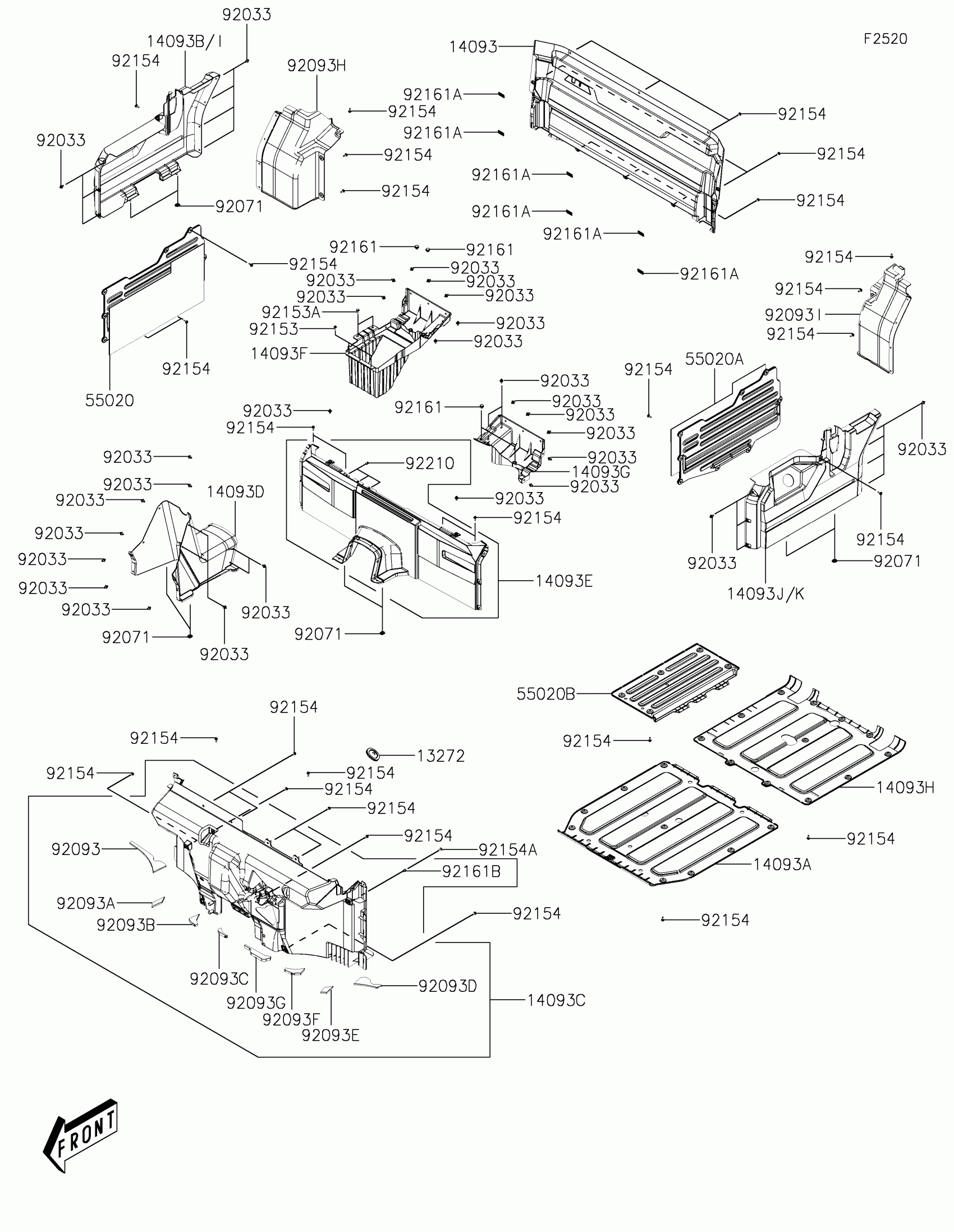

Kawasaki MULE PRO-MX™ EPS CAMO Carrier(s) Diagram
#
13272
PLATE,FRONT TIRE HOUSE
13272-Y032
$15.01
14093
COVER,BACK,S.BLACK
14093-Y010-933
$166.37
14093A
COVER,UNDER,FR,S.BLACK
14093-Y018-933
$129.33
14093C
COVER,FR FLOOR,S.BLACK
14093-Y023-933
$372.09
14093D
COVER,SIDE,LH,S.BLACK
14093-Y024-933
$111.71
14093E
COVER,TUNNEL,S.BLACK
14093-Y025-933
$74.27
14093F
COVER,CNT,S.BLACK
14093-Y026-933
$227.34
14093G
COVER,HEAT GUARD,RH
14093-Y027
$69.46
14093H
COVER,HEAT GUARD,LH
14093-Y029
$23.23
14093I
COVER,UNDER,RR,S.BLACK
14093-Y030-933
$133.68
14093K
COVER,SIDE,LH,S.BLACK
14093-Y039-933
Unavailable
55020
GUARD,HEAT,RH
55020-Y013
$209.18
55020A
GUARD,HEAT,LH
55020-Y014
$209.18
55020B
GUARD,BOOT,S.BLACK
55020-Y017-933
$56.17
92033
RING-SNAP
92033-Y033
$2.37
92071
GROMMET
92071-Y006
$3.01
92093
SEAL
92093-Y035
$24.11
92093A
SEAL
92093-Y036
$27.23
92093B
SEAL
92093-Y037
$7.53
92093C
SEAL
92093-Y038
$5.94
92093D
SEAL
92093-Y039
$9.72
92093E
SEAL
92093-Y040
$43.57
92093F
SEAL
92093-Y041
$10.71
92093G
SEAL
92093-Y042
$14.88
92093H
SEAL
92093-Y043
$46.94
92093I
SEAL
92093-Y044
$46.94
92153
BOLT,5X16
92153-Y013
$0.76
92153A
BOLT,FLANGE,8X16
92153-Y032
$1.47
92154
BOLT,6X18
92154-Y177
$5.66
92154A
BOLT,5X22
92154-Y186
$2.37
92161
DAMPER
92161-Y014
$2.53
92161A
DAMPER
92161-Y045
$4.96
92161B
DAMPER
92161-Y054
$5.66
92210
NUT,5MM
92210-Y016
$1.40
