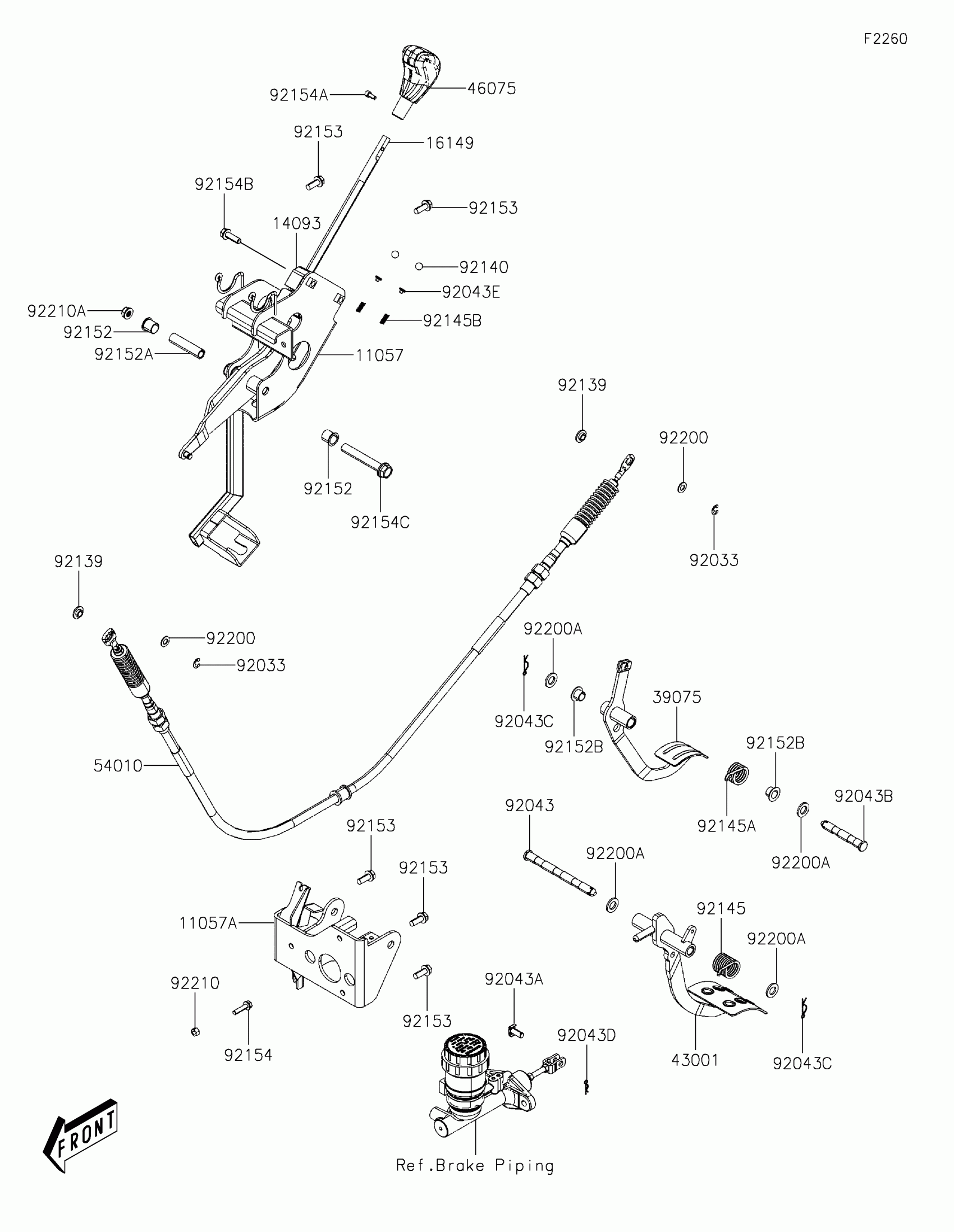

Kawasaki MULE PRO-MX™ EPS CAMO Brake Pedal/Throttle Lever Diagram

#

Description
Price

11057

BRACKET,SHIFT

11057-Y003

$96.78

11057A

BRACKET,BRAKE PEDAL

11057-Y008

$104.33

14093

COVER,SHIFT LEVER GUIDE

14093-Y007

$18.84

16149

BAR,SHIFT

16149-Y001

$185.39

39075

LEVER-THROTTLE

39075-Y001

$45.27

43001

LEVER-BRAKE,PEDAL

43001-Y002

$57.91

46075

GRIP

46075-0569

$22.85

54010

CABLE,SHIFT

54010-Y002

$247.30

92033

RING-SNAP

92033-Y041

$2.56

92043

PIN

92043-Y039

$25.21

92043A

PIN

92043-Y040

$9.14

92043B

PIN

92043-Y041

$22.09

92043C

PIN,LOCK,14MM

92043-Y044

$3.75

92043D

PIN,LOCK,8MM

92043-Y045

$3.75

92043E

PIN

92043-Y047

$5.66

92139

BUSHING,SHIFT

92139-Y013

$9.12

92140

BALL,STEEL 12

92140-Y001

$1.48

92145

SPRING,BRAKE PEDAL RETURN

92145-Y064

$11.10

92145A

SPRING,THROTTLE PEDAL RETURN

92145-Y065

$7.53

92145B

SPRING,SHIFT

92145-Y073

$4.03

92152

COLLAR,SHIFT PIVOT

92152-Y062

$1.57

92152A

COLLAR,SHIFT PIVOT

92152-Y063

$14.59

92152B

COLLAR

92152-Y065

$1.57

92153

BOLT,FLANGE,8X20

92153-Y033

$1.47

92154

BOLT,FLANGE,6X25

92154-Y130

$0.68

92154A

BOLT,SOCKET,5X12

92154-Y176

$3.75

92154B

BOLT,FLANGE,8X25

92154-Y195

$3.75

92154C

BOLT,FLANGE,12X80

92154-Y200

$10.28

92200

WASHER,8MM

92200-Y044

$0.96

92200A

WASHER,12MM

92200-Y091

$1.97

92210

NUT,HEX,6MM

92210-Y074

$2.60

92210A

NUT,FLANGE,12MM

92210-Y090

$8.81
