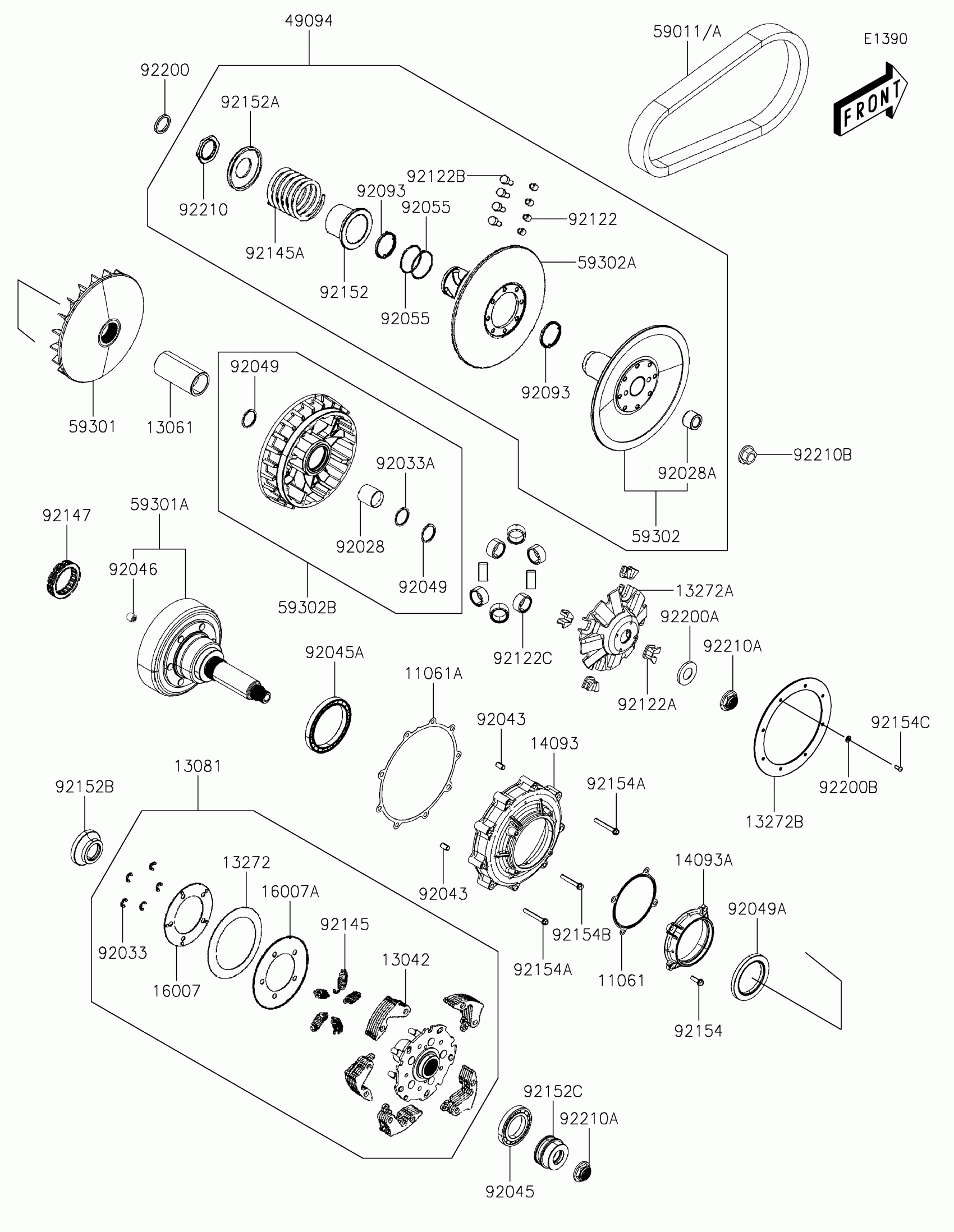

Kawasaki MULE PRO-MX™ EPS CAMO Belt Converter(DKF) Diagram

#

Description
Price

11061

GASKET,PRIMARY SHAFT COVER

11061-Y059

$6.14

11061A

GASKET,CLUTCH COVER

11061-Y060

$18.38

13042

WEIGHT,CLUTCH

13042-Y008

$42.36

13061

BOSS,DRIVE FACE

13061-Y004

$42.08

13081

CLUTCH-ASSY,PRIMARY

13081-Y001

$361.47

13272

PLATE,ADJUSTER SPRING

13272-Y027

$15.03

13272A

PLATE,RAMP

13272-Y028

$49.35

13272B

PLATE

13272-Y039

$19.93

14093

COVER,CLUTCH

14093-Y004

$70.09

14093A

COVER,PRIMARY SHAFT

14093-Y005

$24.14

16007

SEAT-SPRING

16007-Y007

$15.03

16007A

SEAT-SPRING

16007-Y008

$15.93

49094

CONVERTER-ASSY-DRIVEN

49094-Y007

$438.73

59011

BELT,DRIVE(STD)

59011-Y006

$130.61

59011A

BELT,DRIVE(OPTION)

59011-Y010

$178.74

59301

SHEAVE-MOVABLE

59301-Y006

$71.97

59301A

SHEAVE-MOVABLE,PRIMARY DRIVE

59301-Y007

$277.17

59302

SHEAVE-COMP,MOVABLE

59302-Y017

$261.74

59302A

SHEAVE-COMP

59302-Y018

$220.69

59302B

SHEAVE-COMP

59302-Y019

$138.95

92028

BUSHING,42X47X45.6

92028-Y002

$10.66

92028A

BUSHING

92028-Y003

$20.08

92033

RING-SNAP,7MM

92033-Y042

$2.10

92033A

RING-SNAP,46.5MM

92033-Y043

$2.98

92043

PIN,8X14

92043-Y012

$1.36

92045

BEARING-BALL,16008

92045-Y046

$41.27

92045A

BEARING-BALL,6815

92045-Y052

$204.85

92046

BEARING-NEEDLE,14X22X20

92046-Y010

$54.75

92049

SEAL-OIL,42X51X4

92049-Y043

$14.80

92049A

SEAL-OIL,6.5X80X7

92049-Y047

$20.51

92055

RING-O

92055-Y065

$6.25

92093

SEAL,DRIVEN FACE,40.2X47X4

92093-Y045

$8.92

92122

ROLLER,GUIDE

92122-Y008

$5.39

92122A

ROLLER

92122-Y018

$3.77

92122B

ROLLER,GUIDE

92122-Y020

$10.34

92122C

ROLLER,COMP,WEIGHT

92122-Y022

$13.08

92145

SPRING,CLUTCH

92145-Y058

$9.73

92145A

SPRING,DRIVEN FACE

92145-Y059

$29.22

92147

BEARING,ONE WAY

92147-Y001

$154.44

92152

COLLAR,SEAL

92152-Y058

$19.93

92152A

COLLAR,SPRING

92152-Y059

$20.08

92152B

COLLAR,CLUTCH

92152-Y069

$50.97

92152C

COLLAR,PRIMARY DRIVE SHAFT

92152-Y070

$36.34

92154

BOLT,FLANGE,6X18

92154-Y132

$2.14

92154A

BOLT,FLANGE,6X45

92154-Y135

$4.44

92154B

BOLT,FLANGE,6X40

92154-Y209

$5.98

92154C

BOLT,4X12

92154-Y224

$5.85

92200

WASHER,25X33X4

92200-Y073

$5.69

92200A

WASHER,THRUST,20MM

92200-Y087

$15.31

92200B

WASHER

92200-Y103

$4.75

92210

NUT,SPECIAL,36MM

92210-Y082

$10.59

92210A

NUT,FLANGE,20MM

92210-Y083

$21.31

92210B

NUT

92210-Y085

$21.31
