Description

Price

11061

GASKET,CRANK CASE COVER,RH

11061-Y055

$36.85

13061

BOSS,RACHET

13061-Y005

$47.65

14075

CAP-ASSY

14075-Y006

$27.42

14093

COVER,CRANK CASE,RH

14093-Y002

$146.68

16142

COVER-PUMP,WATER

16142-Y002

$33.67

39062

HOSE-COOLING

39062-Y013

$165.13

39062A

HOSE-COOLING

39062-Y014

$162.51

39062B

HOSE-COOLING

39062-Y015

$85.11

39062C

HOSE-COOLING

39062-Y018

$46.53

39062D

HOSE-COOLING

39062-Y021

$26.05

39067

COOLER-OIL

39067-Y001

$311.05

42034

COUPLING,OIL COOLER

42034-Y002

$24.57

43058

RING,OIL PATH

43058-Y001

$34.24

49044

PUMP-WATER

49044-Y002

$49.00

49063

SEAL-MECHANICAL

49063-Y003

$64.69

92033

RING-SNAP

92033-Y027

$3.49

92033A

RING-SNAP

92033-Y028

$1.71

92043

PIN,8X14

92043-Y012

$1.88

92045

BEARING-BALL,6906

92045-Y044

$45.89

92049

SEAL-OIL,14X24X5

92049-0824

$2.75

92055

RING-O,13.8X2.5

92055-Y023

$2.28

92055A

RING-O,WATER PUMP

92055-Y058

$18.24

92055B

RING-O,17.8X2.4

92055-Y064

$3.41

92066

PLUG,COVER

92066-Y009

$4.27

92154

BOLT,SEALING,12MM

92154-Y009

$5.94

92154A

BOLT,FLANGE,6X25

92154-Y066

$2.39

92154B

BOLT,FLANGE,6X32

92154-Y128

$2.60

92154C

BOLT

92154-Y172

$11.10

92154D

BOLT

92154-Y173

$9.99

92154E

BOLT

92154-Y175

$18.30

92154F

BOLT,FLANGE,6X10

92154-Y208

$1.97

92154G

BOLT,FLANGE,6X40

92154-Y209

$6.91

92154H

BOLT,SOCKET,8X35

92154-Y211

$4.37

92173

CLAMP,28.6MM

92173-1205

$4.92

92173A

CLAMP

92173-1892

$3.21

92173B

CLAMP

92173-1894

$2.75

92173C

CLAMP

92173-Y002

$2.28

92173D

CLAMP

92173-Y068

$7.51

92173E

CLAMP

92173-Y076

$5.66

92200

WASHER,6MM

92200-Y024

$0.96

92200A

WASHER,14X28X2

92200-Y026

$2.53

92200B

WASHER,21X13.8X1.5

92200-Y050

$2.60

92200C

WASHER,14MM

92200-Y051

$1.71

92200D

WASHER

92200-Y074

$3.75

92200E

WASHER

92200-Y076

$5.66

92210

NUT,FLANGE,14MM

92210-Y038

$3.71

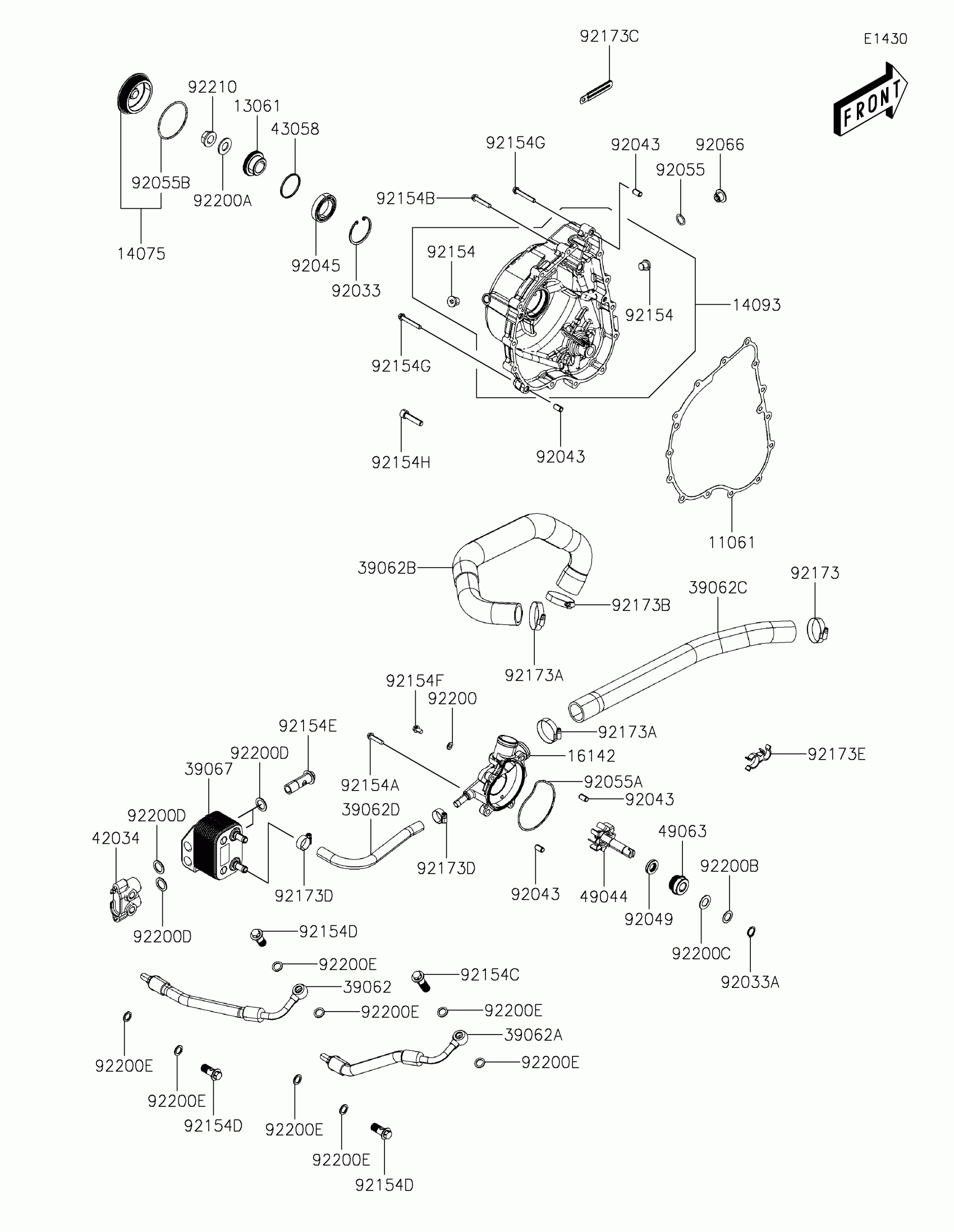

Kawasaki MULE PRO-MX™ Engine Cover(s) Diagram

GASKET,CRANK CASE COVER,RH

BOSS,RACHET

CAP-ASSY

COVER,CRANK CASE,RH

COVER-PUMP,WATER

HOSE-COOLING

HOSE-COOLING

HOSE-COOLING

HOSE-COOLING

HOSE-COOLING

COOLER-OIL

COUPLING,OIL COOLER

RING,OIL PATH

PUMP-WATER

SEAL-MECHANICAL

RING-SNAP

RING-SNAP

PIN,8X14

BEARING-BALL,6906

SEAL-OIL,14X24X5

RING-O,13.8X2.5

RING-O,WATER PUMP

RING-O,17.8X2.4

PLUG,COVER

BOLT,SEALING,12MM

BOLT,FLANGE,6X25

BOLT,FLANGE,6X32

BOLT

BOLT

BOLT

BOLT,FLANGE,6X10

BOLT,FLANGE,6X40

BOLT,SOCKET,8X35

CLAMP,28.6MM

CLAMP

CLAMP

CLAMP

CLAMP

CLAMP

WASHER,6MM

WASHER,14X28X2

WASHER,21X13.8X1.5

WASHER,14MM

WASHER

WASHER

NUT,FLANGE,14MM
