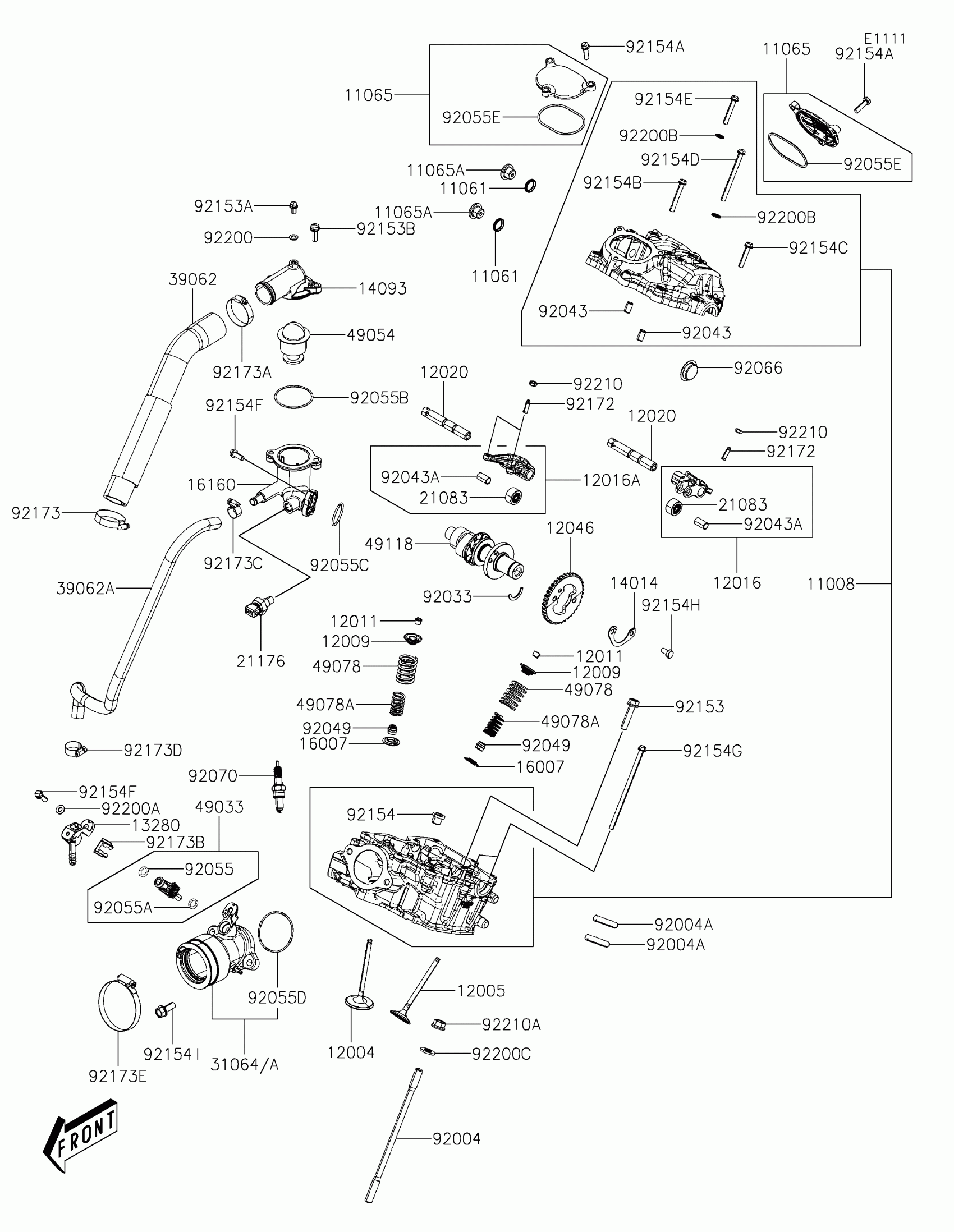

Kawasaki MULE PRO-MX™ Cylinder Head Diagram

#

Description
Price

11008

HEAD-COMP-CYLINDER

11008-Y008

$498.59

11061

GASKET

11061-Y064

$3.92

11065

CAP

11065-Y035

$29.15

11065A

CAP

11065-Y041

$12.96

12004

VALVE-INTAKE

12004-Y007

$45.59

12005

VALVE-EXHAUST

12005-Y006

$58.80

12009

RETAINER-VALVE SPRING

12009-Y003

$20.86

12011

COLLET

12011-Y003

$5.28

12016

ARM-ROCKER,EXHAUST

12016-Y008

$69.55

12016A

ARM-ROCKER,INTAKE

12016-Y009

$71.07

12020

SHAFT-ROCKER

12020-Y009

$53.04

12046

SPROCKET,CAMSHAFT

12046-Y005

$45.18

13280

HOLDER

13280-Y020

$33.94

14014

PLATE-POSITION

14014-Y001

$3.69

14093

COVER,THERMOSTAT

14093-Y006

$18.11

16007

SEAT-SPRING

16007-Y006

$14.22

16160

BODY,THERMOSTAT

16160-Y005

$45.59

21083

ARM,ROCKER

21083-Y004

$48.65

21176

SENSOR,WATER TEMP

21176-Y011

$49.28

39062

HOSE-COOLING,ENGINE-PIPE

39062-Y019

$47.76

39062A

HOSE-COOLING,THRO

39062-Y020

$80.28

49033

NOZZLE-INJECTION

49033-Y003

$161.50

49054

THERMOSTAT

49054-Y004

$56.50

49078

SPRING-ENGINE VALVE,OUTER

49078-Y009

$15.37

49078A

SPRING-ENGINE VALVE,INNER

49078-Y010

$6.87

49118

CAMSHAFT-COMP

49118-Y006

$311.94

92004

STUD

92004-Y017

$26.15

92004A

STUD,8X38

92004-Y018

$5.66

92033

RING-SNAP

92033-Y030

$1.40

92043

PIN,8X14

92043-Y012

$1.88

92043A

PIN,ROCKER ARM

92043-Y038

$23.11

92049

SEAL-OIL

92049-Y042

$9.43

92055

RING-O,BLACK

92055-Y053

$12.82

92055A

RING-O,GREEN

92055-Y054

$12.82

92055B

RING-O,48.3X2

92055-Y059

$4.77

92055C

RING-O,28.8X2.4

92055-Y060

$12.49

92055D

RING-O

92055-Y062

$12.49

92055E

RING-O

92055-Y063

$12.49

92066

PLUG

92066-Y018

$24.32

92070

PLUG-SPARK,CR7E

92070-Y004

$8.25

92153

BOLT,FLANGE,8X35

92153-Y034

$2.21

92153A

BOLT,FLANGE,6X10

92153-Y045

$0.97

92153B

BOLT,FLANGE,6X20

92153-Y049

$0.85

92154

BOLT,SEALING,12MM

92154-Y009

$5.94

92154A

BOLT,6X20

92154-Y057

$1.71

92154B

BOLT,FLANGE,6X35

92154-Y069

$2.39

92154C

BOLT,FLANGE,6X30

92154-Y107

$0.69

92154D

BOLT,FLANGE,6X70

92154-Y108

$5.03

92154E

BOLT,FLANGE,6X32

92154-Y128

$2.60

92154F

BOLT,FLANGE,6X16

92154-Y134

$2.60

92154G

BOLT,FLANGE,6X120

92154-Y159

$5.03

92154H

BOLT,HEX,6X12

92154-Y189

$2.37

92154I

BOLT,FLANGE,8X25

92154-Y195

$3.75

92172

SCREW

92172-Y081

$16.19

92173

CLAMP,28.6MM

92173-1205

$4.92

92173A

CLAMP

92173-1894

$2.75

92173B

CLAMP,INJECTOR

92173-Y053

$6.47

92173C

CLAMP

92173-Y067

$6.91

92173D

CLAMP

92173-Y068

$7.51

92173E

CLAMP

92173-Y075

$20.62

92200

WASHER,6MM

92200-Y024

$0.96

92200A

WASHER,6MM

92200-Y042

$0.96

92200B

WASHER

92200-Y084

$2.37

92200C

WASHER,21X10X2.2

92200-Y088

$3.75

92210

NUT

92210-Y004

$1.46

92210A

NUT,FLANGE,10MM

92210-Y058

$4.14
