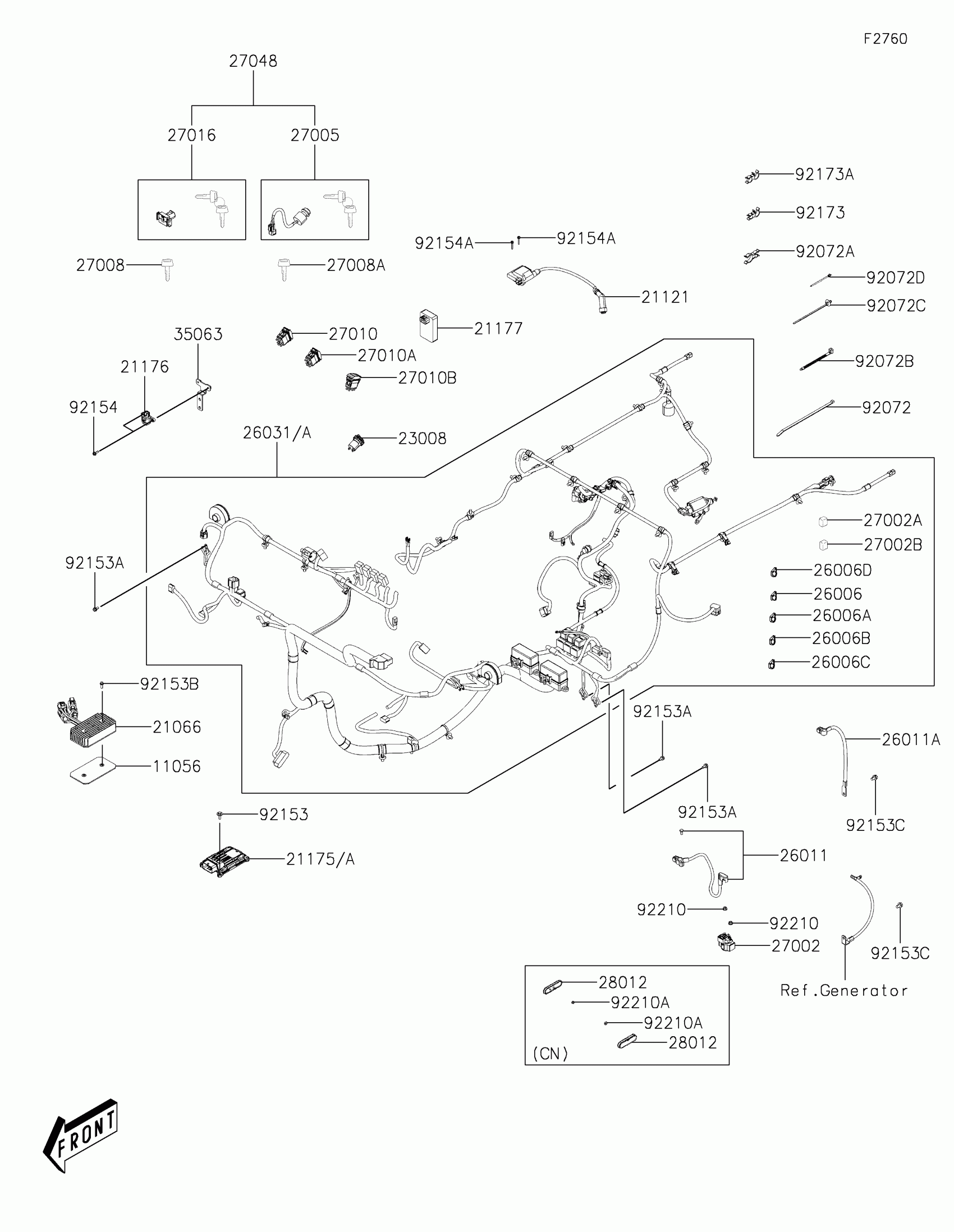

Kawasaki MULE PRO-MX™ Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,REGULATOR

11056-Y016

$15.30

21066

REGULATOR-VOLTAGE

21066-Y004

$210.24

21121

COIL-IGNITION

21121-Y002

$166.99

21176

SENSOR,VEHICLE-DOWN

21176-Y008

$141.26

21177

CONTROLLER,DIFF SOLENOID

21177-Y004

$211.81

23008

SOCKET-ASSY,DC12V

23008-Y006

$27.85

26006

FUSE,10A

26006-Y007

$7.09

26006A

FUSE,20A

26006-Y008

$7.09

26006B

FUSE,30A

26006-Y009

$7.09

26006C

FUSE,40A

26006-Y010

$7.09

26006D

FUSE,60A

26006-Y011

$7.09

26011

WIRE-LEAD,BATTERY

26011-Y011

$65.86

26011A

WIRE-LEAD,BATTERY,EARTH

26011-Y012

$55.32

27002

RELAY-ASSY,START

27002-Y009

$51.21

27002A

RELAY-ASSY

27002-Y010

$44.80

27002B

RELAY-ASSY

27002-Y012

$65.14

27005

SWITCH-ASSY-IGNITION

27005-Y006

$59.34

27008

KEY-LOCK,BLANK,RH CUTTING

27008-Y008

$18.69

27008A

KEY-LOCK,BLANK,LH CUTTING

27008-Y009

$18.69

27010

SWITCH,HEAD LAMP

27010-0750

$62.98

27010A

SWITCH,2WD/4WD

27010-0751

$28.05

27010B

SWITCH,DIFF LOCK

27010-0912

$78.55

27016

LOCK-ASSY,INNER BOX

27016-Y003

$28.37

27048

SWITCH-ASSY

27048-Y001

$70.00

35063

STAY

35063-Y038

$12.73

92072

BAND

92072-Y011

$1.15

92072A

BAND,HARNESS

92072-Y015

$2.18

92072B

BAND

92072-Y017

$2.18

92072C

BAND

92072-Y020

$5.66

92072D

BAND

92072-Y021

$5.66

92153

BOLT,6X20

92153-Y019

$1.30

92153A

BOLT,FLANGE,6X12

92153-Y023

$0.76

92153B

BOLT,FLANGE,6X16

92153-Y025

$0.76

92153C

BOLT,FLANGE,8X12

92153-Y031

$1.90

92154

BOLT,5X16

92154-Y085

$2.39

92154A

BOLT,4X25

92154-Y190

$6.91

92173

CLAMP,D18-D11

92173-Y046

$2.46

92173A

CLAMP

92173-Y077

$3.60

92210

NUT,6MM

92210-Y027

$0.79
