2016 Kawasaki Mule PRO-FXT™ Rear Suspension Diagram

← All diagrams

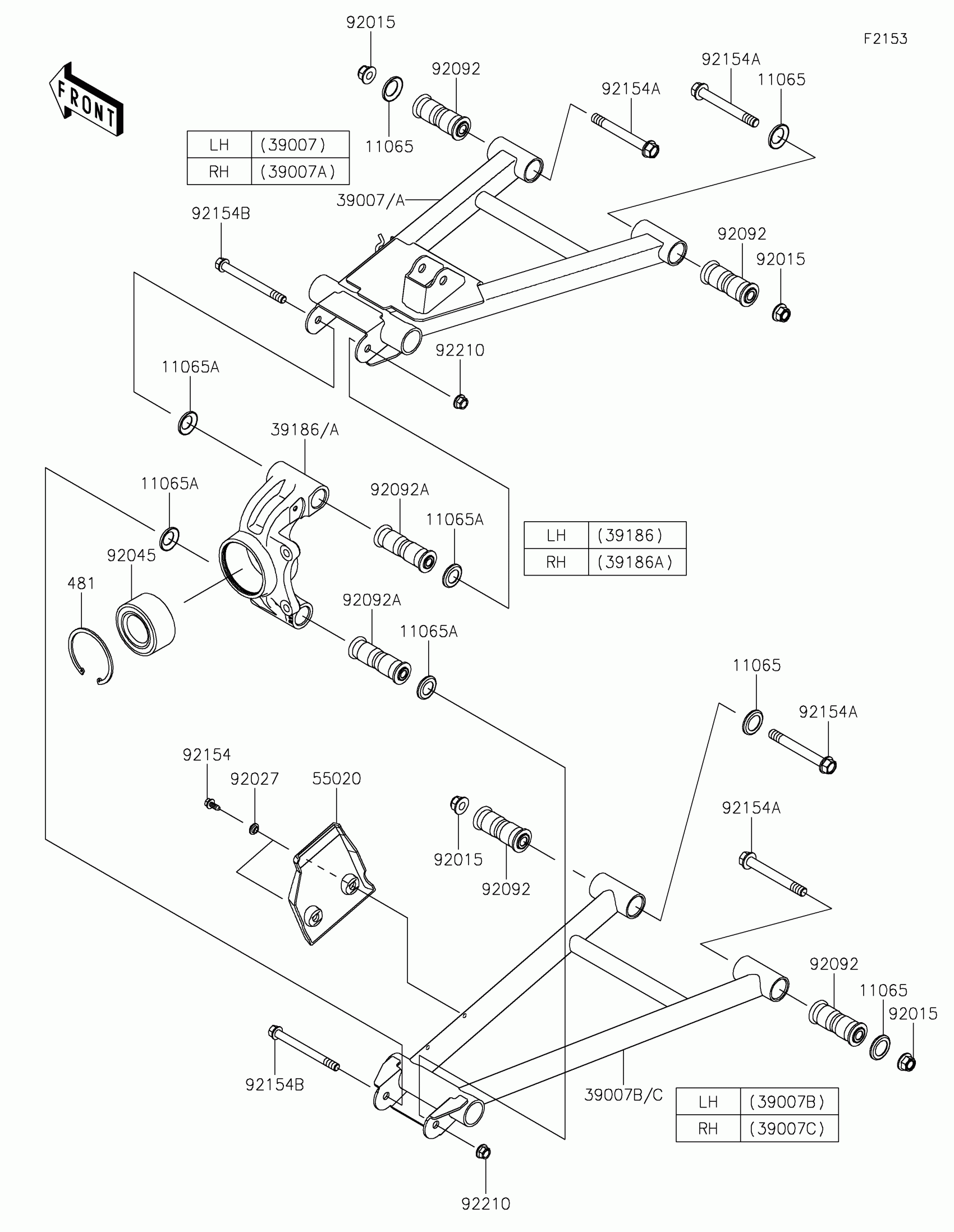

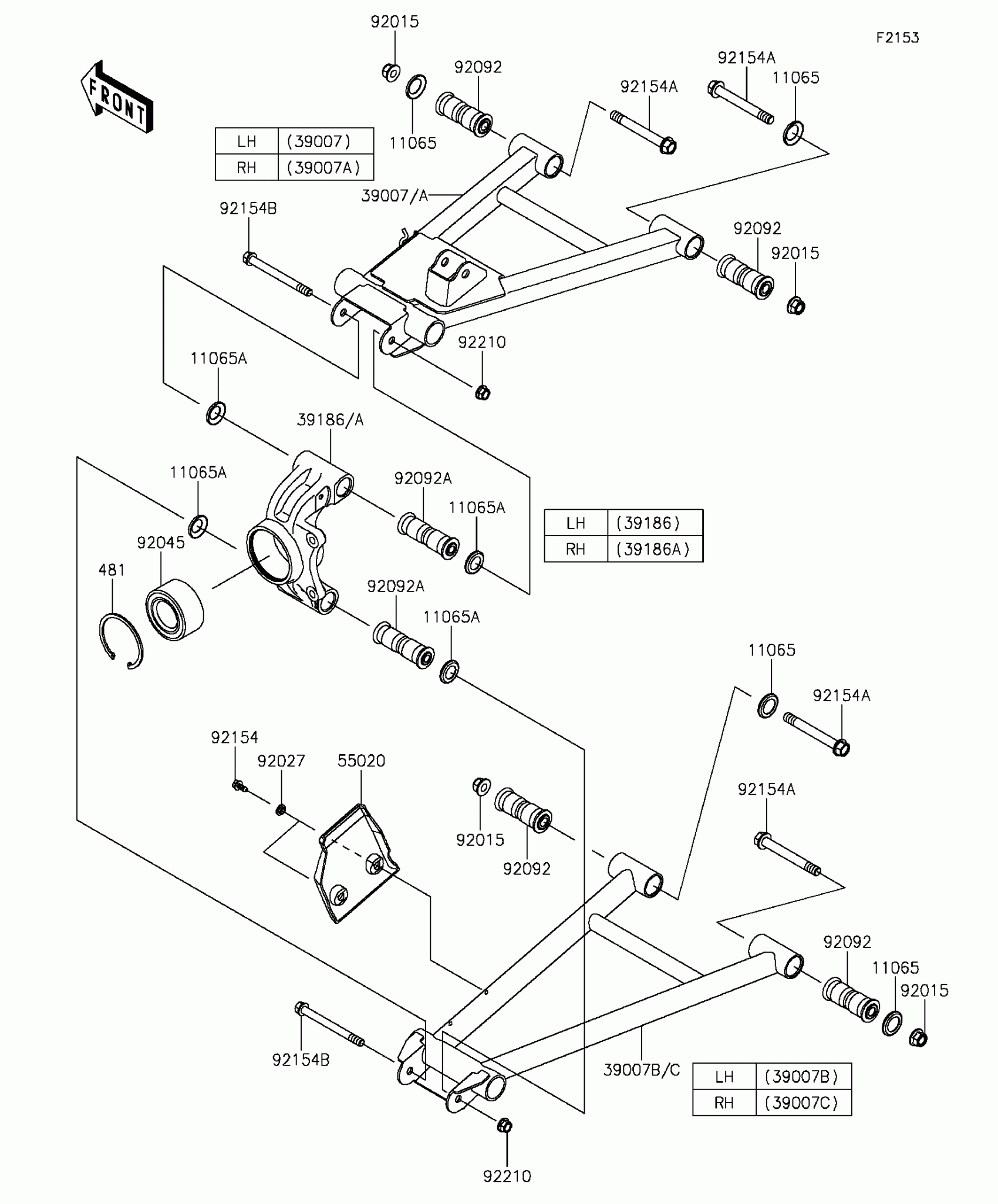

Find the part on the Rear Suspension diagram for your 2016 Kawasaki Mule PRO-FXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-FXT™ Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,ARM

11065-0838

1

$3.08

In stock

11065A

CAP

11065-0849

1

$3.08

In stock

39007

ARM-SUSP,RR,UPP,LH

39007-0379

1

$131.82

In stock

39007A

ARM-SUSP,RR,UPP,RH

39007-0380

1

$219.53

In stock

39007B

ARM-SUSP,RR,LWR,LH

39007-0381

1

$135.48

In stock

39007C

ARM-SUSP,RR,LWR,RH

39007-0382

1

$135.48

In stock

39186

KNUCKLE,RR,LH

39186-0317

1

$194.07

In stock

39186A

KNUCKLE,RR,RH

39186-0318

1

$194.07

In stock

481

CIRCLIP-TYPE-C

481J7500

1

$4.35

In stock

55020

GUARD,RR CVJ

55020-0931

1

$10.90

In stock

92015

1

$7.04

In stock

92027

COLLAR,L=4.6

92027-1168

1

$3.97

In stock

92045

1

$58.44

In stock

92092

1

$20.18

In stock

92092A

1

$19.45

In stock

92154

BOLT,6X15.6

92154-1250

1

$0.83

In stock

92154A

BOLT,FLANGED,12X100

92154-1318

1

$6.04

In stock

92154B

BOLT,FLANGED,10X110

92154-1353

1

$3.90

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock
