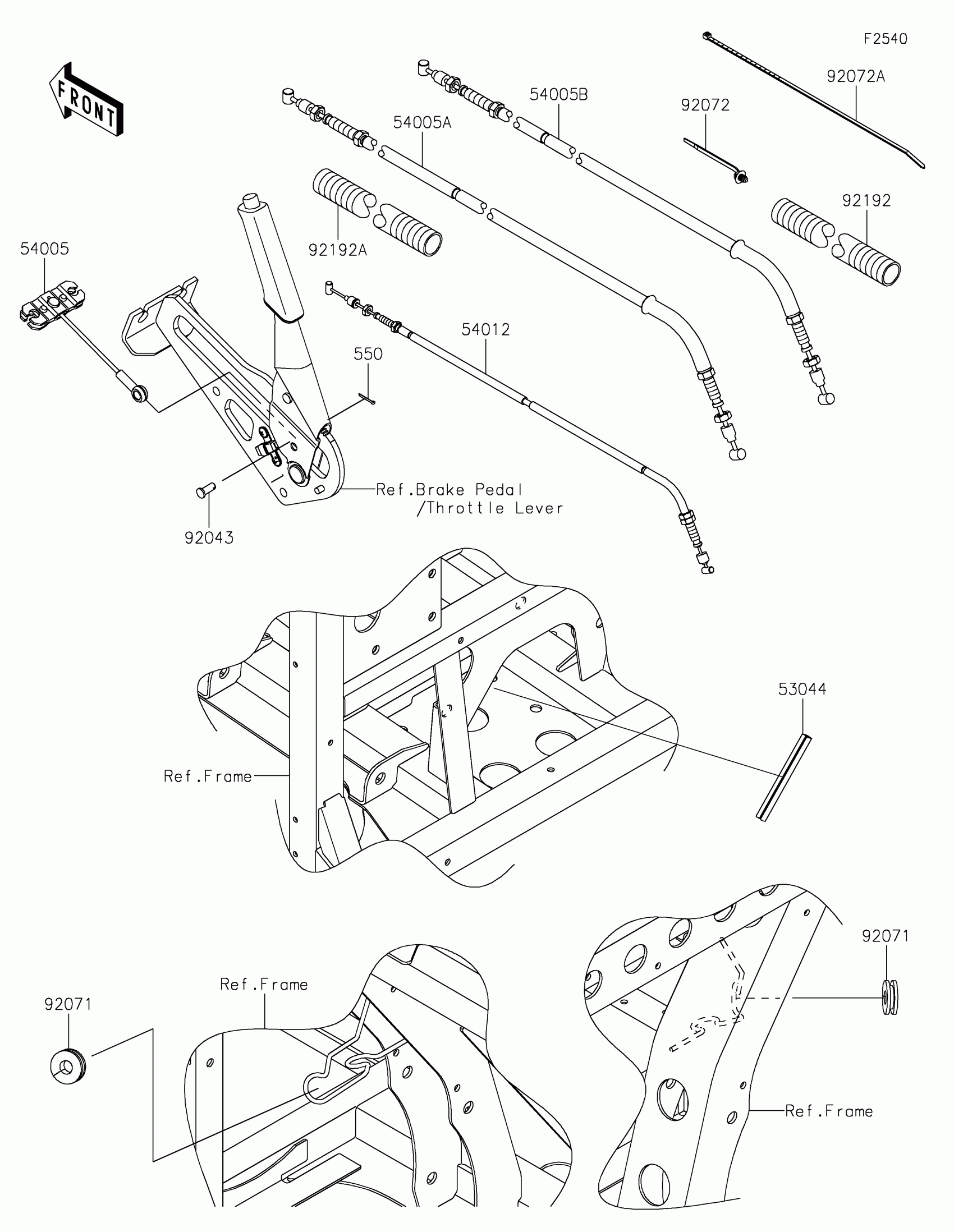

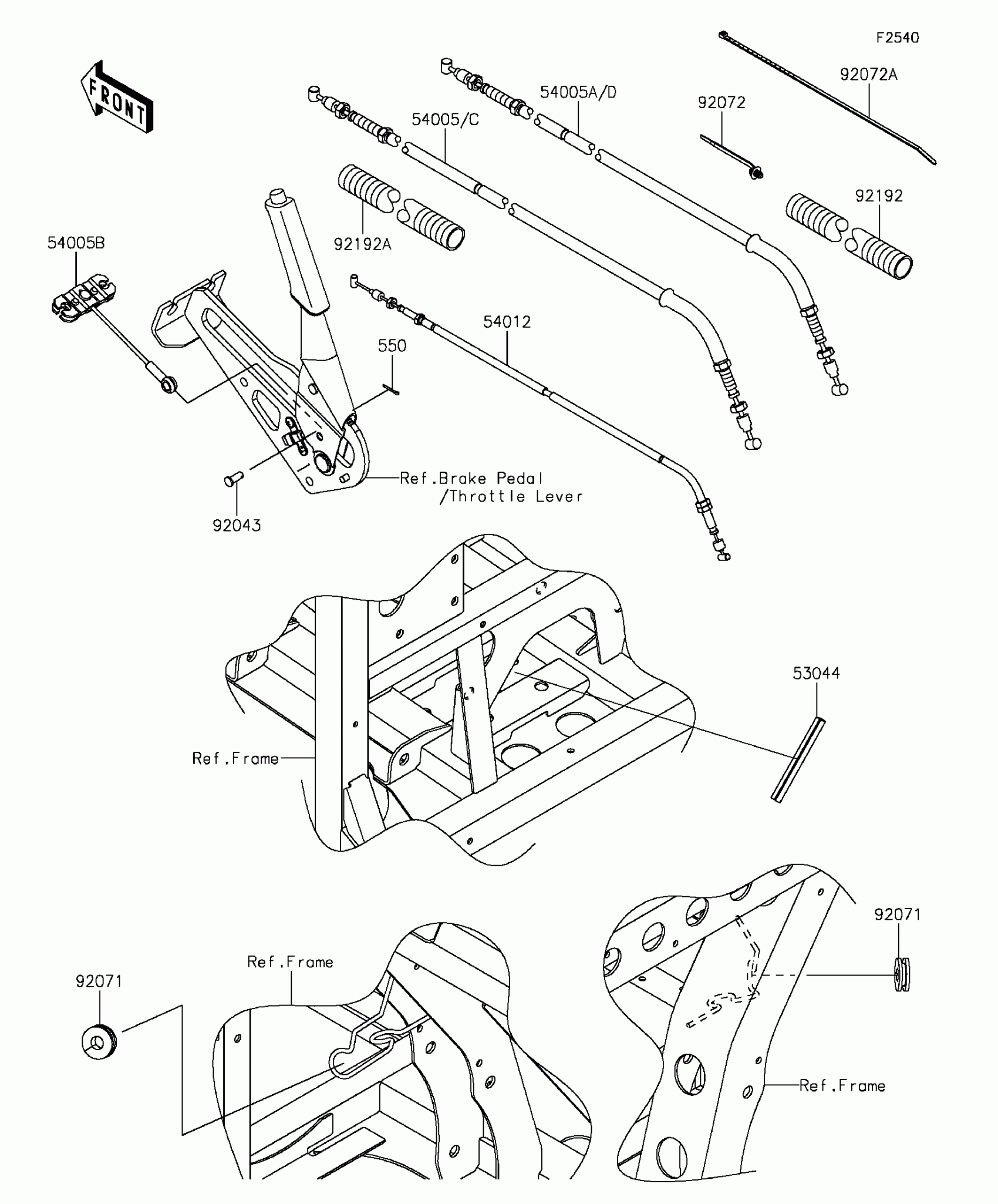

Kawasaki MULE PRO-FXT™ Cables Diagram

Description

Price

53044

TRIM,L=111

53044-7502

$5.86

54005B

CABLE-BRAKE,PARKING,FR

54005-0035

$19.98

54005C

CABLE-BRAKE,PARKING,LH

54005-0039

$107.36

54005D

CABLE-BRAKE,PARKING,RH

54005-0040

$98.32

54012

CABLE-THROTTLE

54012-0639

$58.02

550

PIN-COTTER,2.5X18

550AA2518

$0.61

92043

92043-1039

$7.54

92071

GROMMET

92071-0029

$1.46

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072A

BAND,L=292.1

92072-3509

Unavailable

92192

TUBE,CONVOLUTED,25.1X30X260

92192-1363

$3.32

92192A

TUBE,CONVOLUTED,25.1X30X210

92192-1391

$3.19
