2016 Kawasaki Mule Pro-FXT™ Ranch Edition Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2016 Kawasaki Mule Pro-FXT™ Ranch Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

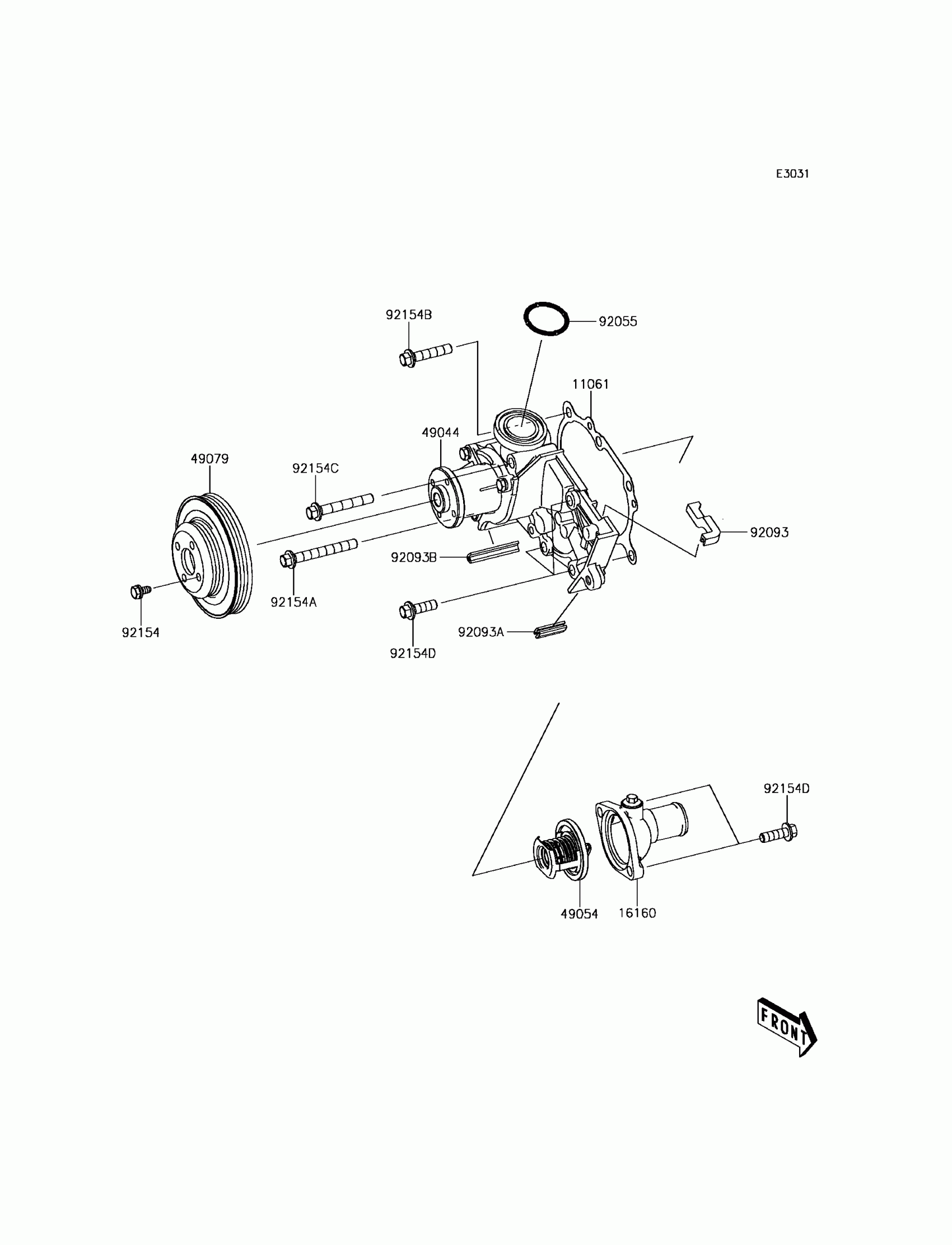

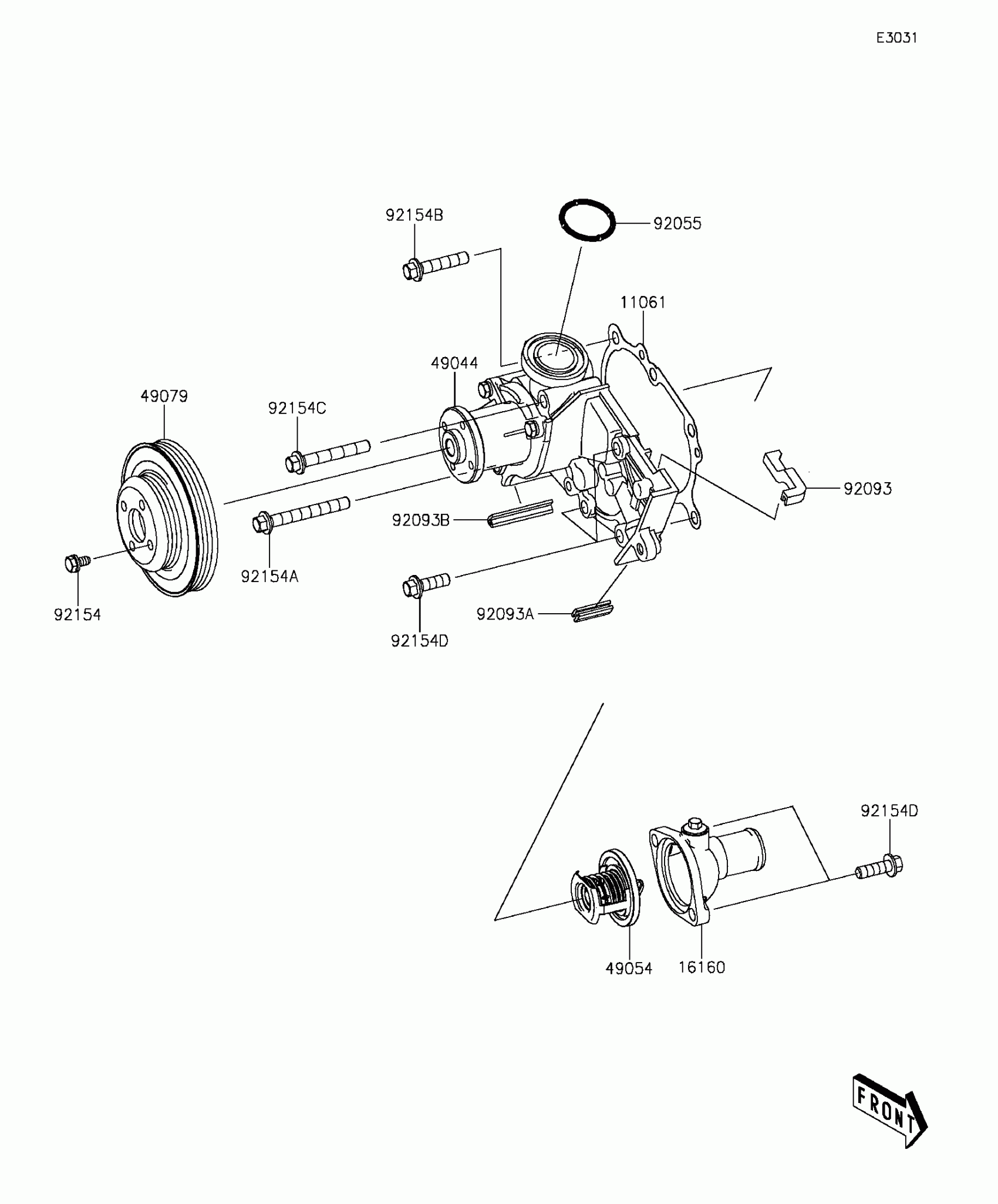

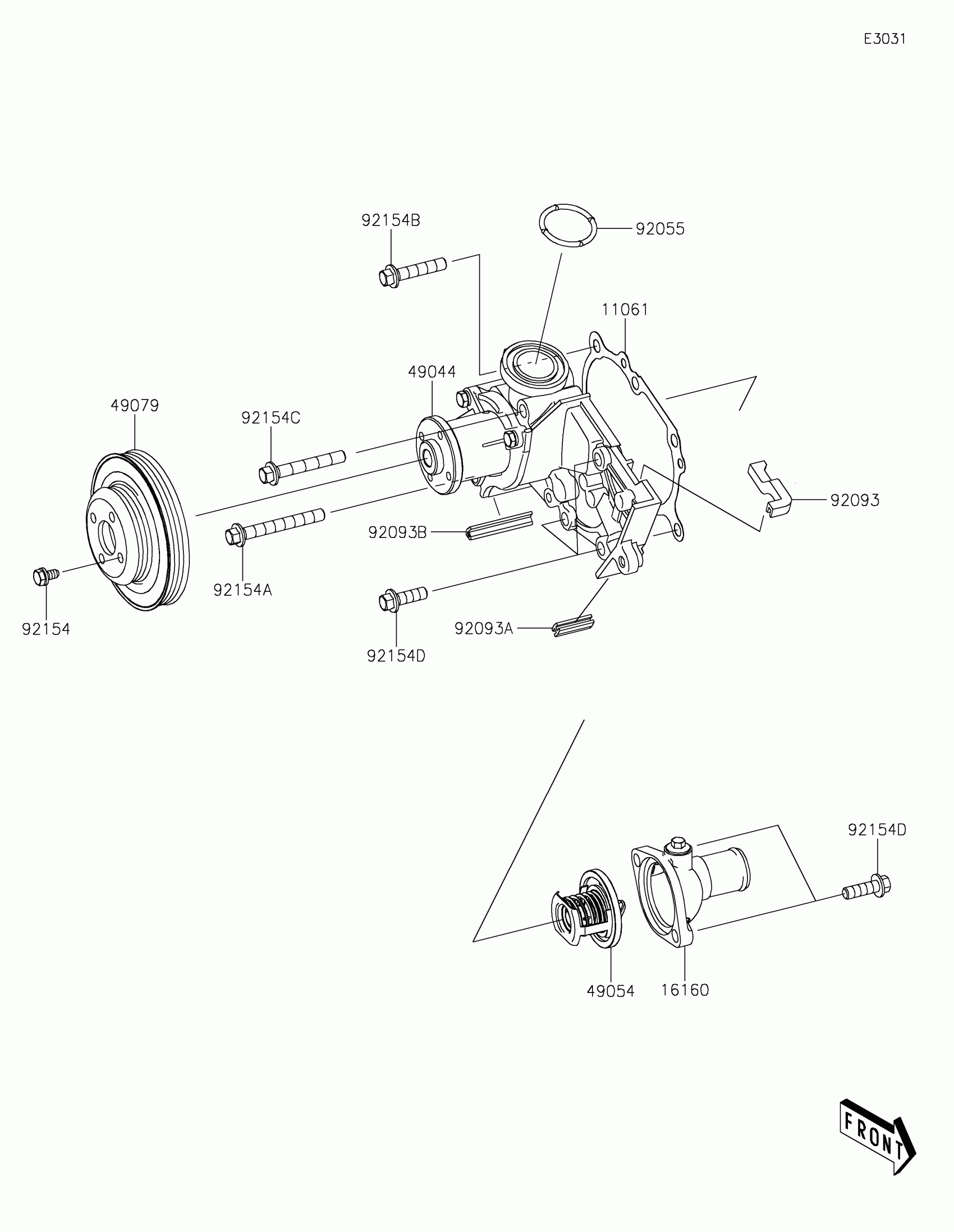

2016 Kawasaki Mule Pro-FXT™ Ranch Edition Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,WATER PUMP

11061-0955

1

$5.78

In stock

16160

1

$20.02

In stock

49044

PUMP-WATER

49044-0014

1

$127.07

In stock

49054

THERMOSTAT

49054-0007

1

$14.22

In stock

49079

PULLEY-BELT

49079-0022

1

$54.99

In stock

92055

RING-O

92055-0825

1

$2.29

In stock

92093

SEAL

92093-0638

1

$1.07

In stock

92093A

SEAL

92093-0639

1

$0.80

In stock

92093B

SEAL

92093-0640

1

$1.19

In stock

92154

BOLT,6X12

92154-1598

1

$1.19

In stock

92154A

BOLT,FLANGED,8X65

92154-1599

1

$2.19

In stock

92154B

BOLT,FLANGED,8X40

92154-1600

1

$1.56

In stock

92154C

BOLT,FLANGED,8X55

92154-1601

1

$1.88

In stock

92154D

BOLT,FLANGED,8X25

92154-1602

1

$1.02

In stock
