Description

Price

12004

VALVE-INTAKE

12004-0732

$21.68

12005

VALVE-EXHAUST

12005-0749

$9.69

12009

RETAINER-VALVE SPRING

12009-0027

$1.39

12011

COLLET

12011-0003

$0.80

12032

TAPPET

12032-0019

$8.76

13280

HOLDER

13280-0827

$5.76

14020

RETAINER

14020-0015

$2.59

16007

SEAT-SPRING

16007-0729

$0.61

16085

GEAR,INTAKE CAMSHAFT,MASTER

16085-0626

$68.04

16085A

GEAR,INTAKE CAMSHAFT,SUB

16085-0627

$122.64

16085B

GEAR,EXHAUST CAMSHAFT

16085-0628

$45.04

49078

SPRING-ENGINE VALVE

49078-0724

$5.25

49118

CAMSHAFT-COMP,INTAKE

49118-0836

$101.91

49118A

CAMSHAFT-COMP,EXHAUST

49118-0837

$95.70

92033

RING-SNAP

92033-0754

$1.54

92049

SEAL-OIL

92049-0776

$9.91

92049A

SEAL-OIL,AIR VALVE

92049-0777

$2.98

92066

PLUG

92066-0809

$2.08

92154

BOLT,SOCKET,6X20

92154-1619

$1.39

92180

SHIM,T=2.18

92180-0819

$3.81

92180A

SHIM,T=2.20

92180-0820

$3.81

92180B

SHIM,T=2.22

92180-0821

$3.81

92180C

SHIM,T=2.24

92180-0822

$3.81

92180D

SHIM,T=2.26

92180-0823

$3.81

92180E

SHIM,T=2.28

92180-0824

$3.81

92180F

SHIM,T=2.30

92180-0825

$3.81

92180G

SHIM,T=2.32

92180-0826

$3.81

92180H

SHIM,T=2.34

92180-0827

$3.81

92180I

SHIM,T=2.36

92180-0828

$3.81

92180J

SHIM,T=2.38

92180-0829

$3.81

92180K

SHIM,T=2.40

92180-0830

$3.81

92180L

SHIM,T=2.42

92180-0831

$3.81

92180M

SHIM,T=2.44

92180-0832

$3.81

92180N

SHIM,T=2.46

92180-0833

$3.81

92180O

SHIM,T=2.48

92180-0834

$3.81

92180P

SHIM,T=2.50

92180-0835

$3.81

92180Q

SHIM,T=2.52

92180-0836

$3.39

92180R

SHIM,T=2.54

92180-0837

$3.39

92180S

SHIM,T=2.56

92180-0838

$3.81

92180T

SHIM,T=2.58

92180-0839

$3.39

92180U

SHIM,T=2.60

92180-0840

$3.39

92180V

SHIM,T=2.62

92180-0841

$3.39

92180W

SHIM,T=2.64

92180-0842

$3.39

92180X

SHIM,T=2.66

92180-0843

$3.81

92180Y

SHIM,T=2.68

92180-0844

$3.81

92180Z

SHIM,T=2.70

92180-0845

$3.39

92181

SHIM,T=2.72

92180-0846

$3.39

92181A

SHIM,T=2.74

92180-0847

$3.39

92181B

SHIM,T=2.76

92180-0848

$3.39

92181C

SHIM,T=2.78

92180-0849

$3.39

92181D

SHIM,T=2.80

92180-0850

$3.39

92200

WASHER

92200-1684

$14.44

92200A

WASHER,SPRING

92200-1685

$1.92

92210

NUT

92210-0948

$2.59

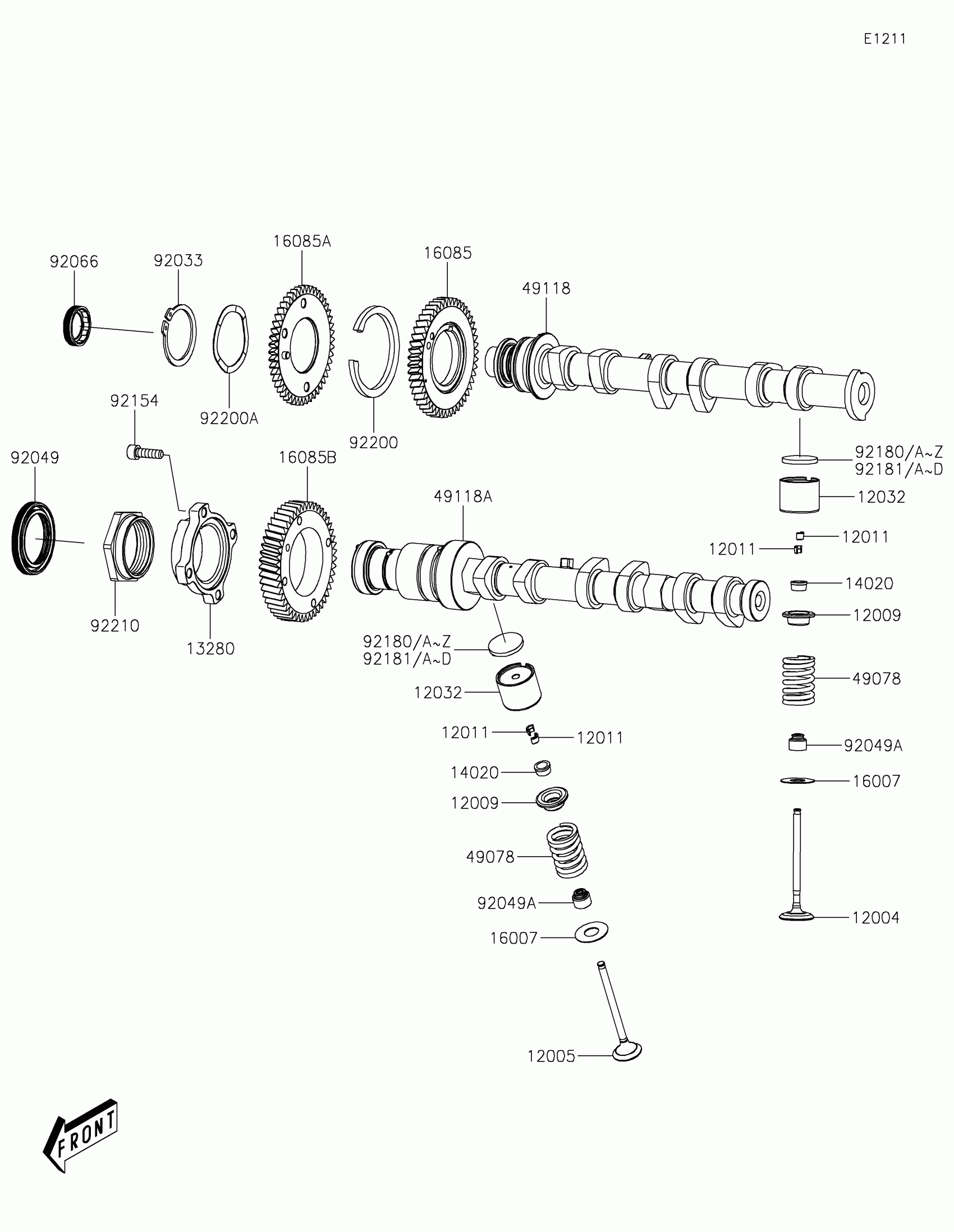

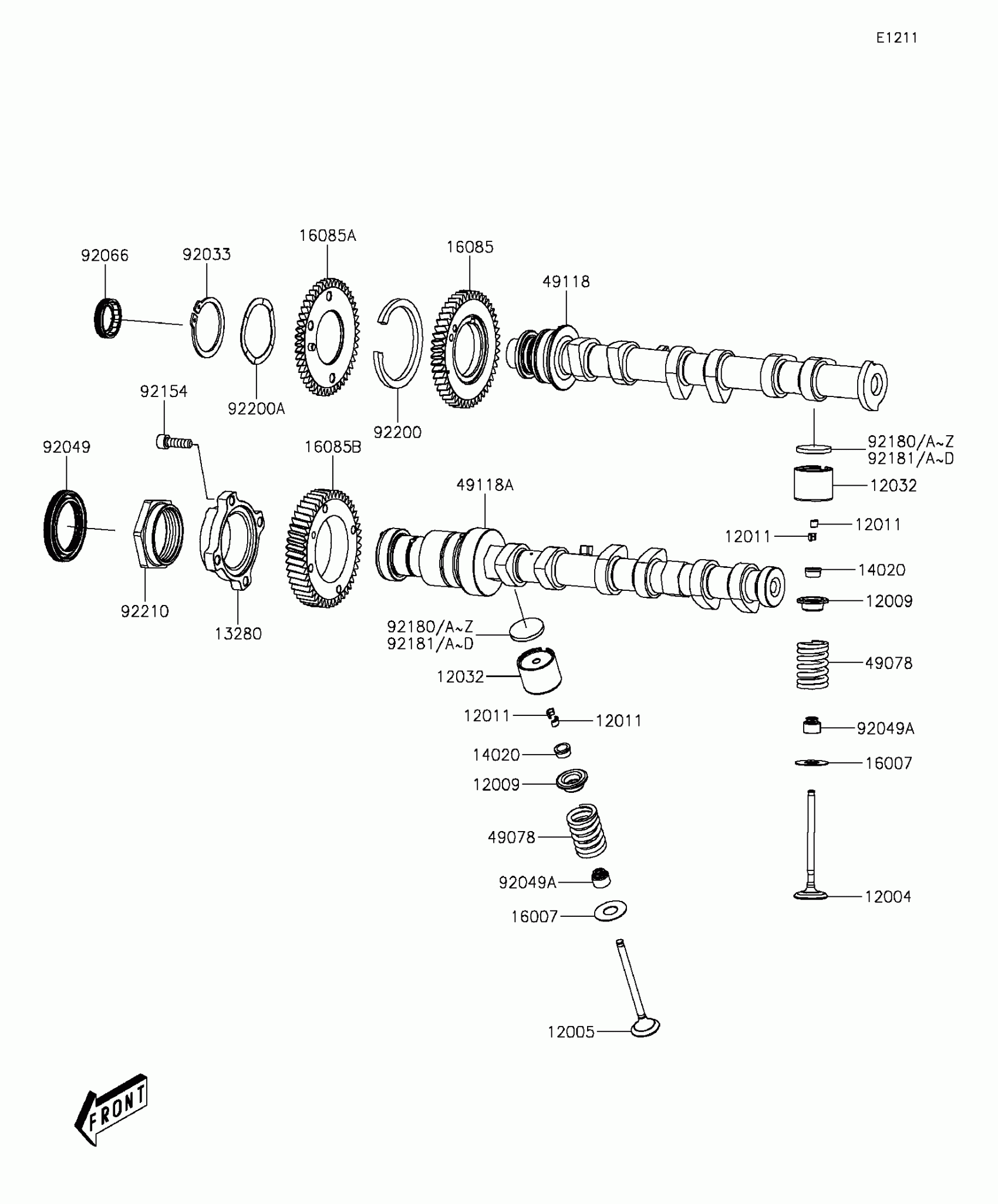

Kawasaki MULE PRO-FXT™ RANCH EDITION Valve(s)/Camshaft(s) Diagram
