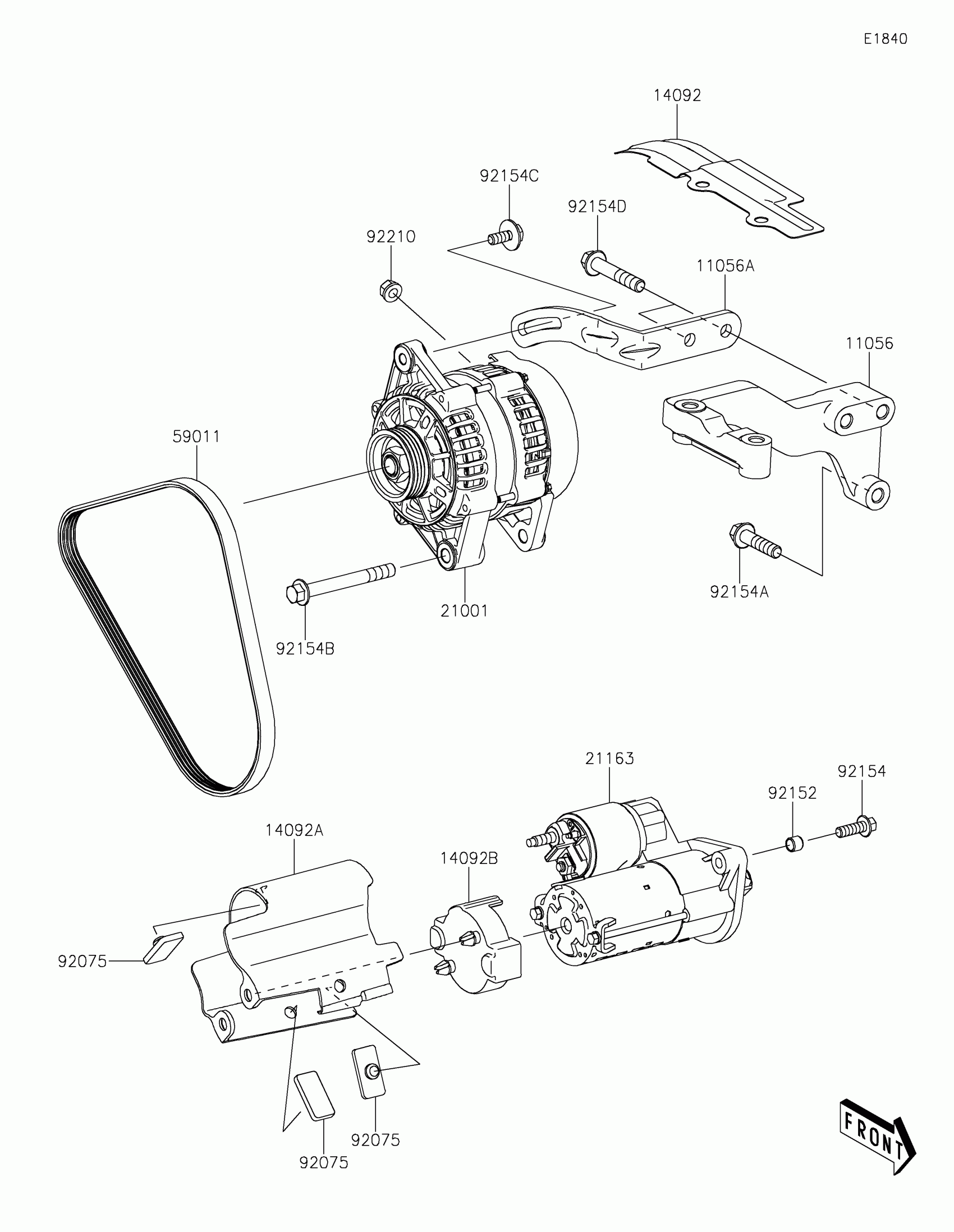

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Starter Motor Diagram

Description

Price

11056

BRACKET,SUSPENSION,RR

11056-7083

$51.50

11056A

BRACKET

11056-7084

$16.03

14092

COVER,ALTER BELT

14092-1198

$6.59

14092A

COVER,STARTER BODY

14092-1199

$7.85

14092B

COVER,STARTER END FACE

14092-1200

$4.53

21001

GENERATOR

21001-0606

$477.87

21163

STARTER-ELECTRIC

21163-0751

$309.86

59011

BELT

59011-0041

$9.65

92075

DAMPER

92075-1054

$3.81

92152

COLLAR

92152-1961

$1.33

92154

BOLT,FLANGED,8X25

92154-1602

$0.87

92154A

BOLT,FLANGED,10X40

92154-1604

$1.29

92154B

BOLT,FLANGED,10X90

92154-1605

$2.25

92154C

BOLT,8X20

92154-1606

$0.60

92154D

BOLT,FLANGED,10X55

92154-1607

$1.78

92210

NUT,6MM

92210-0960

$1.81
