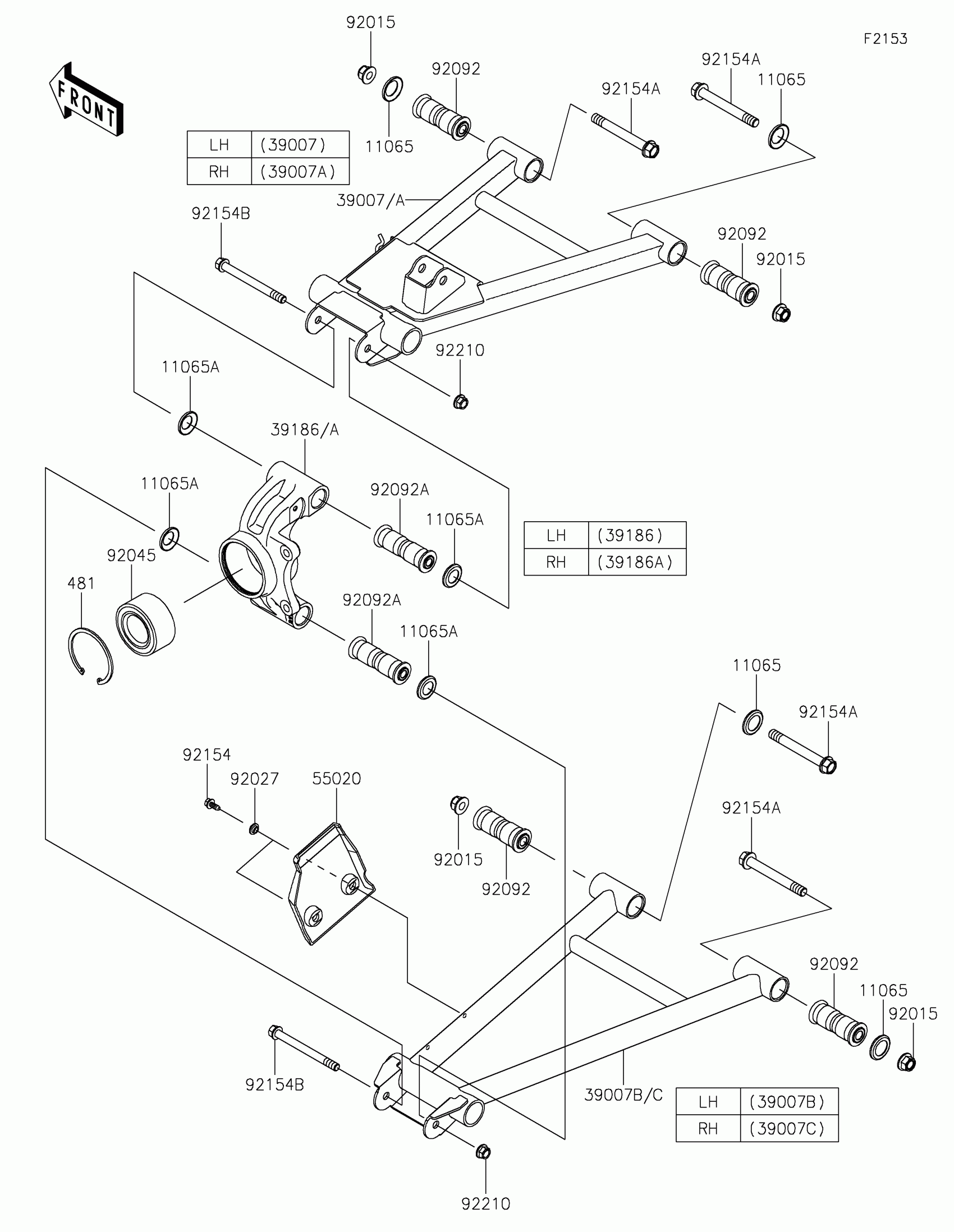

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Rear Suspension Diagram

Description

Price

11065

CAP,ARM

11065-0838

$3.87

11065A

CAP

11065-0849

$3.87

39007

ARM-SUSP,RR,UPP,LH

39007-0379

$134.78

39007A

ARM-SUSP,RR,UPP,RH

39007-0380

$134.78

39007B

ARM-SUSP,RR,LWR,LH

39007-0381

$132.85

39007C

ARM-SUSP,RR,LWR,RH

39007-0382

$132.85

39186

KNUCKLE,RR,LH

39186-0317

$190.27

39186A

KNUCKLE,RR,RH

39186-0318

$190.27

55020

GUARD,RR CVJ

55020-0931

$13.79

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92027

COLLAR,L=4.6

92027-1168

$5.00

92045

BEARING-BALL,40X74X36

92045-0763

$63.55

92092

BUSHING-RUBBER,12X20X78

92092-0028

$21.77

92092A

BUSHING-RUBBER,10.1X17X88

92092-0029

$20.99

92154

BOLT,6X15.6

92154-1250

$0.82

92154A

BOLT,FLANGED,12X100

92154-1318

$7.59

92154B

BOLT,FLANGED,10X110

92154-1353

$4.92

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

481

CIRCLIP-TYPE-C

481J7500

$5.48
