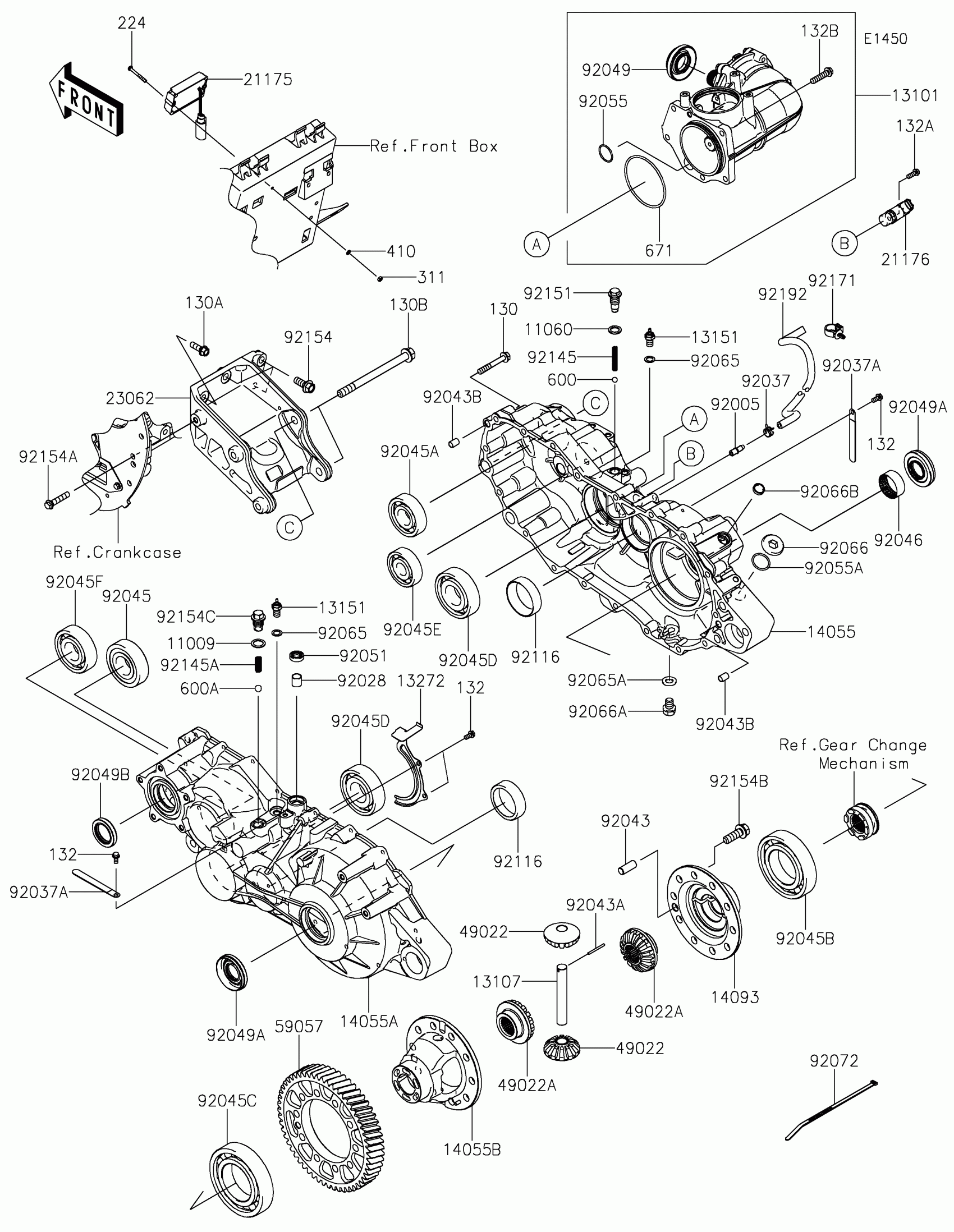

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Gear Box Diagram

#

Description
Price

11009

GASKET,15.5X22X1

11009-1008

$3.63

11060

GASKET,14X20X2

11060-1287

$3.50

13101

GEAR-ASSY,PARTICULAR

13101-0636

$1,290.53

13107

SHAFT

13107-0793

$28.79

13151

SWITCH-COMP,NEUTRAL

13151-1080

$10.38

13272

PLATE

13272-1624

$7.83

14055

CASE-GEAR,RH

14055-0607

$453.54

14055A

CASE-GEAR,LH

14055-0608

$379.53

14055B

CASE-GEAR,DIFF

14055-0614

$347.20

14093

COVER,DIFF

14093-0048

$111.97

21175

CONTROL UNIT-ELECTRONIC,DIFF

21175-0885

$122.75

21176

SENSOR,ROTATION

21176-0767

$65.52

23062

BRACKET-COMP

23062-0807

$193.85

49022

GEAR-BEVEL,PINION,12T

49022-0585

$75.96

49022A

GEAR-BEVEL,OUTPUT,16T

49022-0589

$153.75

59057

GEAR-HELICAL,55T

59057-0012

$270.93

92005

FITTING,BREATHER

92005-1127

$17.17

92028

BUSHING

92028-1347

$8.51

92037

CLAMP,TUBE

92037-1505

$4.76

92037A

CLAMP

92037-1993

$5.52

92043

PIN,DOWEL,12X30

92043-0789

$3.63

92043A

PIN,DOWEL

92043-0806

$1.08

92043B

PIN,DOWEL,10X14

92043-1037

$0.74

92045

BEARING-BALL,63/32

92045-0764

$42.72

92045A

BEARING-BALL,63/28

92045-0765

$27.59

92045B

BEARING-BALL,6212

92045-0766

$64.48

92045C

BEARING-BALL,6213

92045-0767

$77.04

92045D

BEARING-BALL,6307C3

92045-0768

$32.37

92045E

BEARING-BALL,B22-19C3 UR

92045-0769

$43.08

92045F

BEARING-BALL,63/32C3

92045-1364

$42.60

92046

BEARING-NEEDLE,BTM35.6

92046-0612

$15.45

92049

SEAL-OIL

92049-0160

$12.92

92049A

SEAL-OIL

92049-0749

$15.80

92049B

SEAL-OIL,TC32488

92049-1361

$6.82

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,1.9X26.2

92055-0782

$1.74

92055A

RING-O,25.7X2.4

92055-1136

$5.00

92065

GASKET,10.5X16X1

92065-058

$3.96

92065A

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,25X8

92066-0012

$11.70

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066B

PLUG

92066-7014

$1.72

92072

BAND,L=292.1

92072-3509

Unavailable

92116

BEARING-ROLLER,HR32206JA LC

92116-0015

$11.71

92145

SPRING

92145-1589

$3.91

92145A

SPRING

92145-1590

$3.60

92151

BOLT,CHANGE POSITION

92151-1687

$14.71

92154

BOLT,FLANGED,10X25

92154-1329

$2.00

92154A

BOLT,FLANGED,8X40

92154-1331

$1.71

92154B

BOLT,FLANGED,12X35

92154-1332

$3.94

92154C

BOLT,CHANGE POSITION

92154-1366

$16.25

92171

CLAMP

92171-0453

$3.54

92192

TUBE,BREATHER

92192-1340

$5.86

130

BOLT-FLANGED,8X55

130BA0855

$2.25

130A

BOLT-FLANGED,8X25

130CA0825

$1.46

130B

BOLT-FLANGED,12X150

130CA12150

$17.65

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132B

BOLT-FLANGED-SMALL,8X35

132BA0835

$4.76

224

SCREW-PAN-WP-CROS,4X35

224AA0435

$1.71

311

NUT-HEX,4MM

311AA0400

$0.53

410

WASHER-PLAIN-SMALL,4MM

410AA0400

$0.49

600

BALL-STEEL,5/16

600A1000

$0.73

600A

BALL-STEEL,13/32"

600A1300

$0.94

671

O RING

671D2585

$7.98
