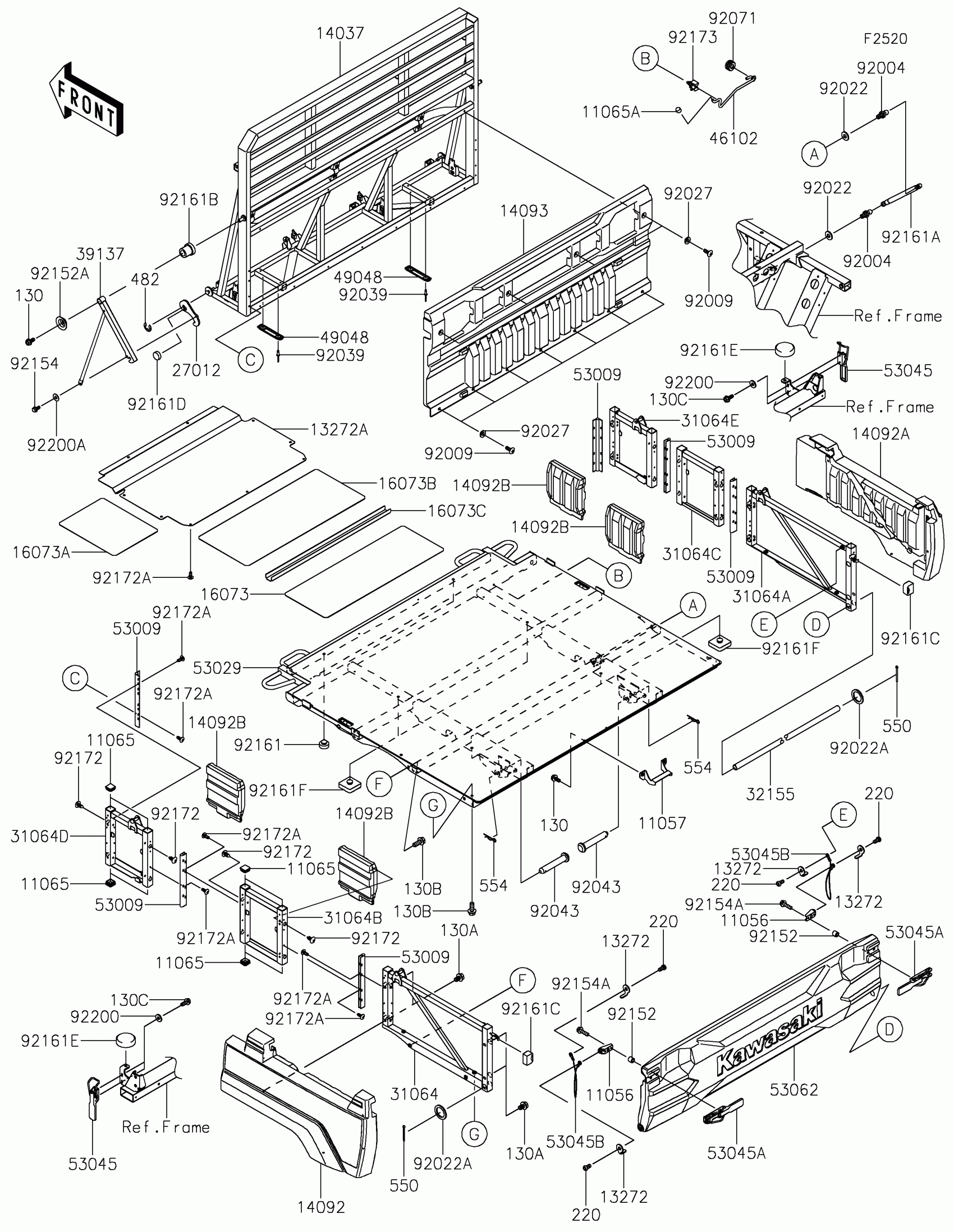

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Carrier(s) Diagram
#
11056
BRACKET,STOPPER
11056-2848
$20.98
11057
BRACKET,GATE SUPPORT
11057-1438
$22.05
11065
CAP
11065-0848
$2.94
11065A
CAP
11065-7504
$1.50
13272
PLATE
13272-1597
$1.13
13272A
PLATE
13272-1694
$331.81
14037
SCREEN
14037-0787
$695.50
14092
COVER,SIDE PANEL,RR,LH,F.BLACK
14092-1179-6Z
$100.93
14092A
COVER,SIDE PANEL,RR,RH,F.BLACK
14092-1180-6Z
$100.93
14092B
COVER,SIDE PANEL,L&R
14092-1181
$23.76
14093
COVER,SCREEN
14093-0301
$80.48
16073
INSULATOR,250X705
16073-0877
$20.95
16073A
INSULATOR,265X335
16073-0878
$10.69
16073B
INSULATOR,295X705
16073-0879
$25.33
16073C
INSULATOR,70X705
16073-0880
$6.33
27012
HOOK,SCREEN
27012-0787
$20.36
31064
PIPE-COMP,RR,LH
31064-0634
$114.56
31064A
PIPE-COMP,RR,RH
31064-0635
$114.56
31064B
PIPE-COMP,MIDDLE,LH
31064-0638
$46.92
31064C
PIPE-COMP,MIDDLE,RH
31064-0639
$46.92
31064D
PIPE-COMP,FR,LH
31064-0640
$59.78
31064E
PIPE-COMP,FR,RH
31064-0641
$59.78
32155
PIPE
32155-1533
$63.28
39137
STAY-COMP
39137-0661
$39.78
46102
ROD
46102-0606
$11.78
49048
SHOE,SCREEN
49048-0005
$6.13
53009
HINGE
53009-0031
$3.96
53029
CARRIER,BASE
53029-0348
$877.62
53045
HOOK-ASSY,MAIN LOCK
53045-0025
$23.22
53045A
HOOK-ASSY,MAIN CLAMP
53045-0026
$26.44
53045B
HOOK-ASSY
53045-0029
$6.56
53062
GATE-TAIL
53062-0022
$123.56
92004
STUD
92004-0733
$3.04
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92022
WASHER,8.2X19X2
92022-1533
$5.52
92022A
WASHER,23X32X2.3
92022-1618
$6.22
92027
COLLAR,L=4.6
92027-1168
$5.00
92039
RIVET,3.2X8
92039-3763
$1.81
92043
PIN,12.4X72.4
92043-0716
$7.24
92071
GROMMET,7.5X14X11
92071-0763
$4.55
92152
COLLAR,6.8X10X9.3
92152-1799
$2.26
92152A
COLLAR
92152-2128
$2.15
92154
BOLT,FLANGED,5X4.5
92154-0974
$2.67
92154A
BOLT,FLANGED,6X22
92154-1356
$1.48
92161
DAMPER
92161-0590
$3.90
92161A
DAMPER
92161-1615
$28.88
92161B
DAMPER,12.5X20X24
92161-1634
$1.68
92161C
DAMPER
92161-1656
$1.36
92161D
DAMPER,17X6
92161-1708
$0.64
92161E
DAMPER,10X40X10
92161-1775
$7.59
92161F
DAMPER,10X34X10
92161-1920
$1.59
92172
SCREW,6X16
92172-0284
$1.34
92172A
SCREW,TAPPING,6X16
92172-0739
$0.85
92173
CLAMP,FUEL PIPE
92173-1213
$1.48
92200
WASHER,6.5X16X2.0
92200-1543
$2.34
92200A
WASHER,6.5X16X0.5
92200-1769
$2.55
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,8X12
130BA0812
$0.95
130B
BOLT-FLANGED,8X20
130BA0820
$4.14
130C
BOLT-FLANGED,6X16
130CA0616
$1.80
220
SCREW-PAN-CROS,6X10
220AB0610
$1.81
482
CIRCLIP-TYPE-E,10MM
482EA0100
$1.04
550
PIN-COTTER,3.0X30
550AA3030
$2.51
554
PIN-SNAP,12MM
554DA1200
$3.96
