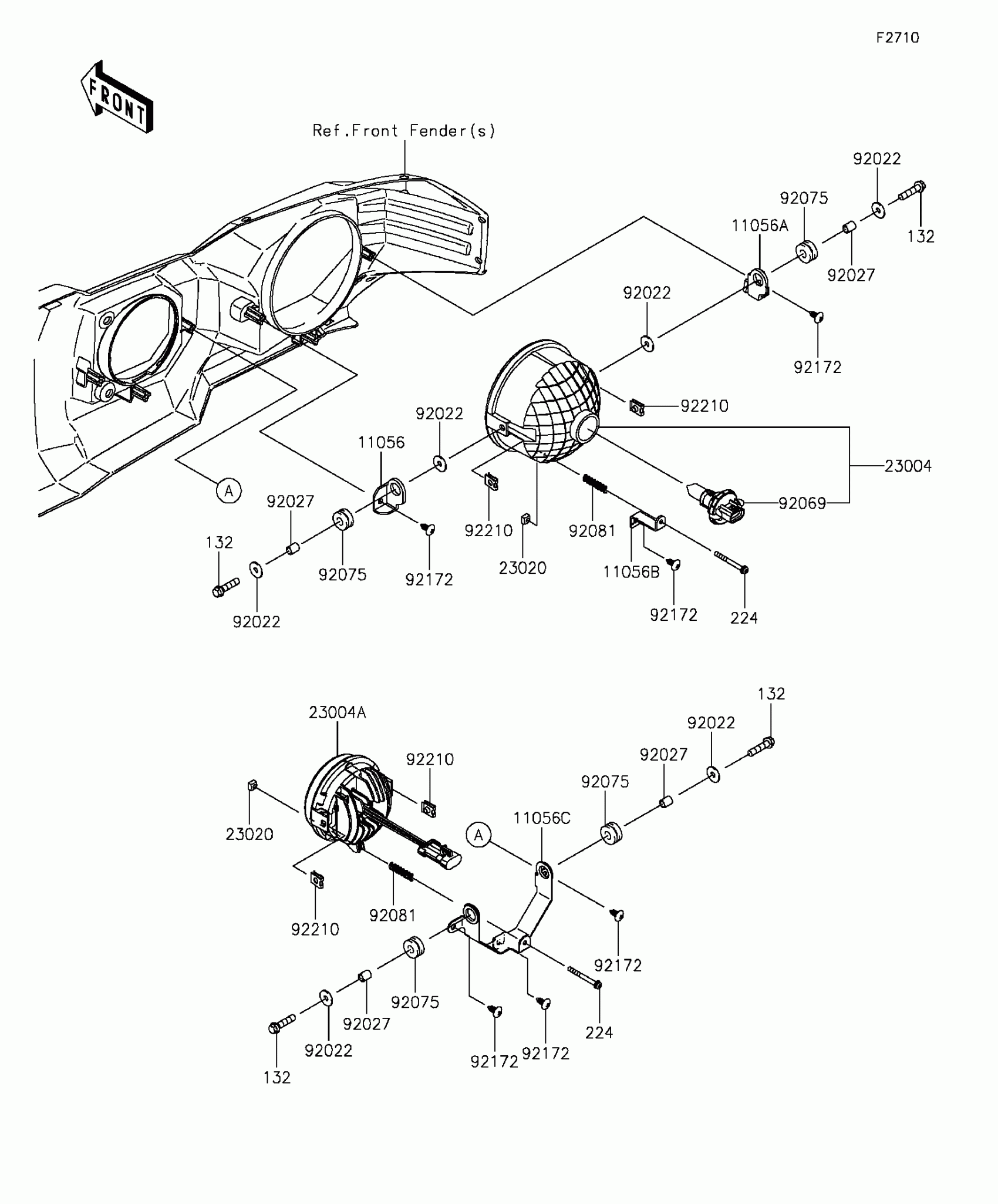

Kawasaki MULE PRO-FXT™ RANCH EDITION Headlight(s) Diagram

Description

Price

11056

BRACKET,LH

11056-2931

$3.89

11056A

BRACKET,RH

11056-2932

$3.89

11056B

BRACKET

11056-2933

$3.89

11056C

BRACKET,LAMP STAY

11056-3857

$21.01

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

224

SCREW-PAN-WP-CROS

224AA0440

$1.71

23004

LAMP-HEAD

23004-0339

$164.16

23004A

LAMP-HEAD,LED

23004-0341

$205.66

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,H13-12-8V

92069-0082

$45.06

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92172

SCREW,6X16

92172-0284

$1.34

92210

NUT

92210-1125

$4.76
