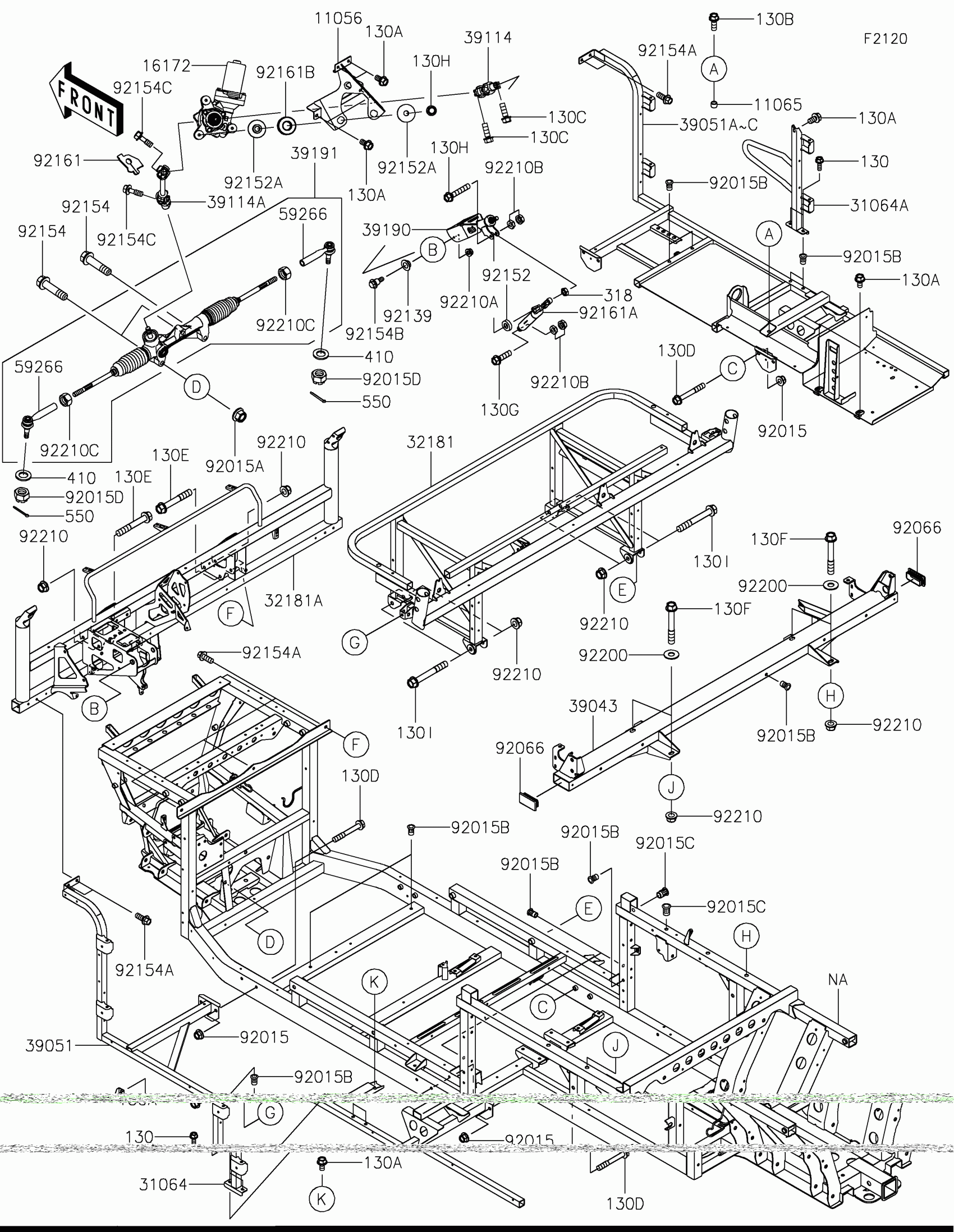

Kawasaki MULE PRO-FXT™ RANCH EDITION Frame Diagram
#
11056
BRACKET
11056-2838
$60.98
11065
CAP
11065-7504
$1.50
16172
ACTUATOR,EPS
16172-0557
$1,812.19
31064
PIPE-COMP,RR DOOR HINGE,LH
31064-0642
$40.49
31064A
PIPE-COMP,RR DOOR HINGE,RH
31064-0643
$55.90
32181
FRAME-SUB-COMP,SEAT
32181-0010
$758.80
32181A
FRAME-SUB-COMP,DASH PANEL
32181-0011
$758.80
39043
CROSSMEMBER-COMP,C PILLAR
39043-0022
$474.49
39051
FRAME-COMP-SIDE,LH
39051-0005
$323.94
39051A
FRAME-COMP-SIDE,RH
39051-0006
$603.66
39051B
FRAME-COMP-SIDE,RH
39051-0007
$603.66
39051C
FRAME-COMP-SIDE,RH
39051-0013
$613.37
39114
SHAFT-COMP-STRG
39114-0015
Unavailable
39114A
SHAFT-COMP-STRG
39114-0019
$96.23
39190
SHAFT-ASSY-STEERING
39190-0006
$231.78
39191
GEAR-ASSY-STEERING
39191-0030
$1,066.48
59266
JOINT-BALL
59266-0712
$77.58
92015
NUT,8MM
92015-1432
$6.57
92015A
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92015B
NUT,POP,6MM,L=15
92015-1791
$4.69
92015C
NUT,POP,8MM,L=16.5
92015-1793
$5.00
92015D
NUT,CASTLE,14MM
92015-1841
$8.38
92066
PLUG
92066-7505
$4.51
92139
BUSHING
92139-0230
$4.61
92152
COLLAR,8.2X18X5
92152-1848
$5.69
92152A
COLLAR,8.5X30X10.6
92152-2149
$5.04
92154
BOLT,FLANGED,12X50
92154-1008
$7.85
92154A
BOLT,FLANGED,8X20
92154-1226
$1.02
92154B
BOLT,6X21.5
92154-1320
$2.49
92161
DAMPER
92161-1689
$2.72
92161A
DAMPER,GAS SPRING
92161-1806
$51.50
92161B
DAMPER,ACTUATOR
92161-7517
$3.35
92200
WASHER,10.5X25X1.6
92200-1595
$6.18
92210
NUT,LOCK,FLANGED,10MM
92210-0276
$2.61
92210A
NUT,LOCK,FLANGED,6MM
92210-0303
$1.34
92210B
NUT,HARD LOCK,8MM
92210-0934
$4.92
92210C
NUT,16MM
92210-0969
$14.64
130
BOLT-FLANGED,6X18
130BA0618
$1.54
130A
BOLT-FLANGED,8X14
130BA0814
$2.16
130B
BOLT-FLANGED,8X22
130BA0822
$3.21
130C
BOLT-FLANGED,8X25
130BA0825
$2.95
130D
BOLT-FLANGED,8X60
130BA0860
$1.67
130E
BOLT-FLANGED,10X65
130BA1065
$2.65
130F
BOLT-FLANGED,10X70
130BA1070
$2.75
130G
BOLT-FLANGED,8X30
130CA0830
$1.08
130H
BOLT-FLANGED,8X45
130CA0845
$1.22
130I
BOLT-FLANGED,10X75
130CA1075
$4.31
318
NUT-HEX-SMALL,8MM
318BA0800
$1.34
410
WASHER-PLAIN-SMALL,14MM
410AA1400
$2.15
550
PIN-COTTER,3.0X25
550AA3025
$0.62
