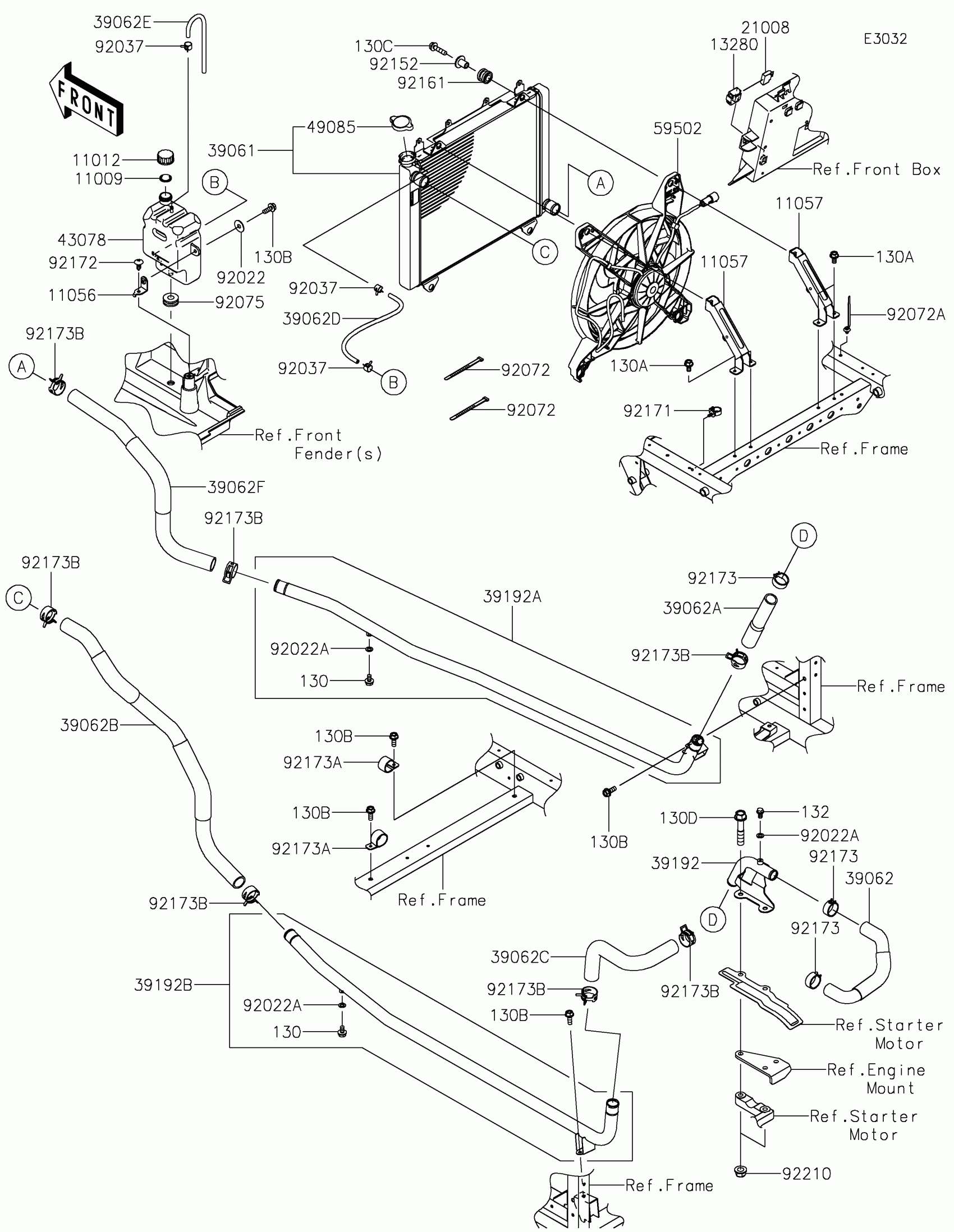

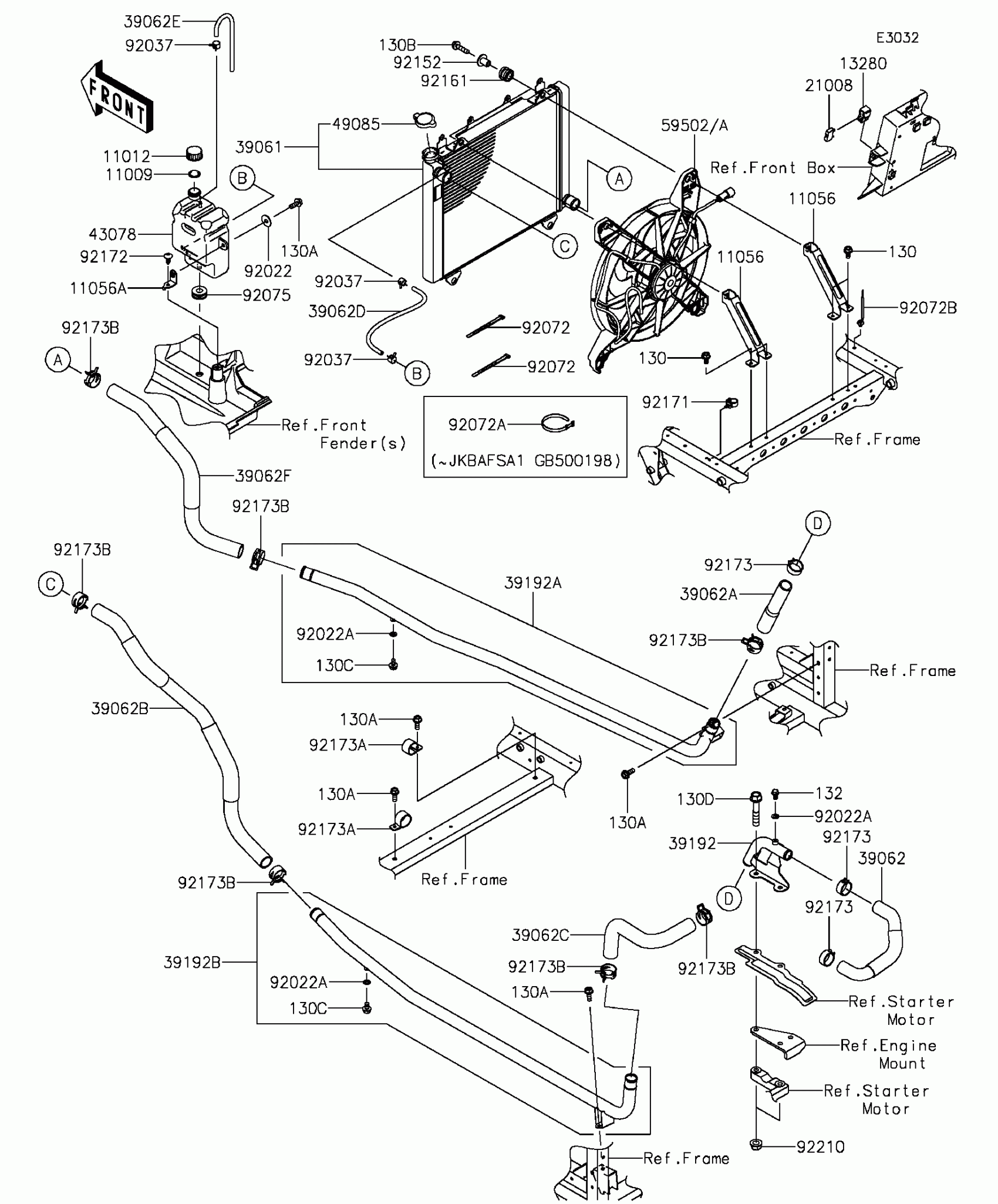

Kawasaki MULE PRO-FXT™ Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11056

BRACKET,RADIATOR

11056-2833

$18.28

11056A

BRACKET,RESERVOIR

11056-3856

$14.12

13280

HOLDER,BREAKER

13280-0082

$5.60

21008

BREAKER,RAD. FAN,20A

21008-0554

$28.27

39061

RADIATOR-ASSY

39061-0706

$479.59

39062

HOSE-COOLING

39062-0647

$30.10

39062A

HOSE-COOLING,ENGINE IN

39062-0648

$22.82

39062B

HOSE-COOLING,RADIATOR IN

39062-0650

$85.01

39062C

HOSE-COOLING,ENGINE OUT

39062-0651

$39.24

39062D

HOSE-COOLING,RAD.-RESERVOIR

39062-0657

$5.92

39062E

HOSE-COOLING,OVER FLOW

39062-0696

$6.46

39062F

HOSE-COOLING,RADIATOR OUT

39062-0697

$66.37

39192

PIPE-WATER

39192-0573

$31.22

39192A

PIPE-WATER,RH

39192-0574

$66.67

39192B

PIPE-WATER,LH

39192-0575

$68.74

43078

RESERVOIR

43078-0571

$39.23

49085

CAP-ASSY-PRESSURE

49085-0005

$45.60

59502

FAN-ASSY

59502-0566

Unavailable

59502A

FAN-ASSY

59502-0609

$386.90

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,TUBE

92037-1461

$3.88

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=186

92072-056

$5.00

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92075

DAMPER

92075-1185

$4.69

92152

COLLAR

92152-1512

$8.56

92161

DAMPER

92161-1349

$4.68

92171

CLAMP

92171-0453

$3.54

92172

SCREW,6X16

92172-0284

$1.34

92173

CLAMP

92173-0072

$7.24

92173A

CLAMP

92173-1204

$3.86

92173B

CLAMP,28.6MM

92173-1205

$4.92

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X25

130BA0625

$1.20

130C

BOLT-FLANGED,6X10

130BB0610

$2.49

130D

BOLT-FLANGED,10X50

130CA1050

$3.71

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71
