2023 Kawasaki Mule PRO-FXT™ Fuel Evaporative System Diagram

← All diagrams

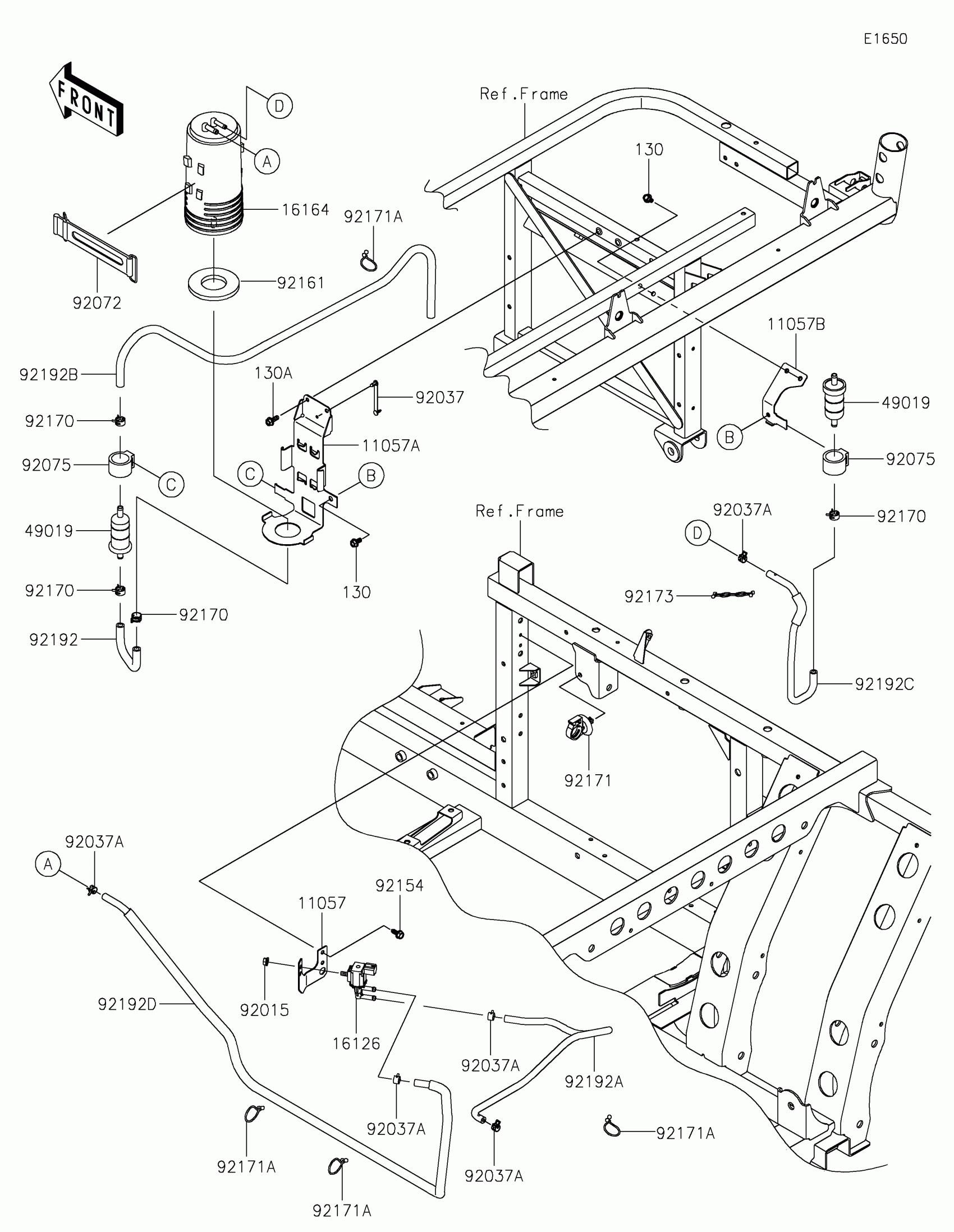

Find the part on the Fuel Evaporative System diagram for your 2023 Kawasaki Mule PRO-FXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule PRO-FXT™ Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,VALVE

11057-0763

1
Out of stock

11057A

BRACKET,CANISTER

11057-2694

1
Out of stock

11057B

BRACKET

11057-2695

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0016

1
Out of stock

49019

FILTER-FUEL

49019-0032

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92072

BAND,L=168

92072-1306

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92154

BOLT,6X15.6

92154-1250

1
Out of stock

92161

DAMPER

92161-1843

1

$4.51

In stock

92170

CLAMP

92170-2082

1

$0.83

In stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92171A

CLAMP

92171-1185

1
Out of stock

92173

CLAMP

92173-2284

1
Out of stock

92192

TUBE,FILTER-CANISTER

92192-1665

1
Out of stock

92192A

TUBE,VALVE-INTAKE MANIFOLD

92192-1667

1
Out of stock

92192B

TUBE,AIR-FUEL FILTER

92192-1900

1
Out of stock

92192C

TUBE,FILTER-CANISTER

92192-2252

1
Out of stock

92192D

TUBE,CANISTER-VALVE

92192-2286

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
