Description

Price

11056

BRACKET,CRANKSHAFT POSITION

11056-2680

$8.42

11056C

BRACKET,THROTTLE CABLE

11056-7495

$15.42

11061

GASKET,THROTTLE

11061-0954

$1.11

120

BOLT-SOCKET,6X40

120CA0640

$1.49

130

BOLT-FLANGED,6X35

130BA0635

$0.78

14093

COVER,THROTTLE

14093-0043

$4.90

16163

THROTTLE-ASSY

16163-0816

$552.27

21175

CONTROL UNIT-ELECTRONIC,DFI

21175-0893

$913.37

21176

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176A

SENSOR,OXYGEN

21176-0773

$272.91

21176B

SENSOR,CRANKSHAFT POSITION

21176-0795

$49.81

21176C

SENSOR,WATER TEMP

21176-0796

$37.24

21176D

SENSOR,CAMSHAFT POSITION

21176-0797

$69.26

21176E

SENSOR,AIR INTAKE TEMP

21176-0798

$131.35

21176F

SENSOR,EXPLOSION

21176-0799

$66.93

49056

PIPE-INJECTION

49056-0038

$552.13

92009

SCREW,5X14,WHITE

92009-1366

$2.99

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,5MM

92015-1627

$4.47

92022

WASHER

92022-2247

$0.57

92066

PLUG

92066-0810

$0.83

92071

GROMMET

92071-0730

$3.15

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072A

BAND,L=292.1

92072-3509

Unavailable

92150

BOLT,SOCKET,5X20

92150-1019

$3.61

92154

BOLT,SOCKET,5X10

92154-1396

$1.32

92154A

BOLT,6X38

92154-1589

$1.20

92154B

BOLT,6X50

92154-1591

$1.44

92154C

BOLT,FLANGED,8X30

92154-1592

$0.83

92154D

BOLT,FLANGED,6X12

92154-1593

$0.69

92154E

BOLT,6X12

92154-1594

$0.60

92154F

BOLT,8X16

92154-1595

$1.02

92154G

BOLT,FLANGED,6X16

92154-1596

$0.71

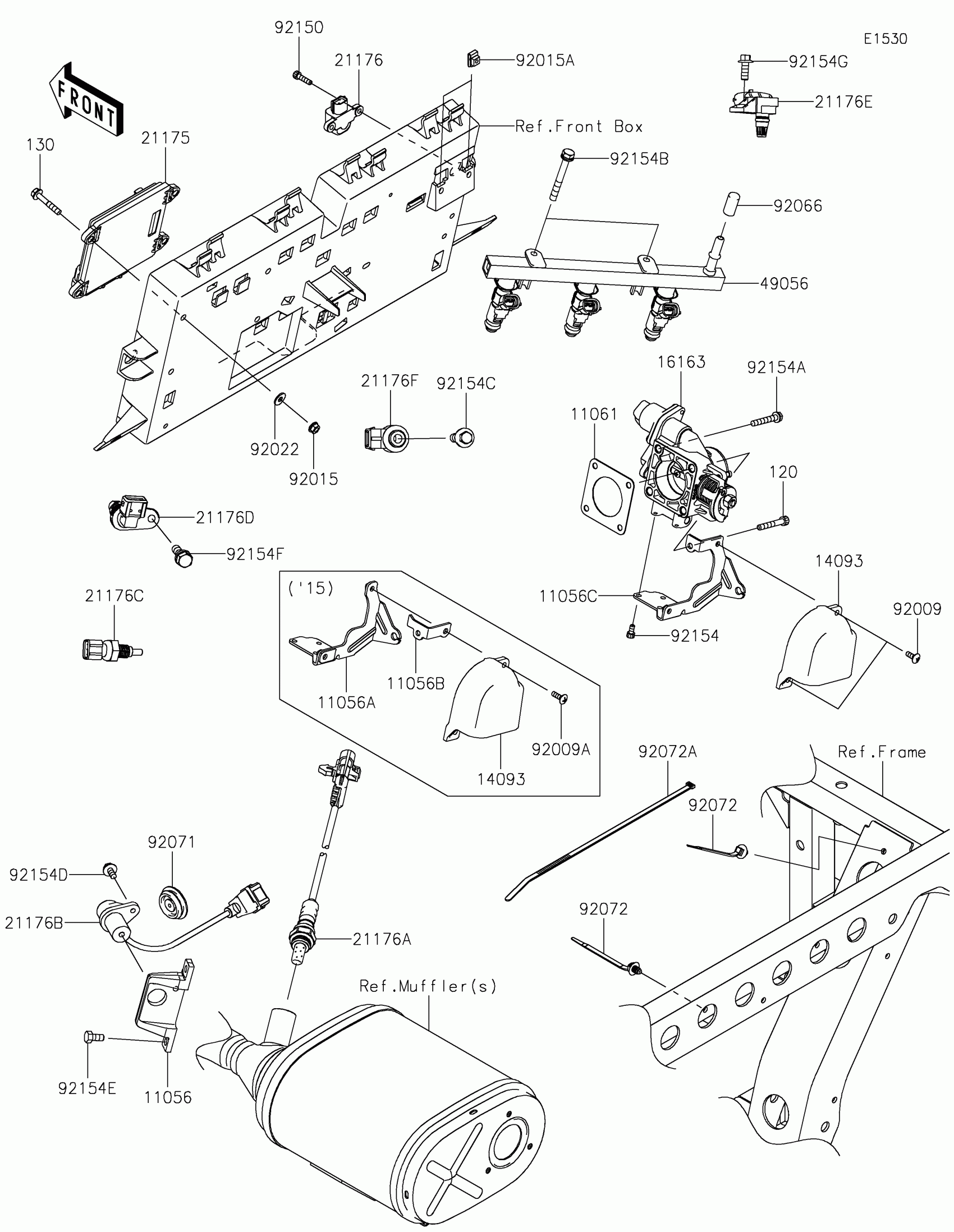

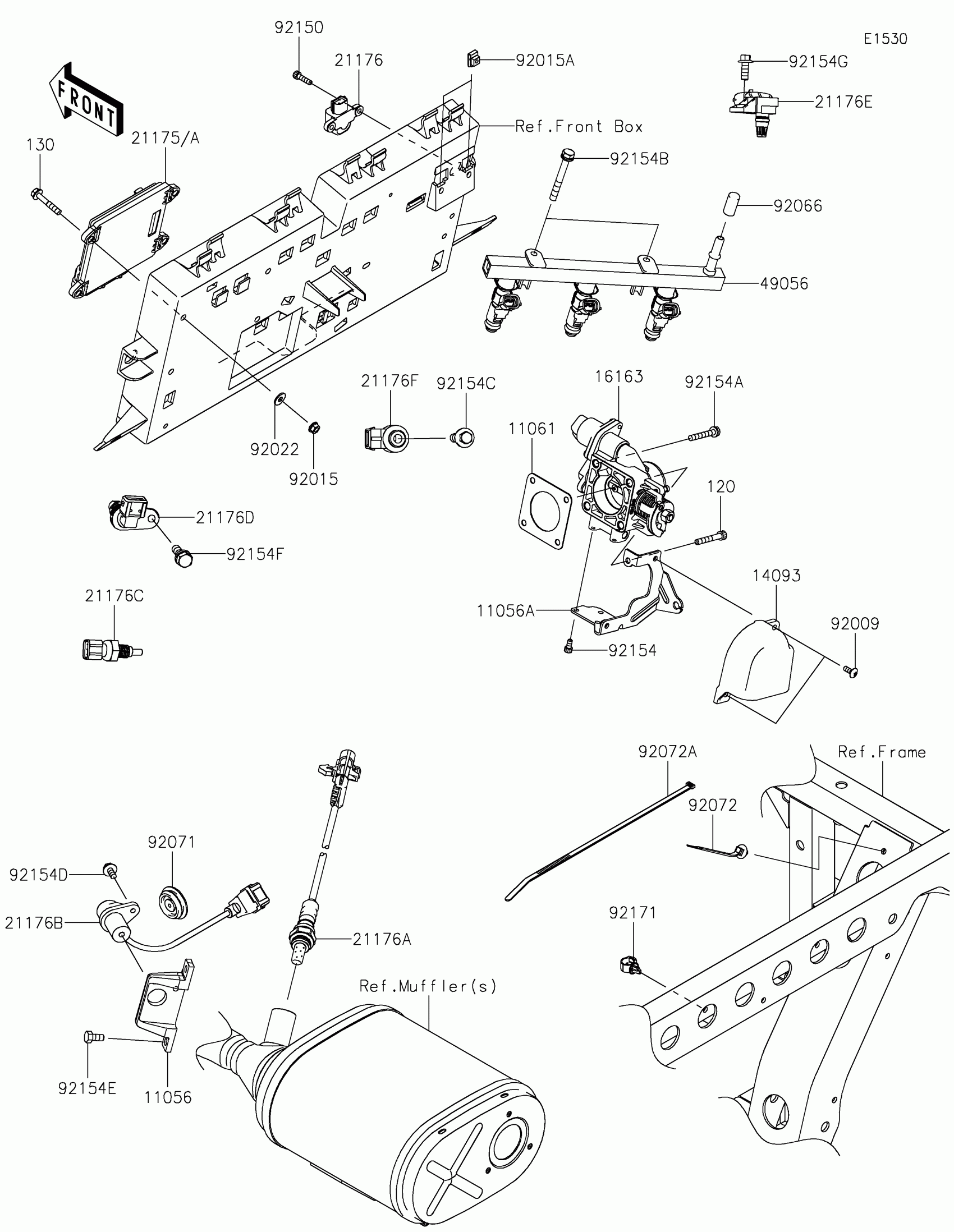

Kawasaki MULE PRO-FXT™ Fuel Injection Diagram
