2017 Kawasaki Mule Pro-FXT Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2017 Kawasaki Mule Pro-FXT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

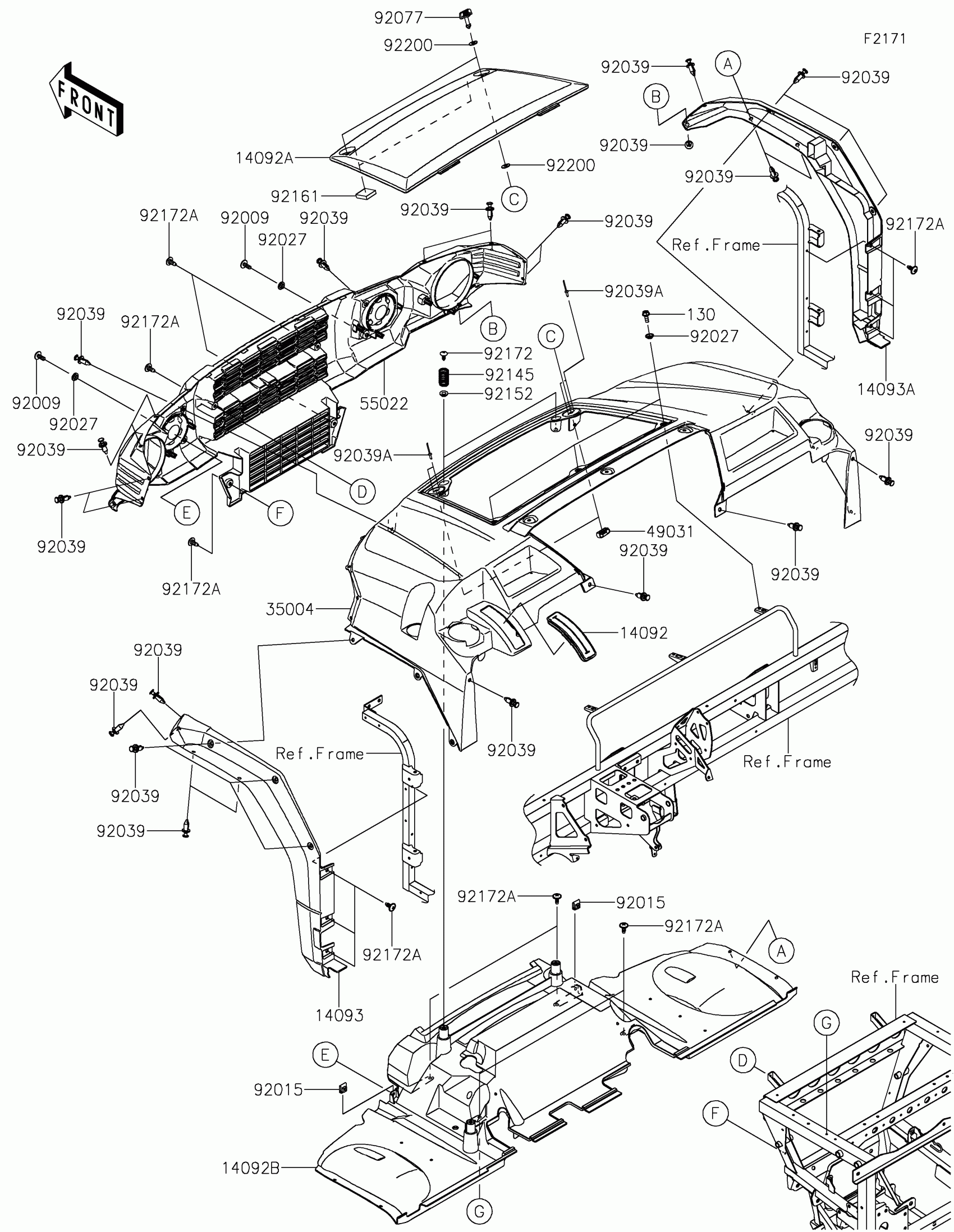

2017 Kawasaki Mule Pro-FXT Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130CA0616

1

$1.53

In stock

14092

1

$6.58

In stock

14092A

COVER,OPEN,S.BLACK

14092-1177-839

1

$151.53

In stock

14092B

COVER,TOP,FR INNER

14092-1194

1

$166.92

In stock

14093

COVER,SIDE,LH

14093-0596

1

$76.00

In stock

14093A

COVER,SIDE,RH

14093-0597

1

$76.00

In stock

35004

FENDER-FRONT,S.BLACK

35004-0335-839

1

$336.29

In stock

49031

LATCH

49031-0008

1

$1.53

In stock

55022

COVER-HEAD LAMP

55022-0304

1

$115.42

In stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,CLAMP,6MM

92015-1678

1

$4.37

In stock

92027

COLLAR,L=4.6

92027-1168

1

$3.97

In stock

92039

RIVET,3.2X9.8

92039-0013

1

$0.64

In stock

92039A

RIVET

92039-1229

1

$0.80

In stock

92077

KNOB

92077-0030

1

$2.44

In stock

92145

SPRING,17X65

92145-1727

1

$2.03

In stock

92152

COLLAR

92152-0140

1

$4.63

In stock

92161

DAMPER,40X40X10

92161-1861

1

$2.05

In stock

92172

SCREW,6X16

92172-0284

1

$0.94

In stock

92172A

SCREW,6X16

92172-0711

1

$2.44

In stock

92200

WASHER

92200-0503

1
Out of stock
