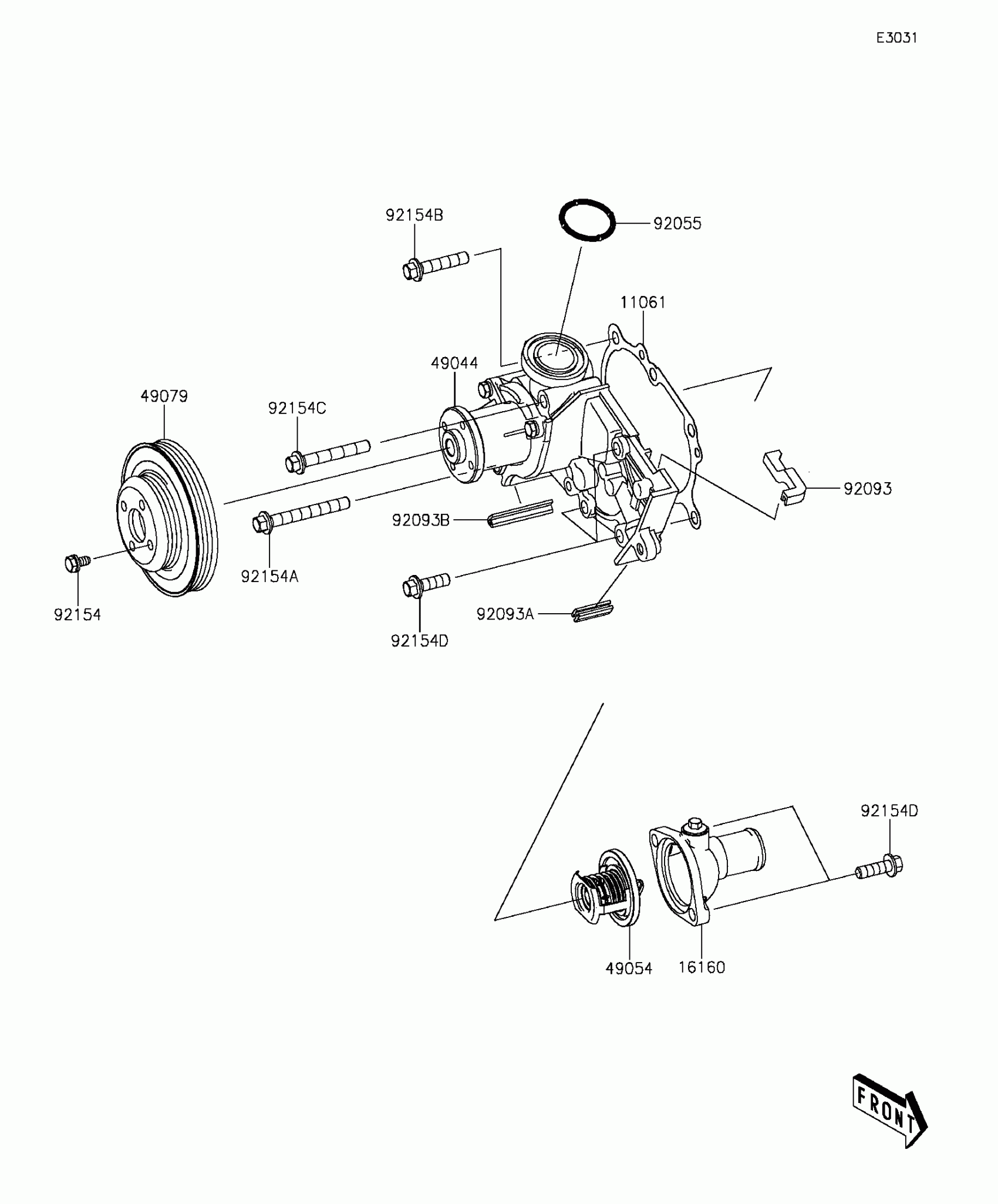

Kawasaki MULE PRO-FXT™ EPS Water Pump Diagram

Description

Price

11061

GASKET,WATER PUMP

11061-0955

$5.78

16160

BODY,THERMOSTAT HOUSING

16160-0744

$20.02

49044

PUMP-WATER

49044-0014

$127.07

49054

THERMOSTAT

49054-0007

$14.22

49079

PULLEY-BELT

49079-0022

$54.99

92055

RING-O

92055-0825

$2.29

92093

SEAL

92093-0638

$1.07

92093A

SEAL

92093-0639

$0.80

92093B

SEAL

92093-0640

$1.19

92154

BOLT,6X12

92154-1598

$1.19

92154A

BOLT,FLANGED,8X65

92154-1599

$2.19

92154B

BOLT,FLANGED,8X40

92154-1600

$1.56

92154C

BOLT,FLANGED,8X55

92154-1601

$1.88

92154D

BOLT,FLANGED,8X25

92154-1602

$1.02
