2016 Kawasaki Mule PRO-FXT™ EPS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2016 Kawasaki Mule PRO-FXT™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

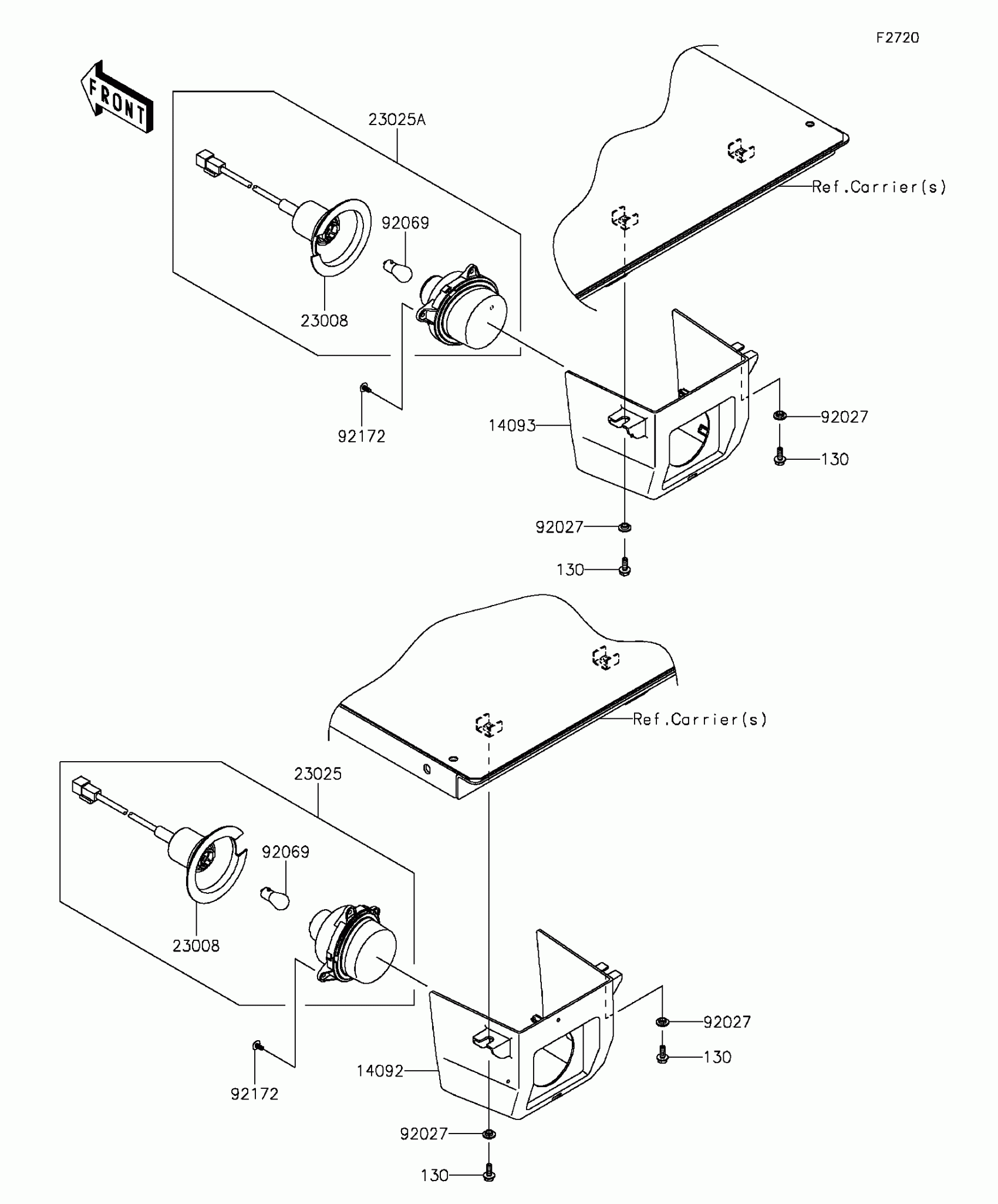

2016 Kawasaki Mule PRO-FXT™ EPS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130CA0616

1

$1.53

In stock

14092

COVER,TAIL LAMP,LH

14092-1183

1
Out of stock

14093

COVER,TAIL LAMP,RH

14093-0091

1
Out of stock

23008

SOCKET-ASSY

23008-0162

1
Out of stock

23025

LAMP-TAIL,LH

23025-0334

1
Out of stock

23025A

LAMP-TAIL,RH

23025-0341

1
Out of stock

92027

COLLAR,L=4.6

92027-1168

1
Out of stock

92069

BULB,12V 21/5W

92069-0072

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock
