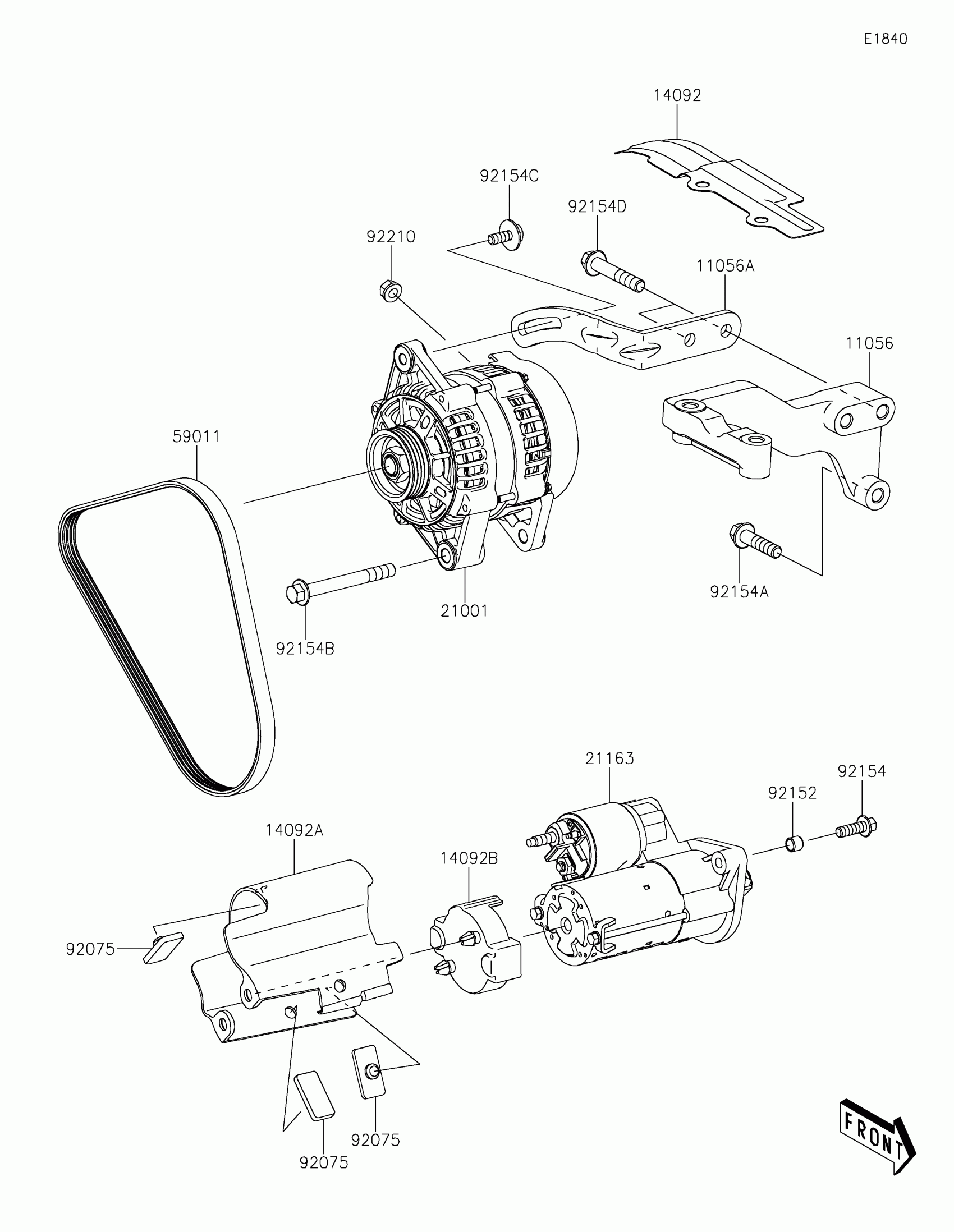

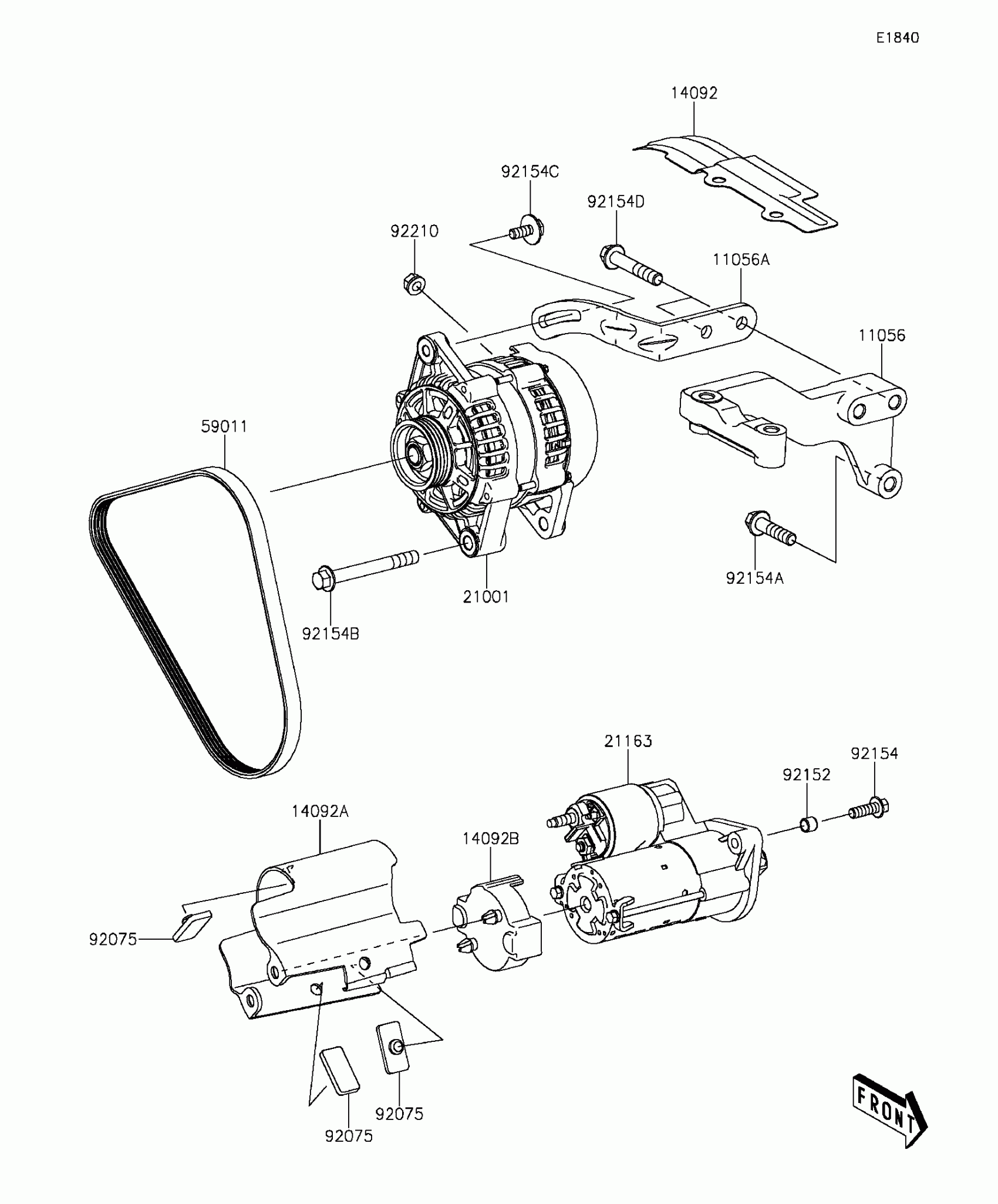

Kawasaki MULE PRO-FXT™ EPS LE Starter Motor Diagram

Description

Price

11056

BRACKET,SUSPENSION,RR

11056-7083

$50.52

11056A

BRACKET

11056-7084

$17.10

14092

COVER,ALTER BELT

14092-1198

$6.94

14092A

COVER,STARTER BODY

14092-1199

$8.03

14092B

COVER,STARTER END FACE

14092-1200

$5.14

21001

GENERATOR

21001-0606

$467.95

21163

STARTER-ELECTRIC

21163-0751

$336.31

59011

BELT

59011-0041

$12.69

92075

DAMPER

92075-1054

$5.00

92152

COLLAR

92152-1961

$1.81

92154

BOLT,FLANGED,8X25

92154-1602

$1.08

92154A

BOLT,FLANGED,10X40

92154-1604

$1.45

92154B

BOLT,FLANGED,10X90

92154-1605

$2.75

92154C

BOLT,8X20

92154-1606

$0.64

92154D

BOLT,FLANGED,10X55

92154-1607

$2.10

92210

NUT,6MM

92210-0960

$2.15
