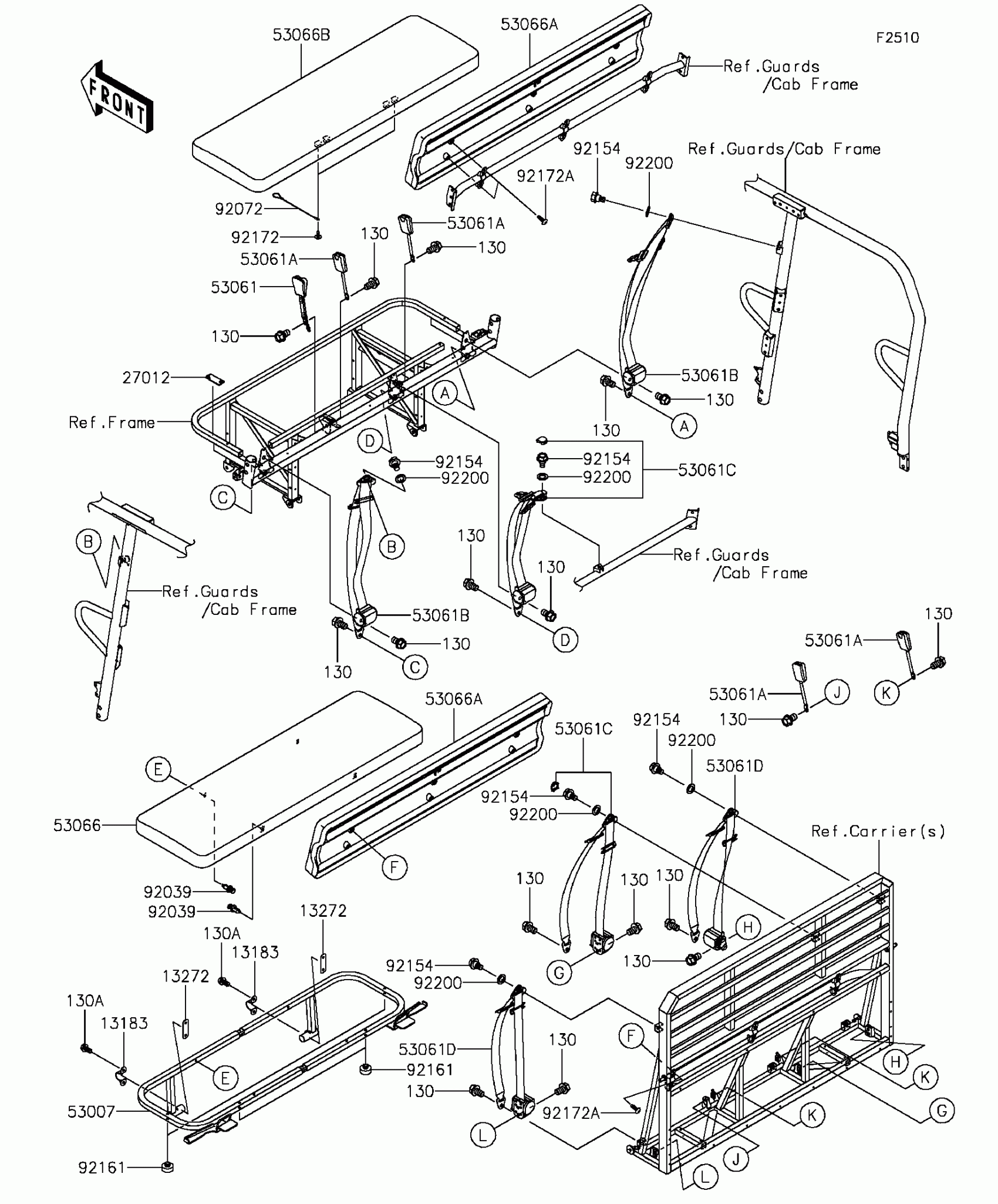

Kawasaki MULE PRO-FXT™ EPS LE Seat(CFF) Diagram

Description

Price

130

BOLT-FLANGED,12X20

130BA1220

$3.74

130A

BOLT-FLANGED,8X16

130CA0816

$2.49

13183

PLATE,SEAT

13183-1400

$7.58

13272

PLATE

13272-1699

$1.82

27012

HOOK,FASTENER,16X40

27012-0786

$5.15

53007

FRAME-SEAT

53007-0364

$156.66

53061

BELT-SEAT,BUCKLE,SW.

53061-0038

$55.82

53061A

BELT-SEAT,BUCKLE

53061-0039

$31.80

53061B

BELT-SEAT,FR,LH&RH

53061-0045

$165.31

53061C

BELT-SEAT,MIDDLE

53061-0046

$165.31

53061D

BELT-SEAT,RR,LH&RH

53061-0047

$165.31

53066

SEAT-ASSY,BLACK

53066-0425-MA

$497.44

53066A

SEAT-ASSY,BACK,BLACK

53066-0426-MA

$275.04

53066B

SEAT-ASSY,BOTTOM,BLACK

53066-0475-MA

$497.44

92039

RIVET

92039-1229

$1.19

92072

BAND

92072-0769

$3.89

92154

BOLT,FLANGED,10X18.5

92154-1388

$5.71

92161

DAMPER

92161-1065

$3.73

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,TAPPING,6X20

92172-0488

$3.02

92200

WASHER,14X22X2

92200-1745

Unavailable
