2016 Kawasaki Mule Pro-FXT™ Eps Le Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2016 Kawasaki Mule Pro-FXT™ Eps Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

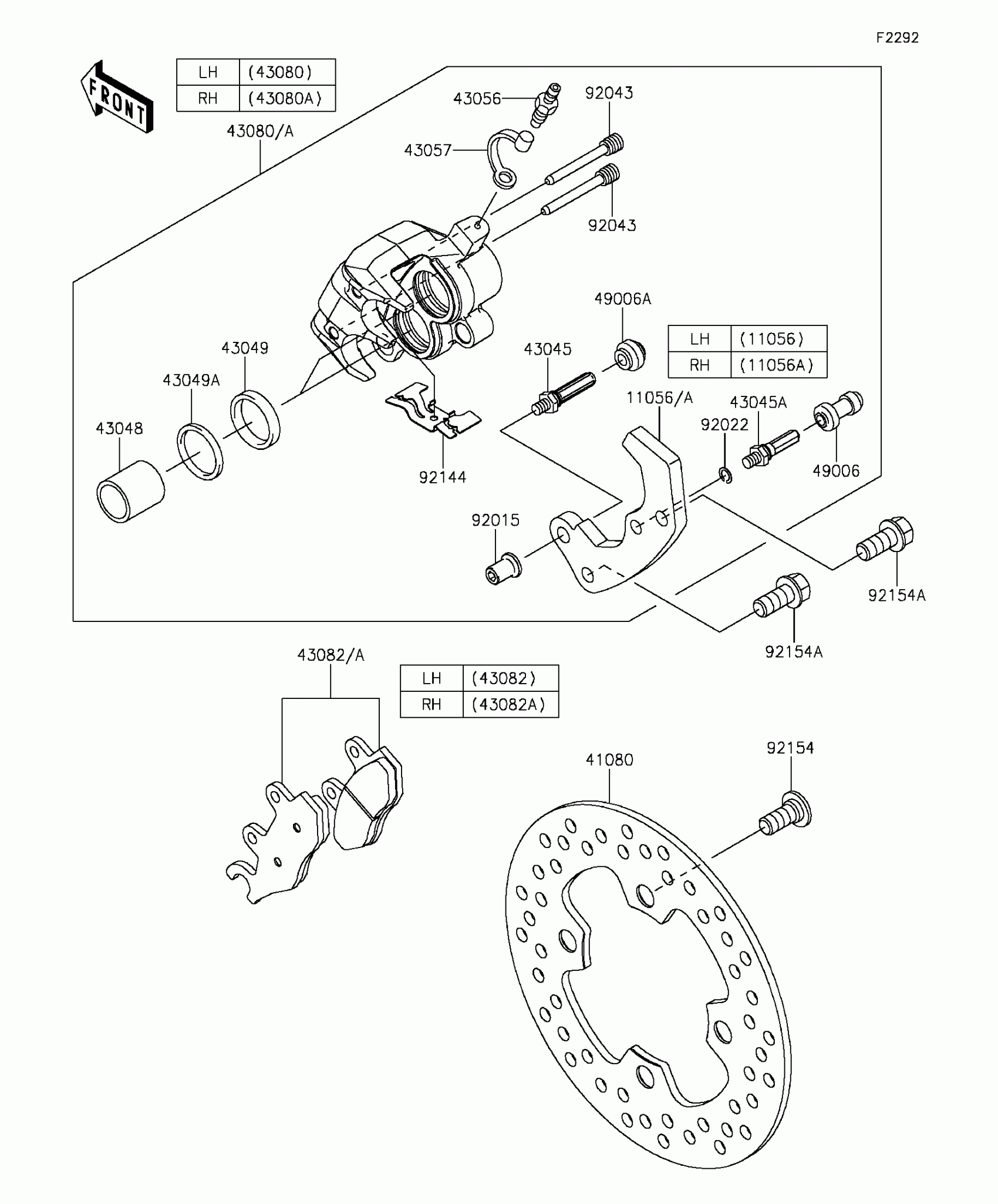

2016 Kawasaki Mule Pro-FXT™ Eps Le Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,LH

11056-3807

1

$62.52

In stock

11056A

BRACKET,RH

11056-3829

1

$62.52

In stock

41080

DISC

41080-0608

1

$55.46

In stock

43045

SHAFT-CALIPER

43045-0011

1

$19.49

In stock

43045A

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43048

PISTON-CALIPER

43048-1068

1

$83.43

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

1

$369.96

In stock

43080A

1

$369.96

In stock

43082

PAD-ASSY-BRAKE,FR,LH

43082-0138

1
Out of stock

43082A

1

$41.89

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92015

NUT

92015-1740

1

$5.46

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92043

PIN,HANGER

92043-1416

1

$14.60

In stock

92144

SPRING,PAD

92144-1847

1

$30.92

In stock

92154

BOLT,SOCKET,10X23

92154-0713

1

$3.26

In stock

92154A

BOLT,FLANGED,10X22

92154-1327

1

$2.25

In stock
