Frame Fittings(Rear)

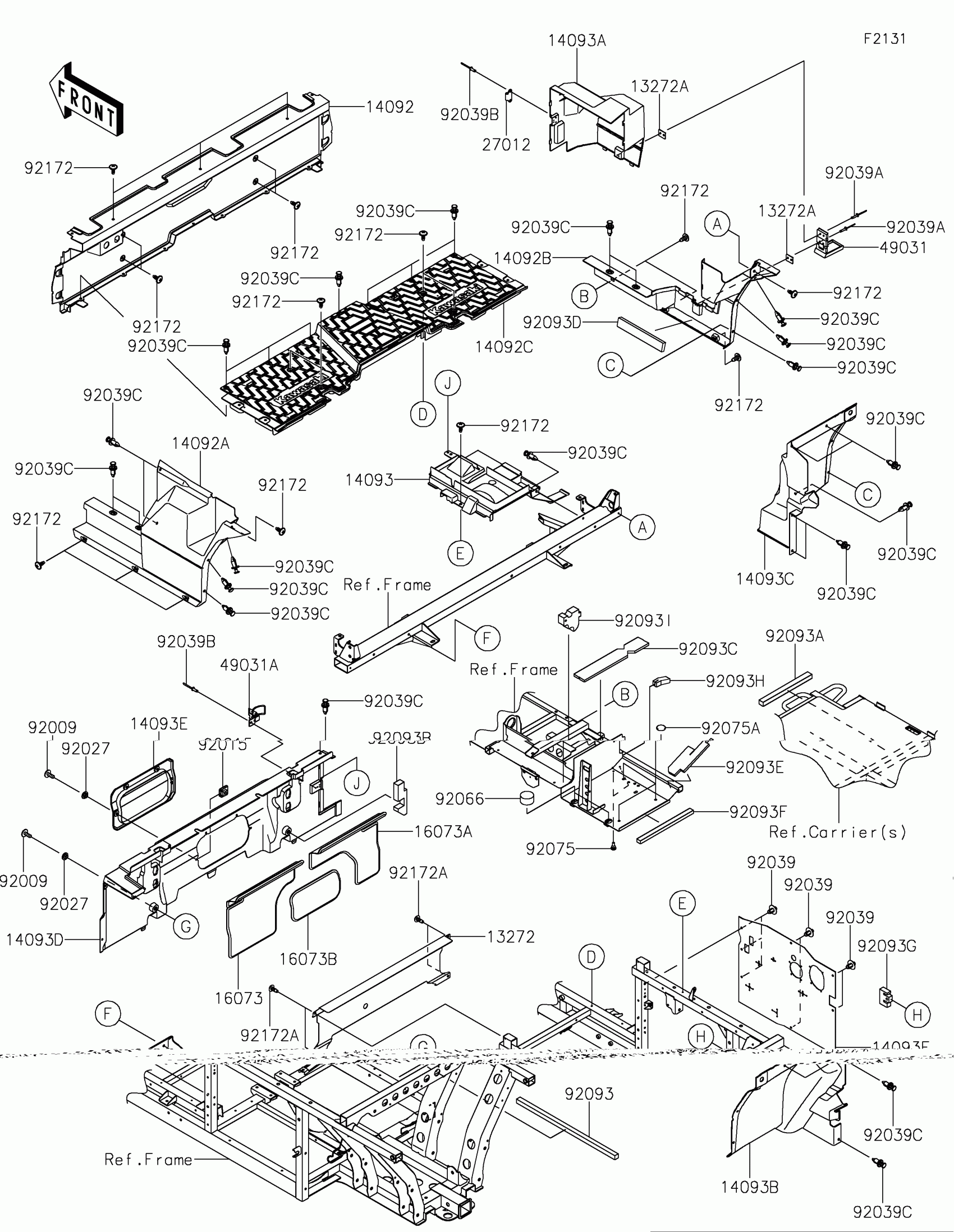

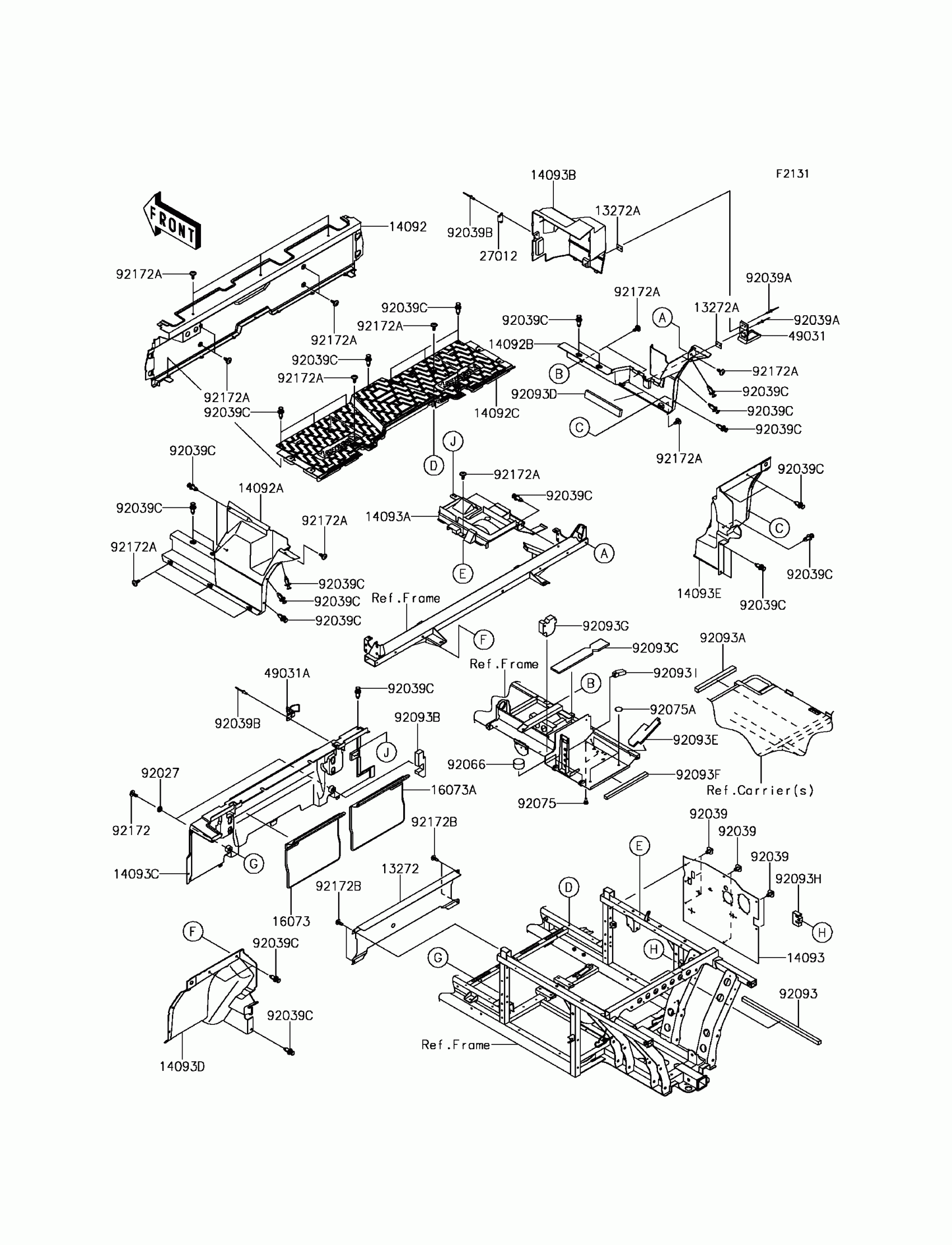

Kawasaki MULE PRO-FXT™ EPS LE Frame Fittings(Rear) Diagram
#
13272
PLATE
13272-1693
$146.28
13272A
PLATE,LATCH
13272-1828
$1.02
14092
COVER,RR FLOOR,FR
14092-1186
$138.70
14092A
COVER,SIDE,LH,RR
14092-1190
$87.05
14092B
COVER,SIDE,RH,RR
14092-1191
$54.21
14092C
COVER,FLOOR,BOTTOM
14092-1196
$229.87
14093
COVER,DUST
14093-0311
$18.05
14093A
COVER,A/C
14093-0366
$51.71
14093B
COVER,RR,FLOOR,MUD,LH
14093-0388
$75.19
14093C
COVER,RR,FLOOR,MUD,RH
14093-0389
$75.19
14093D
COVER,RR SEAT,LWR
14093-0531
$109.37
14093E
COVER,MAINTENANCE
14093-0532
$10.32
14093F
COVER
14093-0633
$32.67
16073
INSULATOR,LH
16073-0855
$71.76
16073A
INSULATOR,RH
16073-0856
$59.74
16073B
INSULATOR,CNT
16073-0857
$28.79
27012
HOOK,STRIKER
27012-0806
$2.95
49031
LATCH,A/C
49031-0007
$5.04
49031A
LATCH,TOGGLE
49031-0015
$7.82
92015
NUT,CLAMP,6MM
92015-1678
$5.52
92027
COLLAR,L=4.6
92027-1168
$5.00
92039
RIVET
92039-0086
$5.54
92039A
RIVET,3.2X13.4
92039-0739
$2.49
92039B
RIVET
92039-0747
$2.49
92039C
RIVET
92039-0776
$1.19
92066
PLUG,36X20
92066-0812
$2.04
92075
DAMPER,6X10X15
92075-1808
$1.39
92075A
DAMPER,RUBBER
92075-261
$4.31
92093
SEAL,DUST,20X20X565
92093-0631
$14.51
92093A
SEAL,DUST,20X25X280
92093-0633
$7.75
92093B
SEAL,165X50X25
92093-0642
$15.34
92093C
SEAL,DUST,61X368X10
92093-0643
$16.09
92093D
SEAL,DUST,39X255X15
92093-0644
$10.62
92093E
SEAL,DUST,69X207X10
92093-0645
$11.40
92093F
SEAL,DUST,15X305X20
92093-0646
$7.53
92093G
SEAL,52X72X20
92093-0651
$5.64
92093H
SEAL,21.5X60X20
92093-0652
$3.23
92093I
SEAL,95X97X30,GOMSPOR
92093-0714
$20.06
92172
SCREW,6X16
92172-0236
$0.85
92172A
SCREW,6X16
92172-0711
$3.02
92172B
SCREW,TAPPING,6X16
92172-0739
$0.85
