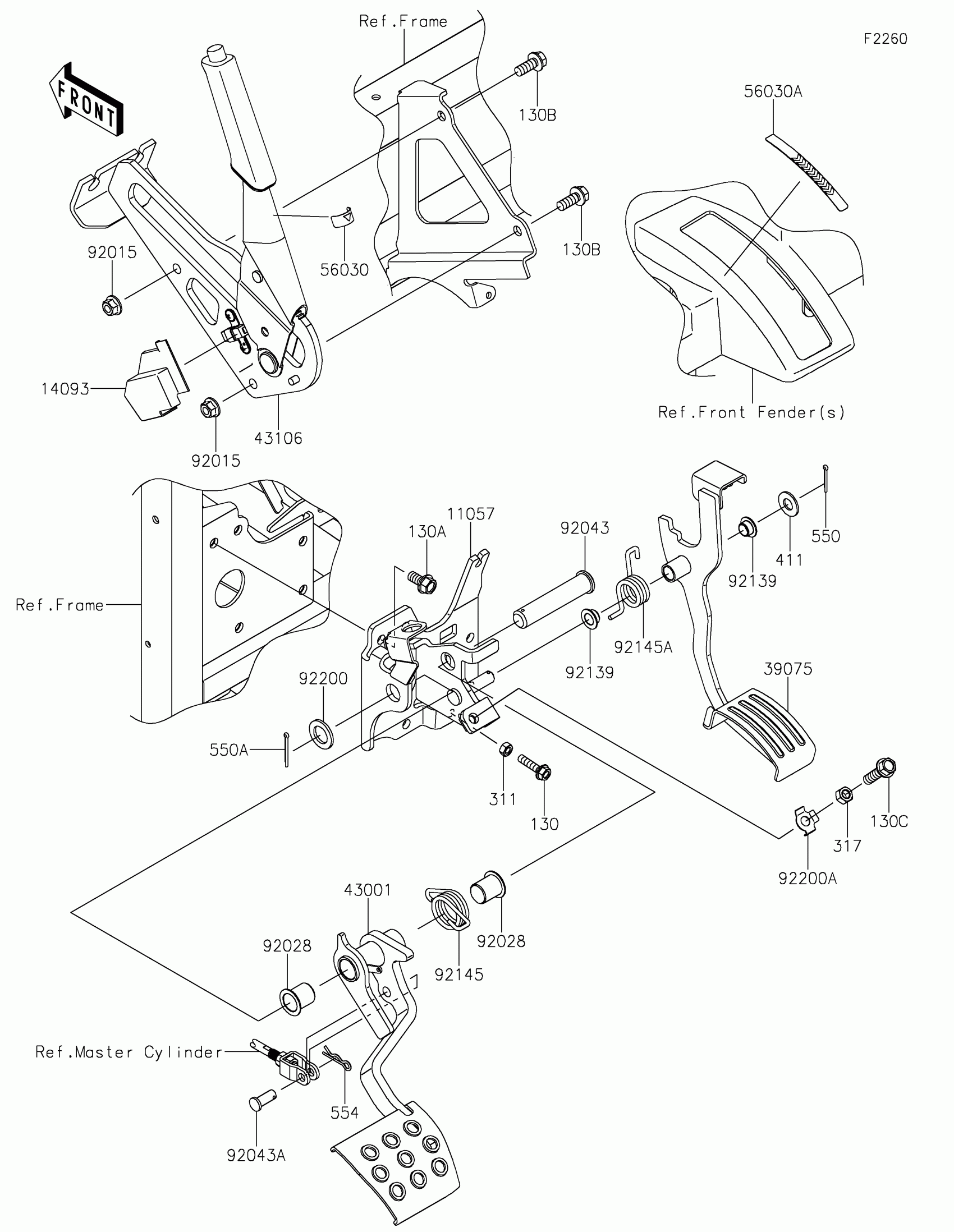

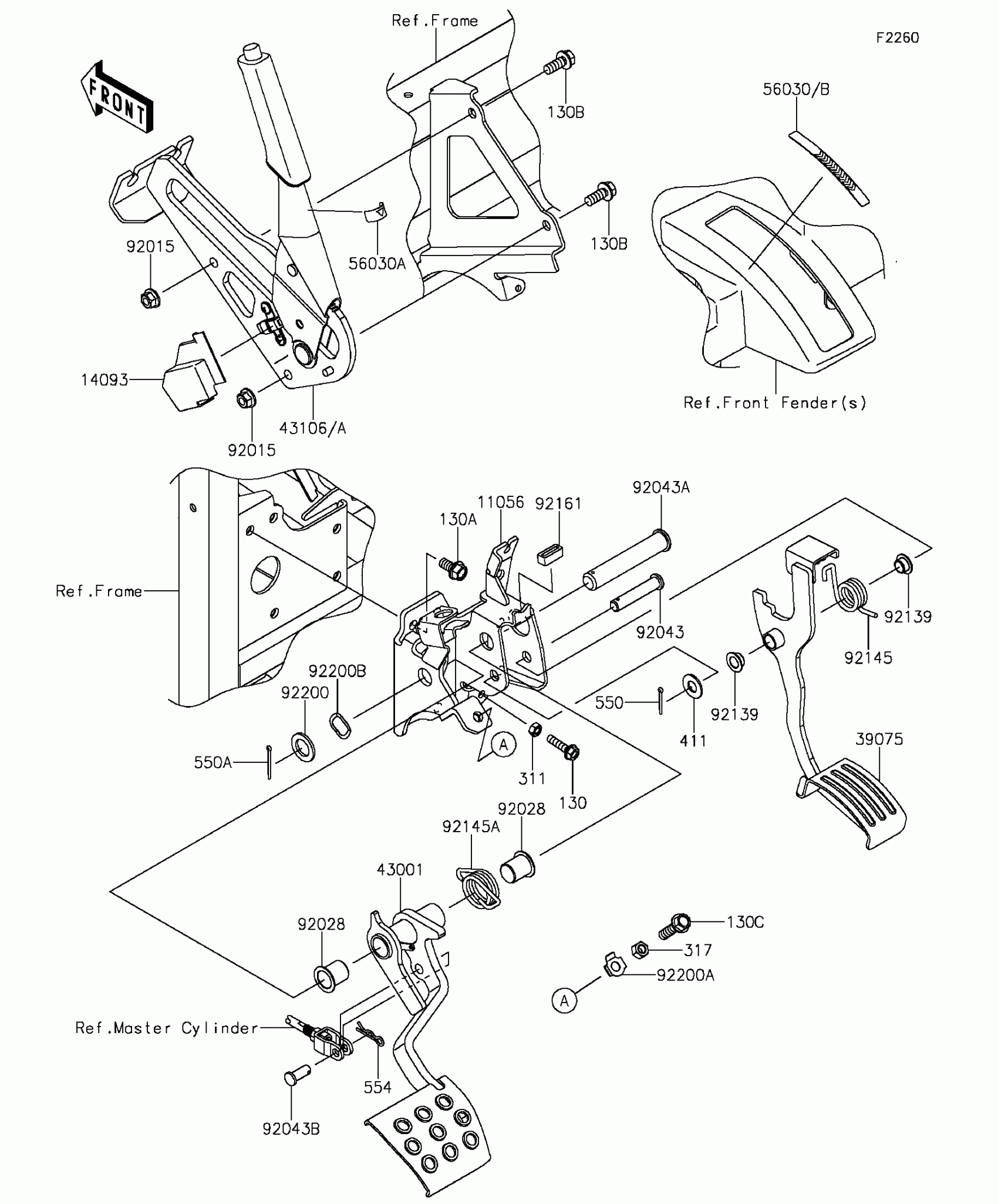

Kawasaki MULE PRO-FXT™ EPS LE Brake Pedal/Throttle Lever Diagram

Description

Price

11057

BRACKET,PARKING BRAKE

11057-0727

$77.63

14093

COVER,PARKING BRAKE SW.

14093-0241

$3.04

39075

LEVER-THROTTLE

39075-0023

$32.58

43001

LEVER-BRAKE,FOOT

43001-0752

$61.22

43106

LEVER-ASSY-PARKING BRAKE

43106-0006

$108.61

56030

LABEL,ARROW

56030-0905

$2.94

56030A

LABEL,STROKE RANGE

56030-0930

$2.94

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92028

BUSHING

92028-1571

$10.67

92043

PIN,16X78

92043-0917

$14.64

92043A

92043-1039

$9.91

92139

BUSHING

92139-0230

$4.61

92145

SPRING,BRAKE PEDAL RETURN

92145-1615

$7.69

92145A

SPRING,22X3.5

92145-1767

$6.68

92200

WASHER,16X26X2.3

92200-0043

$7.65

92200A

WASHER,8.5X17X0.8

92200-0993

$4.92

130

BOLT-FLANGED,6X25

130BA0625

$1.20

130A

BOLT-FLANGED,8X18

130BA0818

$2.55

130B

BOLT-FLANGED,8X20

130BA0820

$4.14

130C

BOLT-FLANGED,8X30

130BA0830

$1.98

311

NUT-HEX,6MM

311BA0600

$2.23

317

NUT-HEX-SMALL,8MM

317BA0800

$1.67

411

WASHER-PLAIN,10MM

411AA1000

$0.96

550

PIN-COTTER,2.5X18

550AA2518

$0.59

550A

PIN-COTTER,2.5X25

550AA2525

$1.36

554

PIN-SNAP,10MM

554DA1000

$1.36
