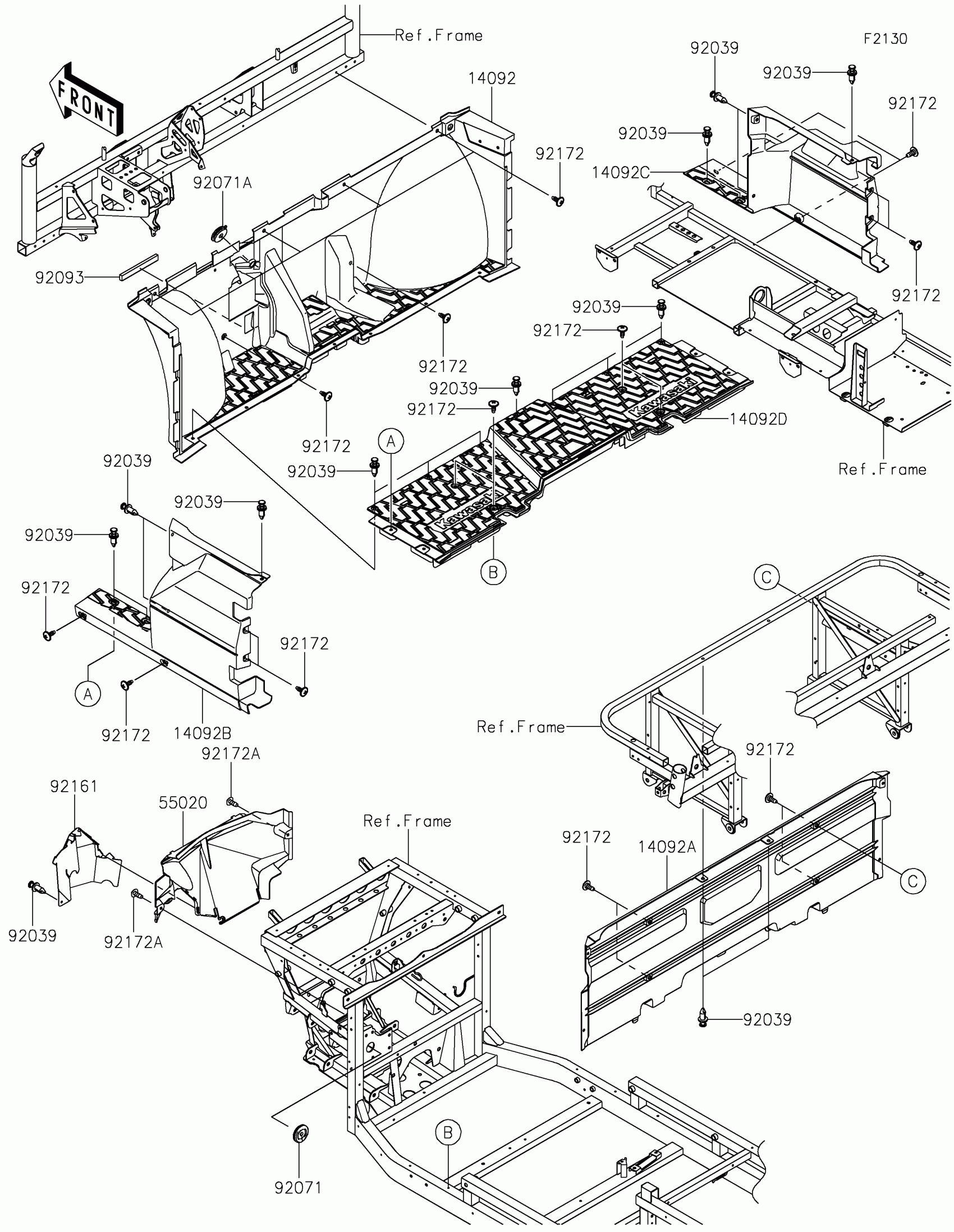

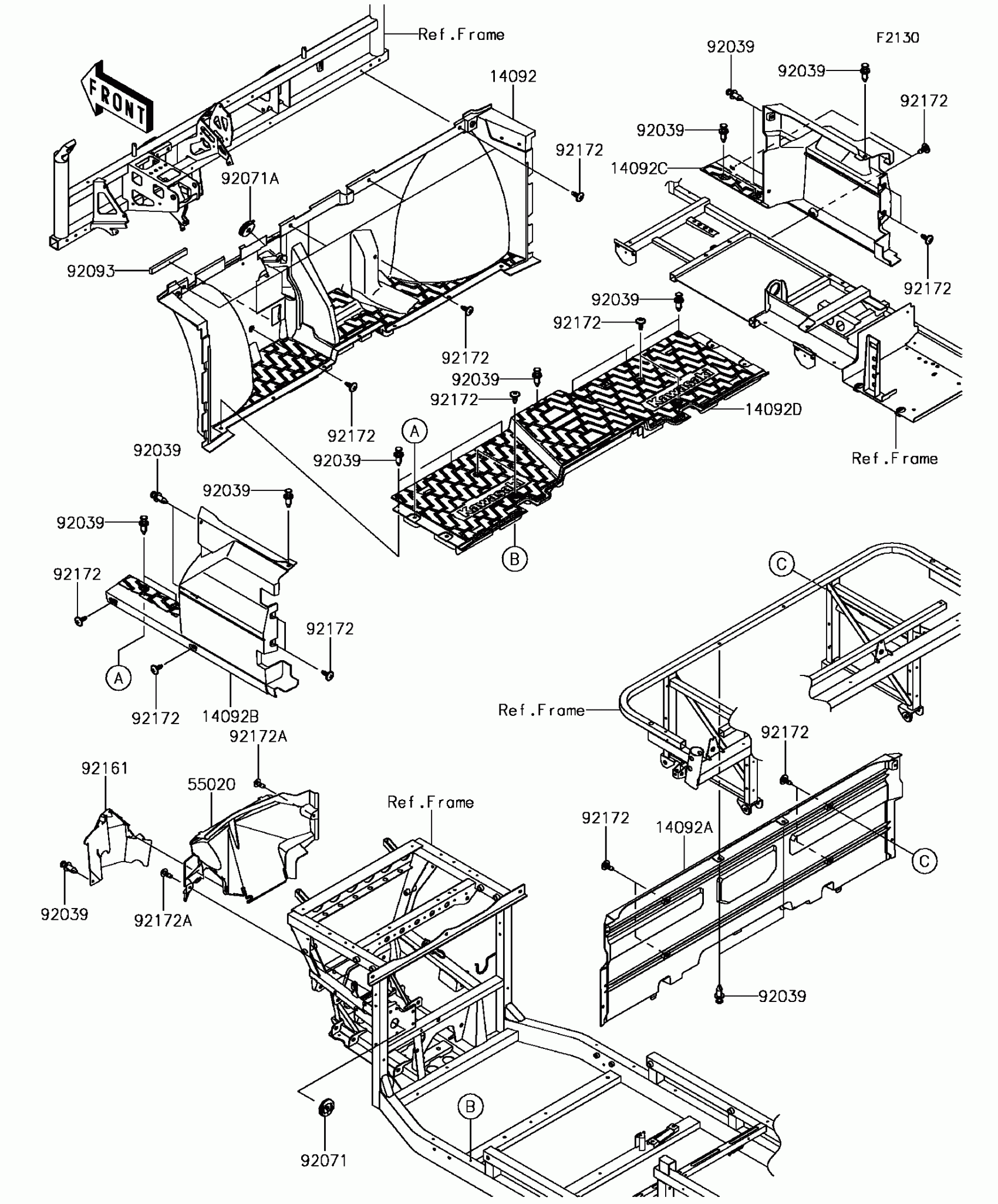

Kawasaki MULE PRO-FXT™ EPS Frame Fittings(Front) Diagram

Description

Price

14092

COVER,FR FLOOR

14092-1184

$240.56

14092A

COVER,FR SEAT

14092-1185

$113.14

14092B

COVER,SIDE,LH,FR

14092-1188

$87.05

14092C

COVER,SIDE,RH,FR

14092-1189

$87.05

14092D

COVER,FLOOR,BOTTOM

14092-1196

$229.87

55020

GUARD

55020-0961

$41.38

92039

RIVET

92039-1229

$1.19

92071

GROMMET,9X45X9

92071-0728

$1.50

92071A

GROMMET,8X22X8

92071-0753

$5.45

92093

SEAL,10X20X165

92093-0617

$3.91

92161

DAMPER

92161-1649

$17.49

92172

SCREW,6X16

92172-0711

$3.02

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85
