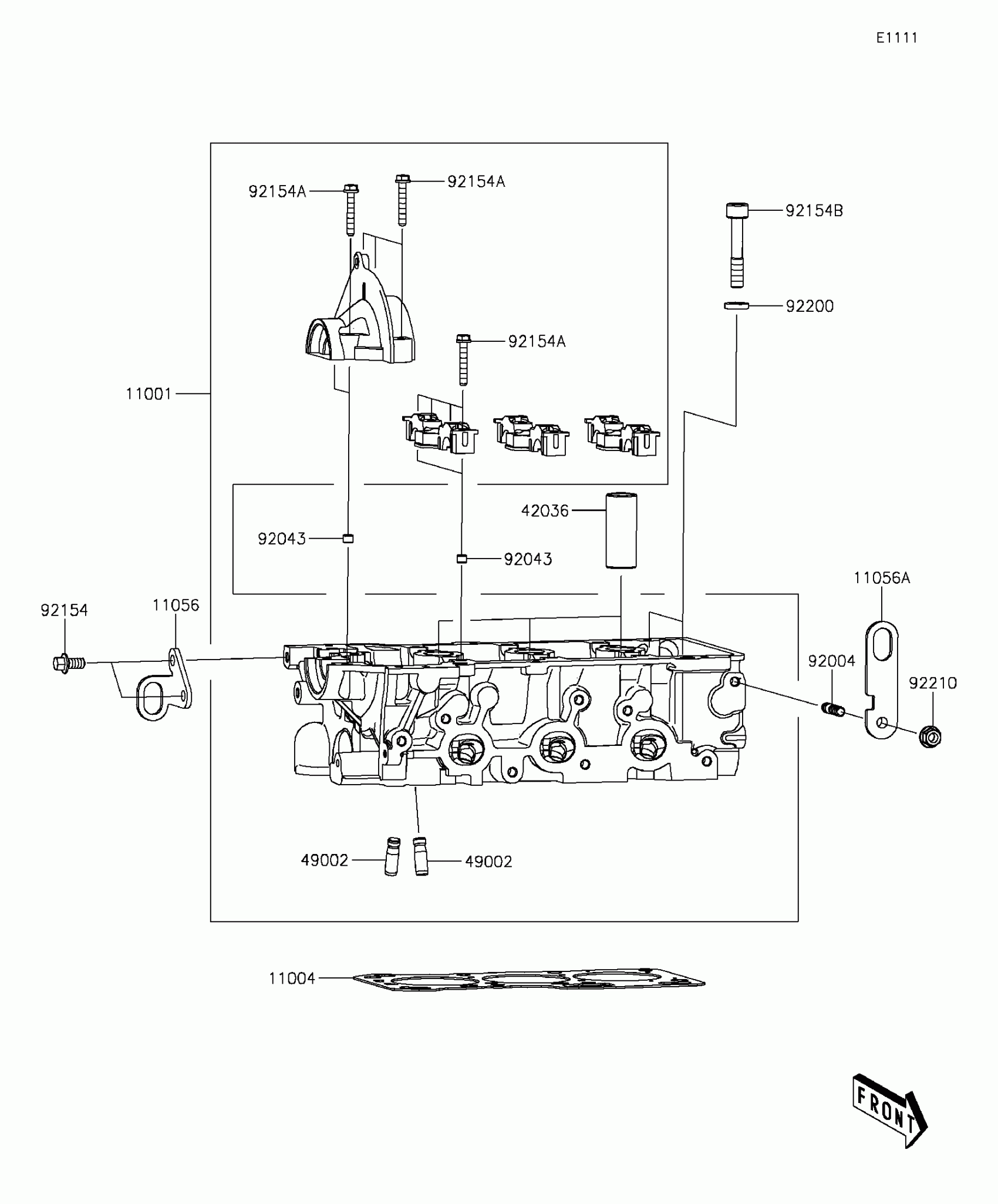

Kawasaki MULE PRO-FXT™ EPS Cylinder Head Diagram

Description

Price

11001

HEAD-CYLINDER

11001-0839

$953.23

11004

GASKET-HEAD

11004-0747

$38.59

11056

BRACKET

11056-7081

$6.61

11056A

BRACKET

11056-7082

$6.45

42036

SLEEVE,SPARK PLUG

42036-0764

$18.11

49002

GUIDE-VALVE

49002-0030

$3.90

92004

STUD

92004-0734

$6.38

92043

92043-0831

$1.03

92154

BOLT,FLANGED,8X16

92154-1588

$1.08

92154A

BOLT,6X38

92154-1589

$1.59

92154B

BOLT,SOCKET

92154-1590

$3.75

92200

WASHER

92200-1683

$0.67

92210

NUT

92210-0944

$1.17

Kawasaki MULE PRO-FXT™ EPS Cylinder Head Diagram

HEAD-CYLINDER

GASKET-HEAD

BRACKET

BRACKET

SLEEVE,SPARK PLUG

GUIDE-VALVE

STUD

PIN

BOLT,FLANGED,8X16

BOLT,6X38

BOLT,SOCKET

WASHER

NUT
