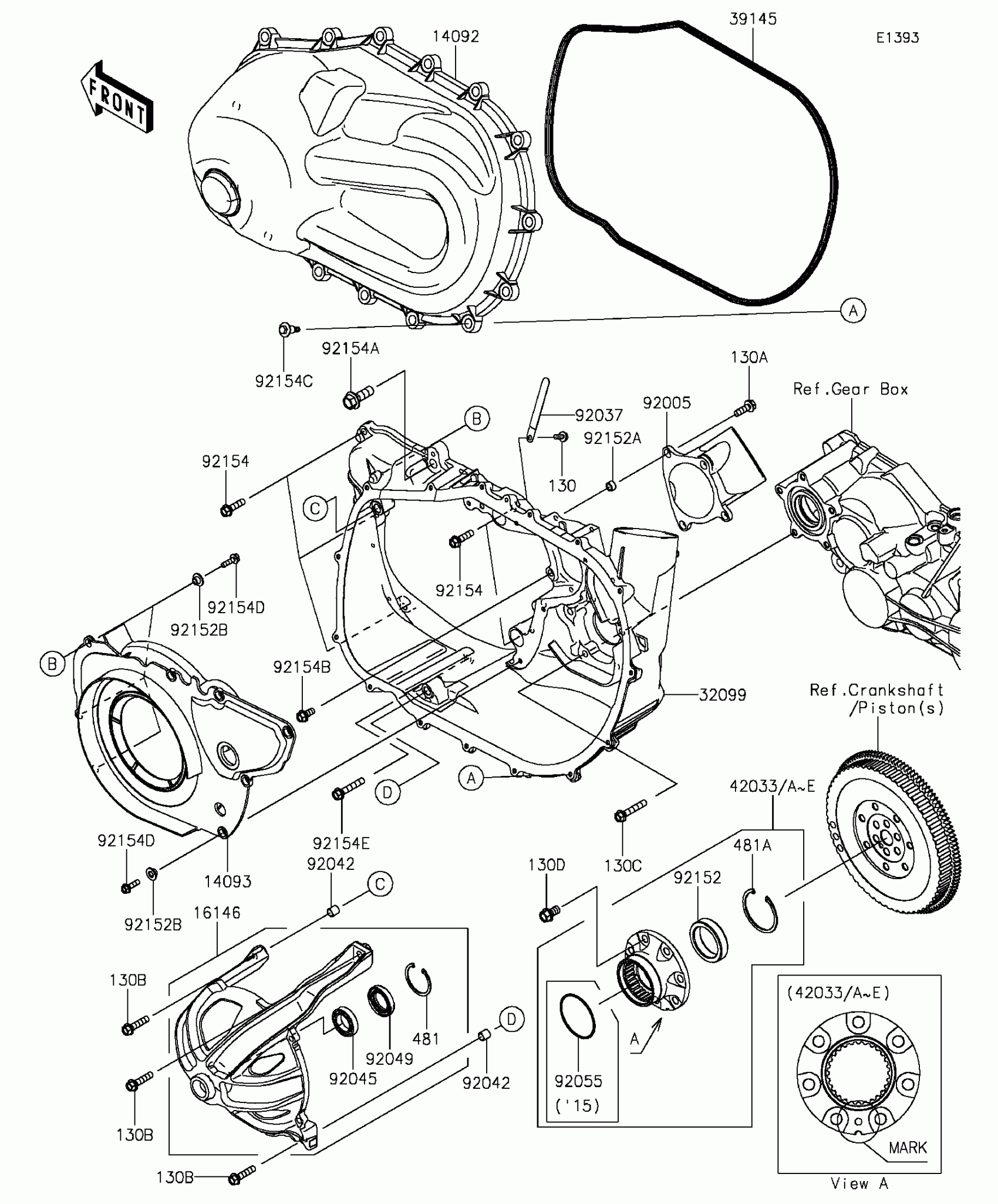

Kawasaki MULE PRO-FXT™ EPS Converter Cover Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,8X25

130BA0825

$2.95

130B

BOLT-FLANGED,8X35

130BA0835

$1.46

130C

BOLT-FLANGED,8X45

130BA0845

$1.61

130D

BOLT-FLANGED,10X18

130CA1018

$2.49

14092

COVER,CVT

14092-1202

$165.49

14093

COVER

14093-0050

$160.58

16146

COVER-ASSY

16146-0734

$112.07

32099

CASE,CVT

32099-0746

$522.01

39145

TRIM-SEAL

39145-0047

$40.17

42033C

COUPLING-ASSY,B MARK,WHITE

42033-0582

$127.63

42033D

COUPLING-ASSY,A MARK,BLUE

42033-0583

$127.82

42033E

COUPLING-ASSY,C MARK,YELLOW

42033-0584

$127.82

481

CIRCLIP,45MM

481J4500

$2.06

481A

CIRCLIP

481J6200

$11.39

92005

FITTING,INTAKE

92005-0762

$8.35

92037

CLAMP

92037-1993

$5.52

92042

PIN,DOWEL,12X14

92042-031

$6.57

92045

BEARING-BALL,#6905

92045-036

$27.88

92049

SEAL-OIL,HTC 28X45X8

92049-0767

$12.60

92152

COLLAR

92152-1822

$57.20

92152A

COLLAR,8.8X12.3X6.9

92152-1853

$3.63

92152B

COLLAR

92152-1931

$2.00

92154

BOLT,FLANGED,8X30

92154-0850

$2.67

92154A

BOLT,FLANGED,12X35

92154-1337

$3.86

92154B

BOLT,FLANGED,8X18

92154-1386

$1.71

92154C

BOLT,CVT COVER

92154-1522

$3.26

92154D

BOLT,FLANGED,6X22

92154-1525

$1.71

92154E

BOLT,FLANGED,8X45

92154-1526

$2.00
