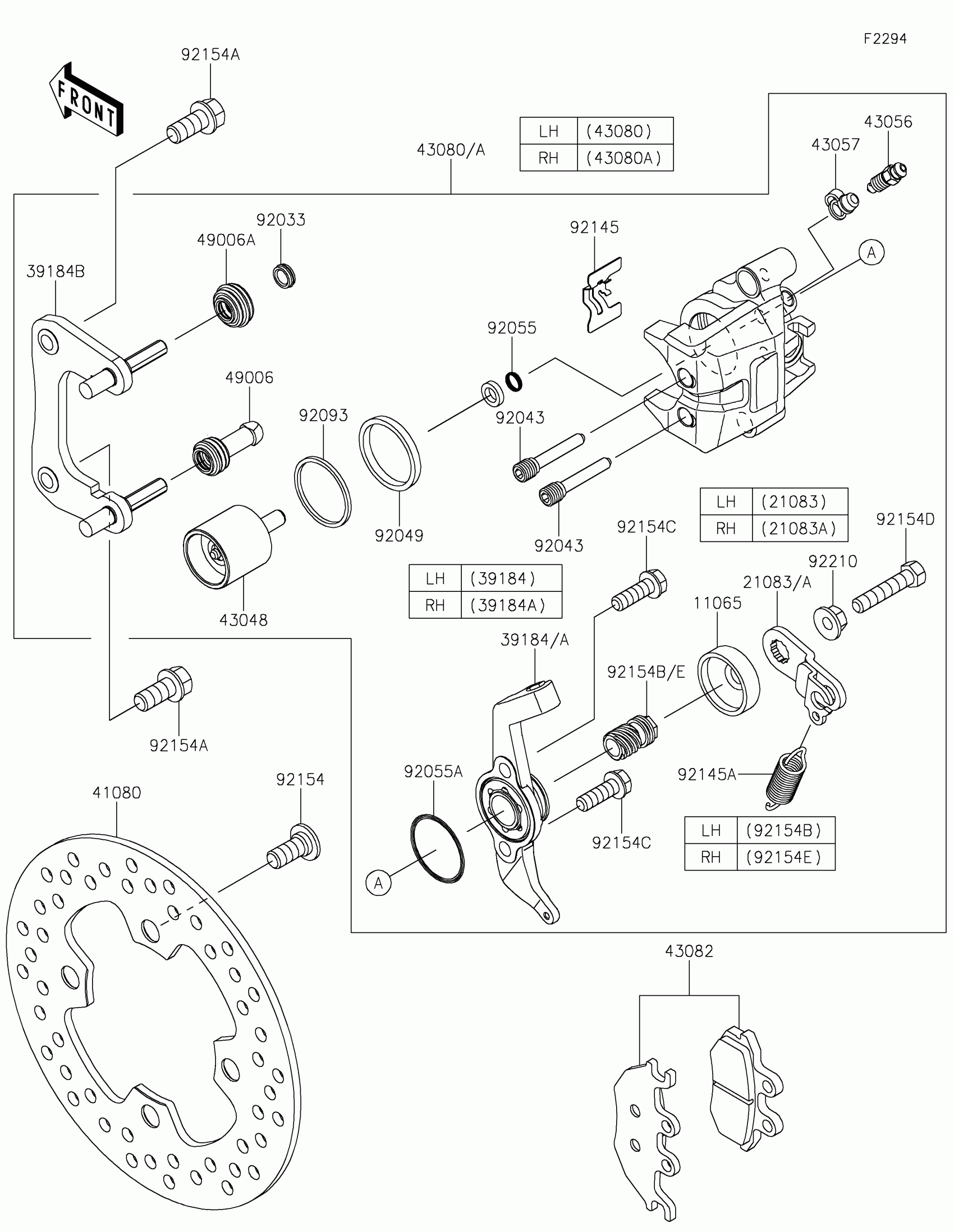

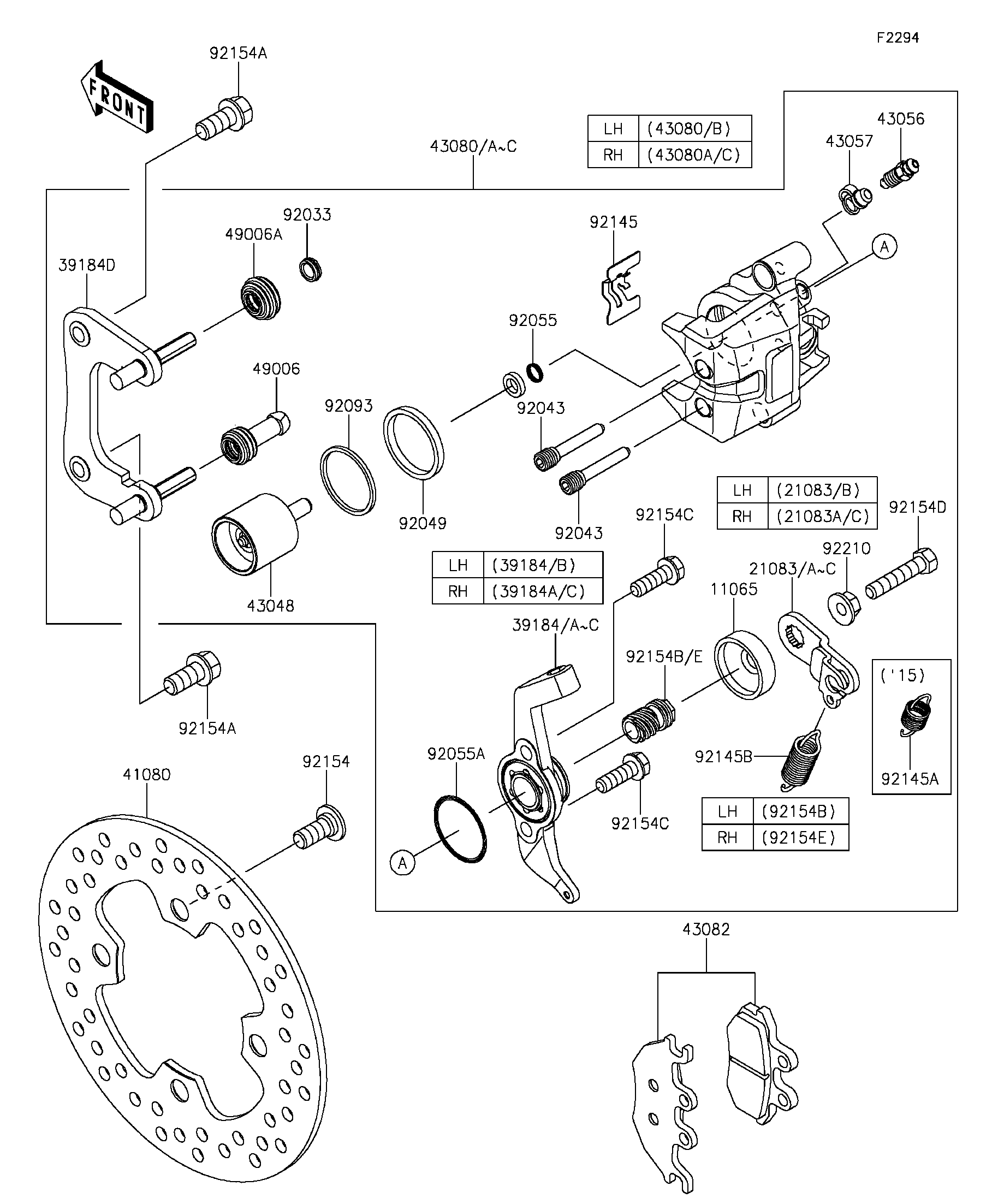

Kawasaki MULE PRO-FXT™ EPS CAMO Rear Brake Diagram

#

Description
Price

11065

CAP

11065-0870

$3.71

21083B

ARM,BRAKE,RR,LH

21083-0728

$23.87

21083C

ARM,BRAKE,RR,RH

21083-0729

$23.87

39184B

BRACKET-ASSY,LH

39184-0042

$91.81

39184C

BRACKET-ASSY,RH

39184-0043

$91.81

39184D

BRACKET-ASSY

39184-0044

$76.87

41080

DISC

41080-0608

$61.78

43048

PISTON-CALIPER

43048-0027

$65.39

43056

BREATHER-BRAKE

43056-0010

$4.05

43057

CAP-BREATHER

43057-0552

$5.01

43080B

CALIPER-SUB-ASSY,RR,LH

43080-0163

$495.24

43080C

CALIPER-SUB-ASSY,RR,RH

43080-0164

$495.24

43082

PAD-ASSY-BRAKE

43082-0140

$58.52

49006

BOOT

49006-0591

Unavailable

49006A

BOOT

49006-0592

Unavailable

92033

RING-SNAP

92033-0749

$3.42

92043

PIN

92043-0818

$7.31

92049

SEAL-OIL

92049-0765

Unavailable

92055

RING-O

92055-0793

$3.44

92055A

RING-O

92055-0795

$3.20

92093

SEAL

92093-0613

$5.28

92145

SPRING

92145-1619

Unavailable

92145B

SPRING,RETURN,47MM

92145-1690

$5.24

92154

BOLT,SOCKET,10X23

92154-0713

$4.10

92154A

BOLT,FLANGED,10X22

92154-1327

$2.75

92154B

BOLT,LH

92154-1479

$26.15

92154C

BOLT

92154-1480

Unavailable

92154D

BOLT

92154-1481

$8.40

92154E

BOLT,RH

92154-1503

$26.15

92210

NUT

92210-0912

$8.40
