Description

Price

11010

FILTER-ASSY-AIR

11010-0808

$134.73

11011

CASE-AIR FILTER,UPP

11011-0813

$31.09

11013

ELEMENT-AIR FILTER

11013-1290

$28.98

11056

BRACKET,AIR FILTER

11056-3734

$4.36

11061

GASKET,INTAKE MANIFOLD

11061-0956

$7.86

11061A

GASKET,ADAPTER

11061-0961

$10.99

14073

DUCT,INTAKE

14073-0786

$33.62

14073A

DUCT,INTAKE

14073-0992

$50.65

14073B

DUCT,JOINT

14073-1775

$4.36

41077

ADAPTER,ELEMENT

41077-0719

$26.37

49006

BOOT

49006-0555

$5.30

59076

MANIFOLD-INTAKE

59076-0007

$569.19

92004

STUD

92004-0734

$6.38

92005

FITTING,DUCT-BREATHER TUBE

92005-0992

$7.22

92009

SCREW,5X12

92009-1154

$3.57

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92093

SEAL,AIR FILTER

92093-0607

$7.87

92170

CLAMP

92170-1448

$8.10

92170A

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0225

$1.97

92171A

CLAMP

92171-0533

$3.39

92171B

CLAMP,18.8MM

92171-2056

$1.46

92172

SCREW,TAPPING,5X20

92172-0009

$2.80

92192

TUBE,BREATHER

92192-2365

$18.84

92210

NUT

92210-0944

$1.17

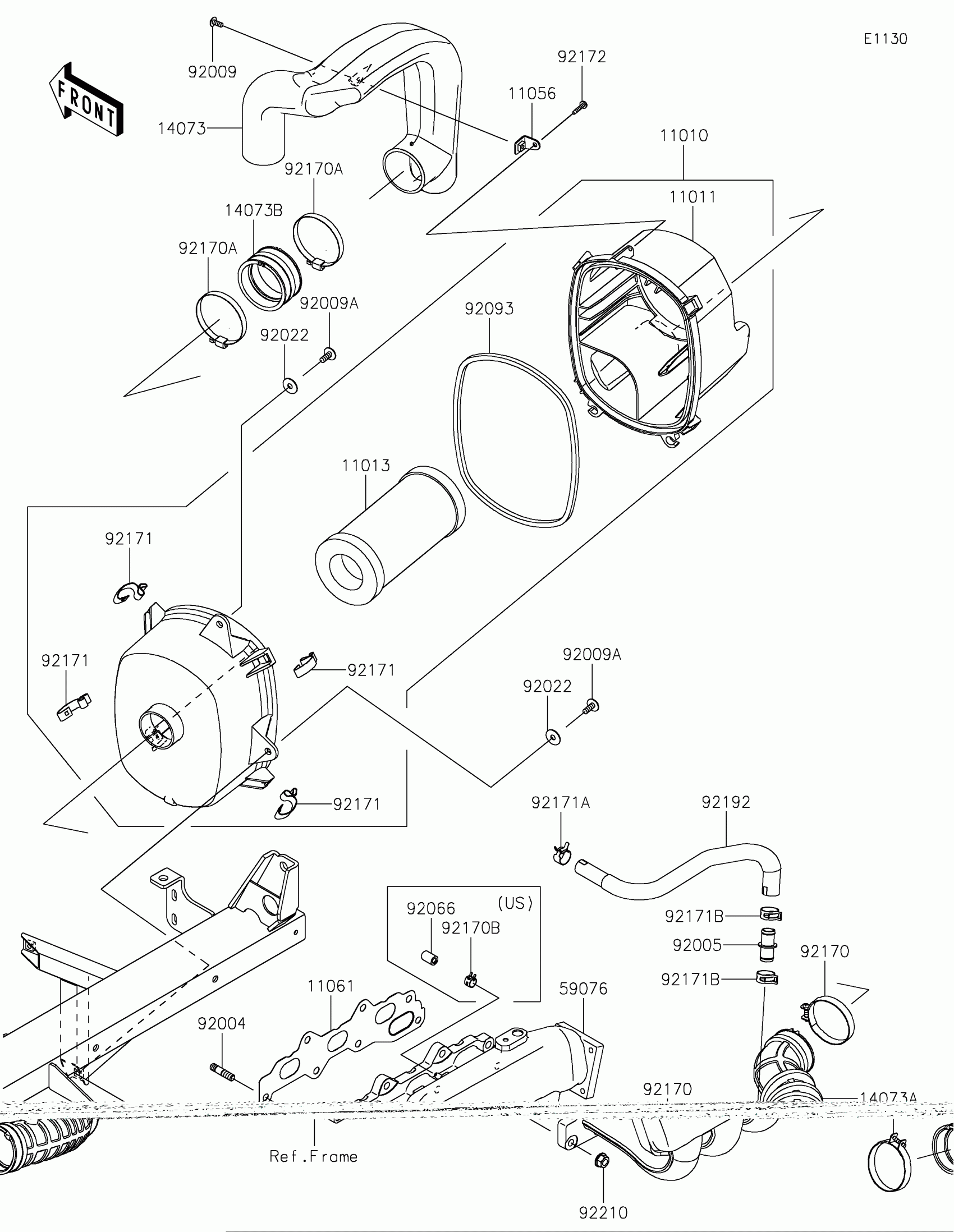

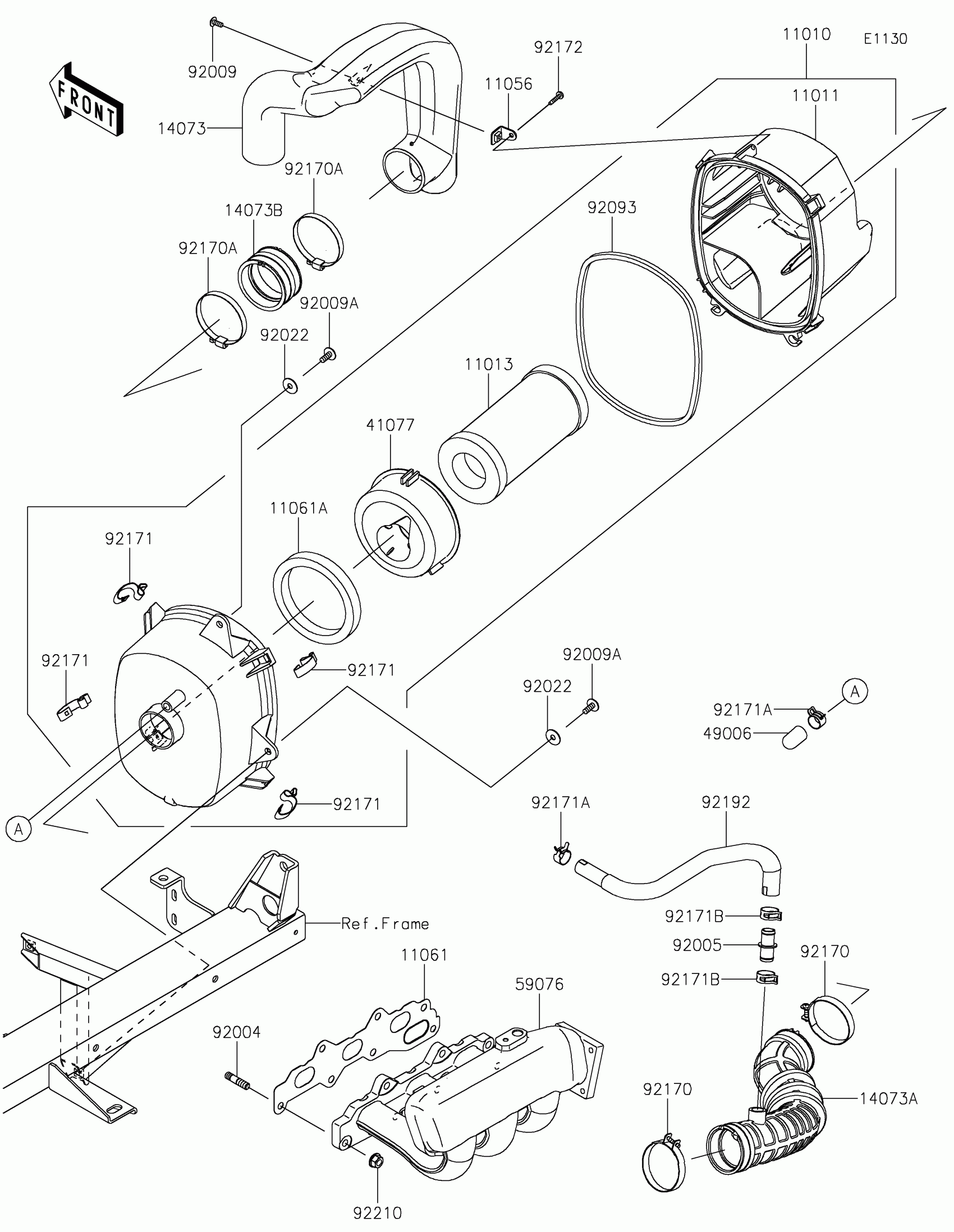

Kawasaki MULE PRO-FXT™ Air Cleaner Diagram

FILTER-ASSY-AIR

CASE-AIR FILTER,UPP

ELEMENT-AIR FILTER

BRACKET,AIR FILTER

GASKET,INTAKE MANIFOLD

GASKET,ADAPTER

DUCT,INTAKE

DUCT,INTAKE

DUCT,JOINT

ADAPTER,ELEMENT

BOOT

MANIFOLD-INTAKE

STUD

FITTING,DUCT-BREATHER TUBE

SCREW,5X12

SCREW,6X16

WASHER,PLAIN,6.5X20X1

SEAL,AIR FILTER

CLAMP

CLAMP

CLAMP

CLAMP

CLAMP,18.8MM

SCREW,TAPPING,5X20

TUBE,BREATHER

NUT
