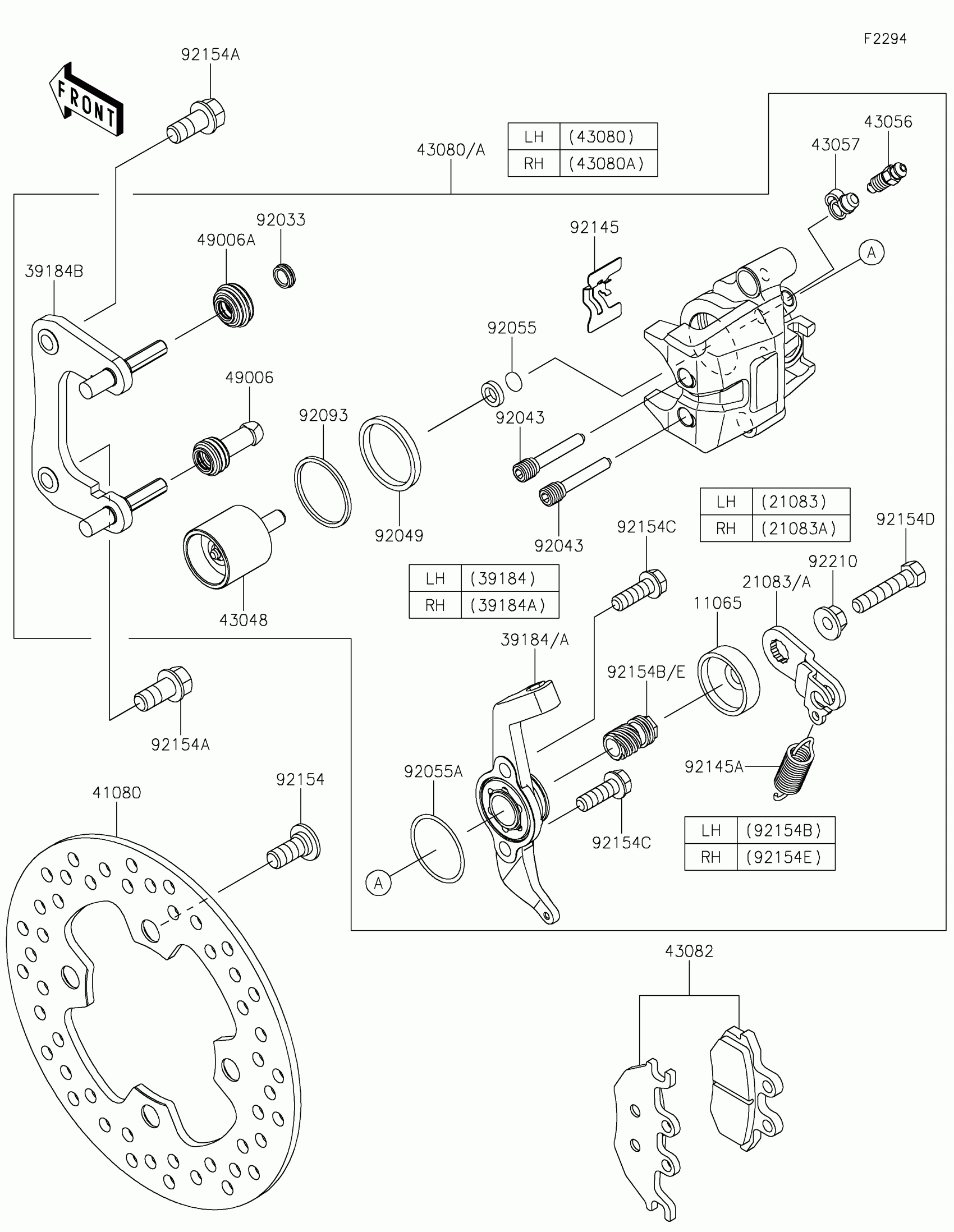

Kawasaki MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION Rear Brake Diagram
#
Description
Price
11065
CAP
11065-0870
$3.71
21083
ARM,BRAKE,RR,LH
21083-0728
$23.87
21083A
ARM,BRAKE,RR,RH
21083-0729
$23.87
39184
BRACKET-ASSY,LH
39184-0042
$91.81
39184A
BRACKET-ASSY,RH
39184-0043
$91.81
39184B
BRACKET-ASSY
39184-0044
$76.87
41080
DISC
41080-0608
$61.78
43048
PISTON-CALIPER
43048-0027
$65.39
43056
BREATHER-BRAKE
43056-0010
$4.05
43057
CAP-BREATHER
43057-0552
$5.01
43080
CALIPER-SUB-ASSY,RR,LH
43080-0163
$495.24
43080A
CALIPER-SUB-ASSY,RR,RH
43080-0164
$495.24
43082
PAD-ASSY-BRAKE
43082-0140
$58.52
49006
BOOT
49006-0591
Unavailable
49006A
BOOT
49006-0592
Unavailable
92033
RING-SNAP
92033-0749
$3.42
92043
PIN
92043-0818
$7.31
92049
SEAL-OIL
92049-0765
Unavailable
92055
RING-O
92055-0793
$3.44
92055A
RING-O
92055-0795
$3.20
92093
SEAL
92093-0613
$5.28
92145
SPRING
92145-1619
Unavailable
92145A
SPRING,RETURN,47MM
92145-1690
$5.24
92154
BOLT,SOCKET,10X23
92154-0713
$4.10
92154A
BOLT,FLANGED,10X22
92154-1327
$2.75
92154B
BOLT,LH
92154-1479
$26.15
92154C
BOLT
92154-1480
Unavailable
92154D
BOLT
92154-1481
$8.40
92154E
BOLT,RH
92154-1503
$26.15
92210
NUT
92210-0912
$8.40
