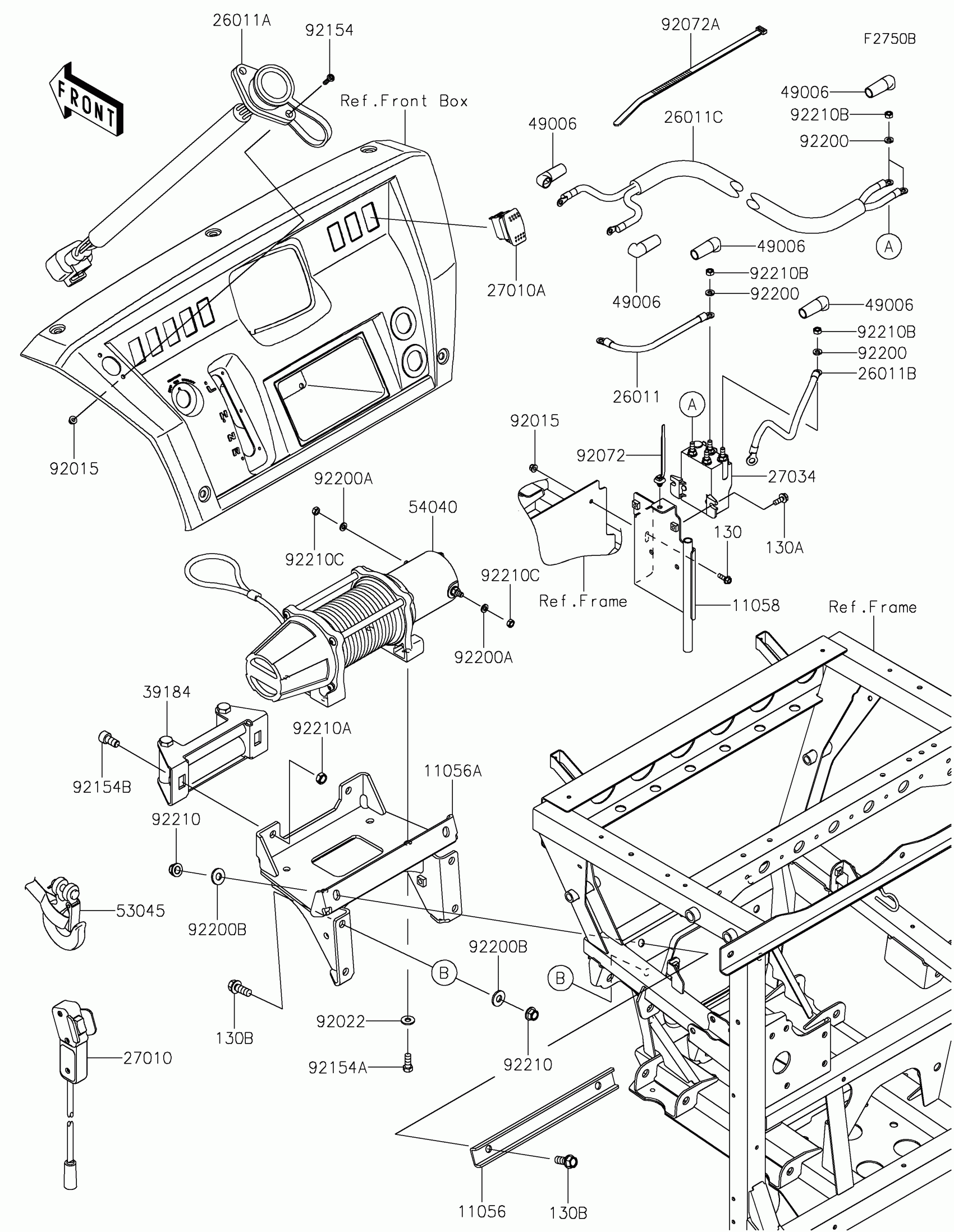

Kawasaki MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION Other(Winch) Diagram

Description

Price

11056

BRACKET

11056-4074

$12.34

11056A

BRACKET,WINCH

11056-7783

$117.93

11058

BRACKET

11058-0997

$8.39

26011

WIRE-LEAD,RED

26011-0916

$14.88

26011A

WIRE-LEAD,REMOTE SWITCH

26011-0935

$119.51

26011B

WIRE-LEAD,BLACK

26011-0989

$18.37

26011C

WIRE-LEAD,BLUE/YELLOW

26011-0990

$101.41

27010

SWITCH,REMOTE

27010-0820

$129.74

27010A

SWITCH,CARLING

27010-0821

$75.35

27034

RELAY

27034-0008

$120.40

39184

BRACKET-ASSY,FAIRLEAD

39184-0740

$61.78

49006

BOOT

49006-0601

$2.15

53045

HOOK-ASSY

53045-0028

$23.05

54040

WINCH

54040-0008

$374.44

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$3.29

92022

WASHER,8.2X19X2

92022-1533

$4.85

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072A

BAND,L=292.1

92072-3509

Unavailable

92154

BOLT,SOCKET,5X20

92154-0829

$1.89

92154A

BOLT,8X20

92154-1876

$2.19

92154B

BOLT,SOCKET,10X20

92154-1877

$3.12

92200

WASHER,6 LOCK

92200-1776

$0.97

92200A

WASHER,6.4X12X1.8

92200-2358

$0.54

92200B

WASHER,10.2X23X2.5

92200-7506

$3.51

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

92210A

NUT,LOCK,M10

92210-1432

$1.34

92210B

NUT,M6X1.00

92210-1434

$1.90

92210C

NUT,6MM

92210-1792

$2.41

130

BOLT-FLANGED,5X16

130BA0516

$0.73

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,10X25

130BB1025

$4.63
