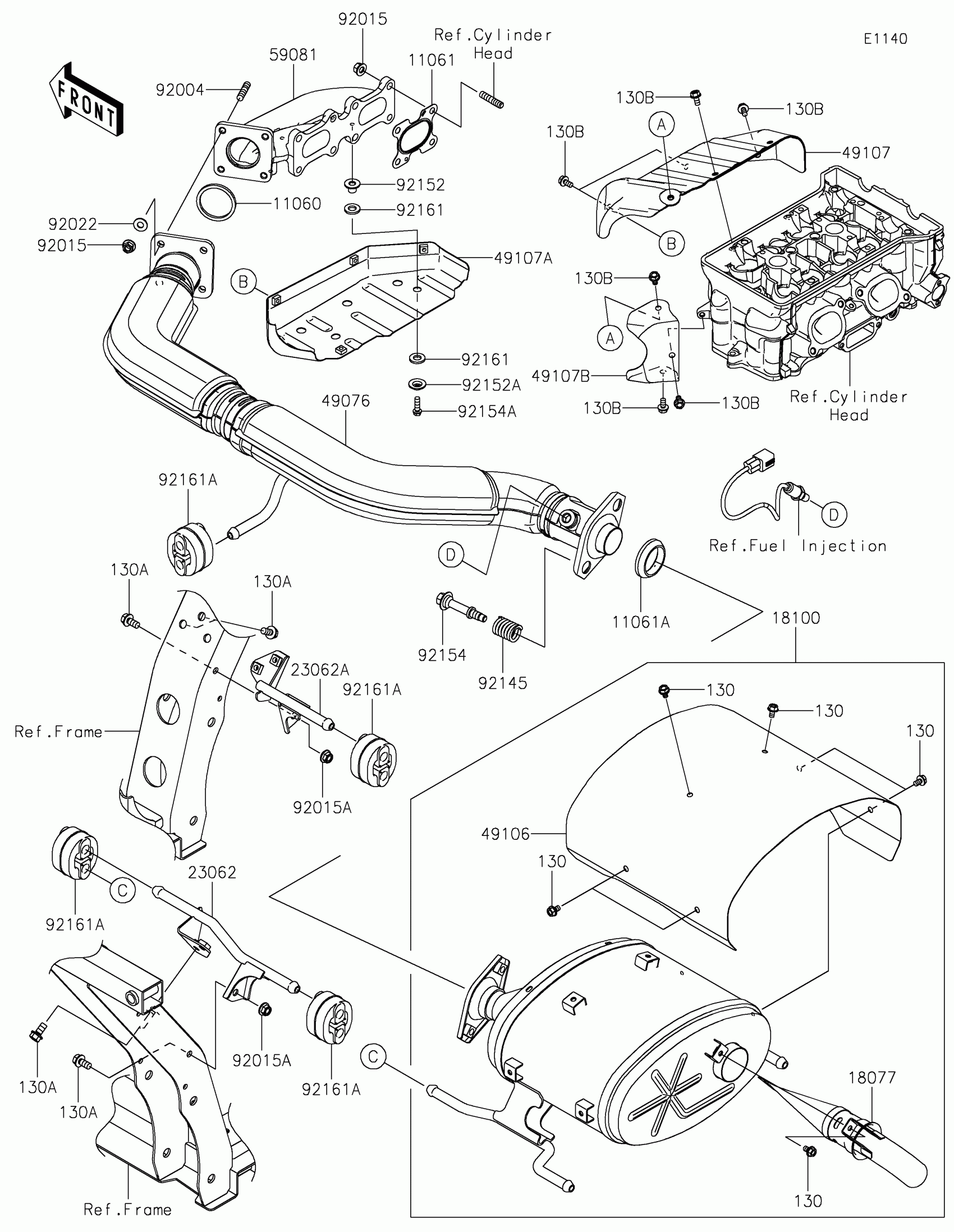

Kawasaki MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION Muffler(s) Diagram

Description

Price

11060

GASKET,EXHAUST PIPE

11060-1680

$10.72

11061

GASKET,CYL.HEAD-EXHAUST PIPE

11061-1310

$11.06

11061A

GASKET,MUFFLER

11061-1445

$35.37

18077

ARRESTER-SPARK

18077-0714

$97.72

18100

BODY-ASSY-MUFFLER

18100-0619

$960.14

23062

BRACKET-COMP,LEFT

23062-1410

$23.79

23062A

BRACKET-COMP,RIGHT

23062-1411

$18.24

49076

PIPE-ASSY-EXHAUST

49076-0002

$2,130.39

49106

COVER-MUFFLER

49106-0878

$196.88

49107

COVER-EXHAUST PIPE,UPPER

49107-0852

$206.56

49107A

COVER-EXHAUST PIPE,LOWER

49107-0853

$90.56

49107B

COVER-EXHAUST PIPE,SIDE

49107-0854

$53.87

59081

MANIFOLD-EXHAUST

59081-0471

$122.50

92004

STUD,8X25

92004-1214

Unavailable

92015

NUT,8MM

92015-1402

$4.69

92015A

NUT,8MM

92015-1432

$6.57

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92145

SPRING

92145-2262

$9.27

92152

COLLAR,6.8X10X11.6

92152-1699

$4.41

92152A

COLLAR

92152-3797

$2.78

92154

BOLT,MUFFLER

92154-4485

$8.99

92154A

BOLT-FLANGED-SMALL,6X20

92154-7254

$1.01

92161

DAMPER

92161-0319

$3.90

92161A

DAMPER

92161-2466

$25.14

130

BOLT-FLANGED,6X10

130BD0610

$3.67

130A

BOLT-FLANGED,8X16

130CA0816

$2.49

130B

BOLT-FLANGED,6X12

130CD0612

$1.78
