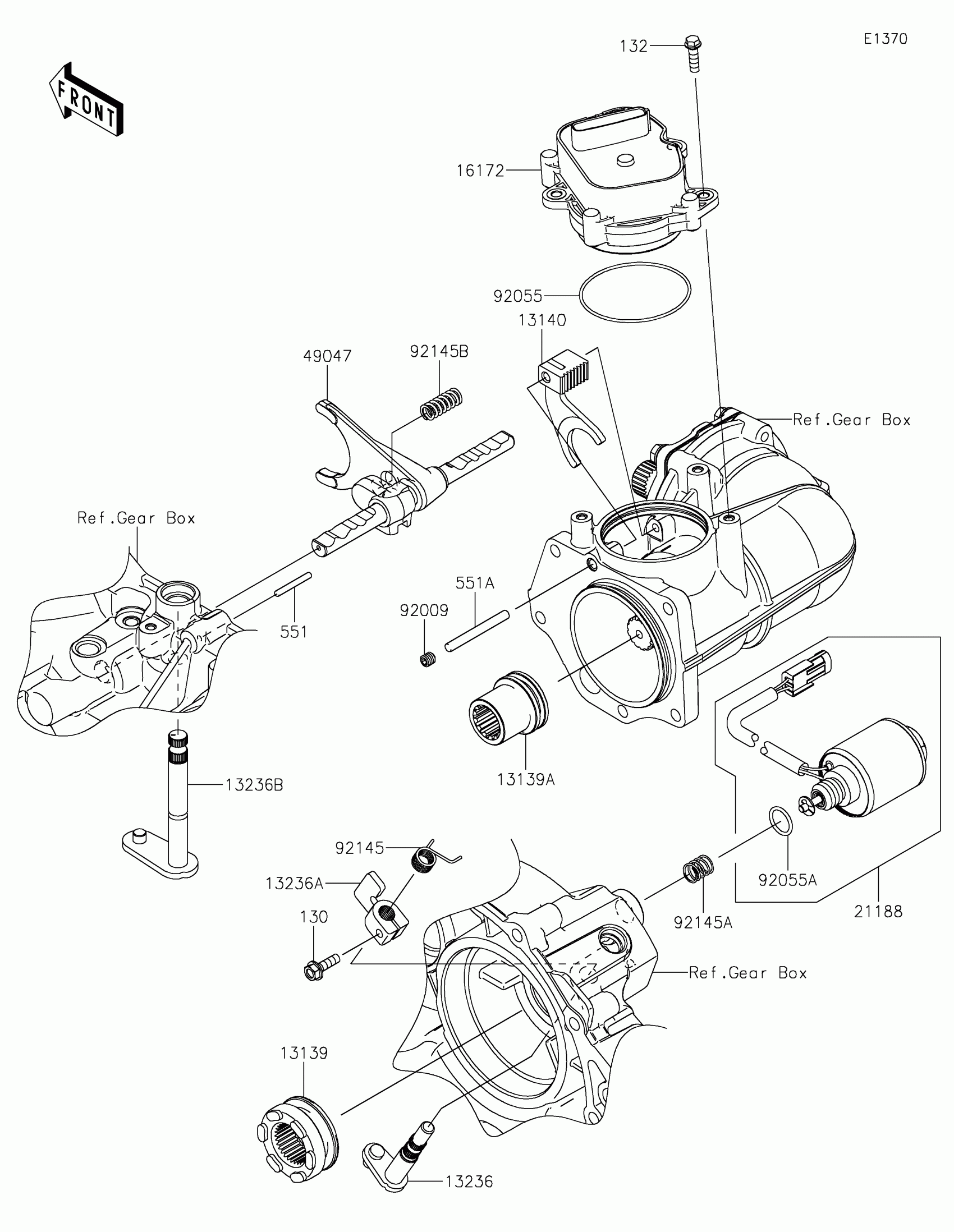

Kawasaki MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION Gear Change Mechanism Diagram

Description

Price

13139

SHIFTER

13139-0019

$68.68

13139A

SHIFTER

13139-0021

$102.63

13140

FORK-SHIFT

13140-0667

$67.96

13236

LEVER-COMP,DIFF LOCK

13236-0744

$27.57

13236A

LEVER-COMP,DIFF LOCK

13236-0745

$25.91

13236B

LEVER-COMP,CHANGE SHIFT

13236-0746

$45.87

16172

ACTUATOR

16172-0030

$637.73

21188

SOLENOID

21188-0010

$110.54

49047

ROD-SHIFT

49047-0044

$304.17

92009

SCREW,SOCKET,8X8

92009-1977

$1.13

92055

RING-O,1.9X71.8

92055-0781

$3.32

92055A

RING-O

92055-0829

$3.68

92145

SPRING

92145-1572

$3.23

92145A

SPRING

92145-1573

$3.74

92145B

SPRING

92145-1574

$6.18

130

BOLT-FLANGED,6X20

130BA0620

$1.74

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

551

PIN-DOWEL

551A0432

$4.69

551A

PIN-DOWEL,6X56

551A0656

$7.59
