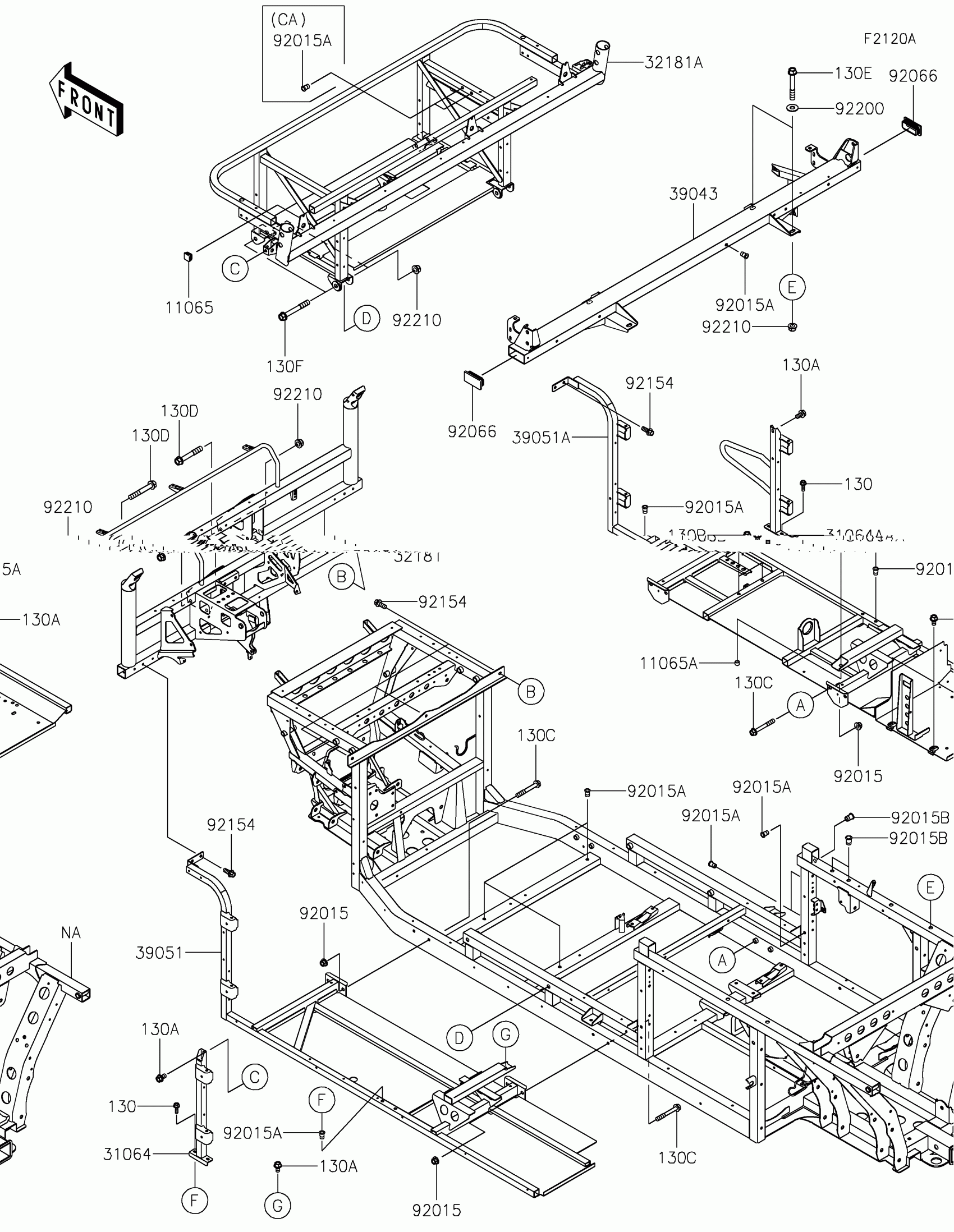

Kawasaki MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION Frame(DTFNN/DTFNL) Diagram

Description

Price

11065

CAP

11065-0901

$2.94

11065A

CAP

11065-7504

$1.50

31064

PIPE-COMP,RR DOOR HINGE,LH

31064-0704

$40.49

31064A

PIPE-COMP,RR DOOR HINGE,RH

31064-0705

$55.90

32181

FRAME-SUB-COMP,DASH PANEL

32181-0048

$758.80

32181A

FRAME-SUB-COMP,SEAT

32181-0100

$730.57

39043

CROSSMEMBER-COMP,C PILLAR

39043-0039

$475.04

39051

FRAME-COMP-SIDE,LH

39051-0043

$246.93

39051A

FRAME-COMP-SIDE,RH

39051-0044

$246.93

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,POP,6MM,L=15

92015-1791

$4.69

92015B

NUT,POP,8MM,L=16.5

92015-1793

$5.00

92066

PLUG

92066-7505

$4.51

92154

BOLT,FLANGED,8X20

92154-1226

$1.02

92200

WASHER,10.5X25X1.6

92200-1595

$6.18

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,8X14

130BA0814

$2.16

130B

BOLT-FLANGED,8X22

130BA0822

$3.21

130C

BOLT-FLANGED,8X60

130BA0860

$1.67

130D

BOLT-FLANGED,10X65

130BA1065

$2.65

130E

BOLT-FLANGED,10X70

130BA1070

$2.75

130F

BOLT-FLANGED,10X75

130CA1075

$4.31

92015A

NUT,POP,6MM,L=15

92015-1791

$4.69
