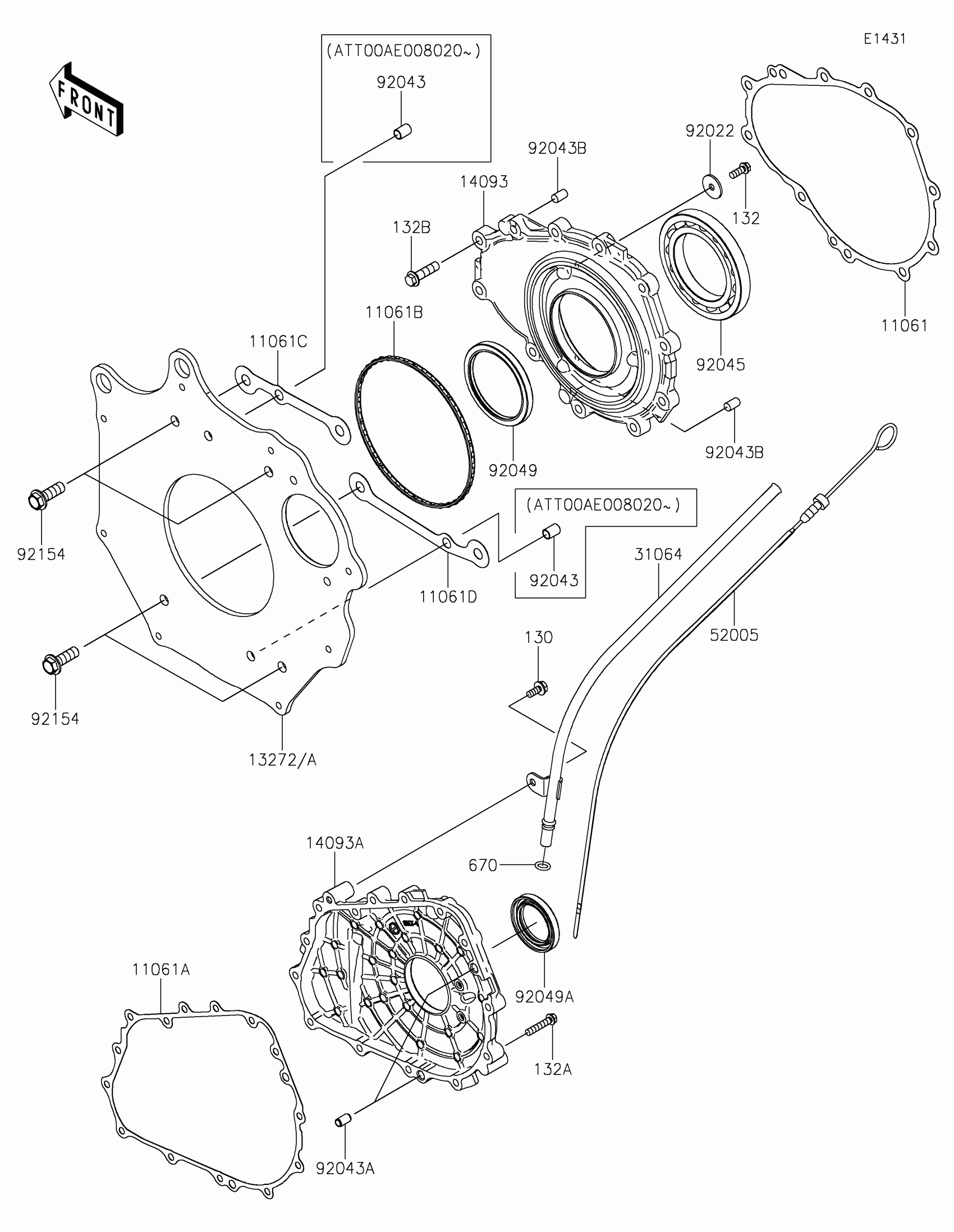

Kawasaki MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION Engine Cover(s) Diagram

Description

Price

11061

GASKET,CLUTCH COVER

11061-1305

$20.86

11061A

GASKET,CRANKCASE COVER

11061-1461

$50.78

11061B

GASKET,COVER-BACK PLATE

11061-1462

$38.00

11061C

GASKET,CRANKCASE UPPER

11061-1533

$4.97

11061D

GASKET,CRANKCASE LOWER

11061-1534

$5.29

13272A

PLATE,CLUTCH COVER,BACK

13272-4346

$702.29

14093

COVER,CRANKCASE LH

14093-1385

$151.69

14093A

COVER,CRANKCASE RH

14093-1386

$155.48

31064

PIPE-COMP

31064-0753

$19.34

52005

GAUGE,OIL

52005-0783

$76.20

92022

WASHER,6.5X24X2

92022-1690

$2.99

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,6.2X8X14

92043-1263

$0.46

92043B

PIN,8X14

92043-1567

$1.62

92045

BEARING-BALL,16014CS45

92045-0709

$76.67

92049

SEAL-OIL

92049-0869

$96.52

92049A

SEAL-OIL

92049-0875

$17.80

92154

BOLT-FLANGED,10X30

92154-7039

$4.32

130

BOLT-FLANGED,6X14

130BA0614

$0.97

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132B

BOLT-FLANGED-SMALL,8X30

132BA0830

$3.39

670

O RING,10MM

670D2010

$1.41
