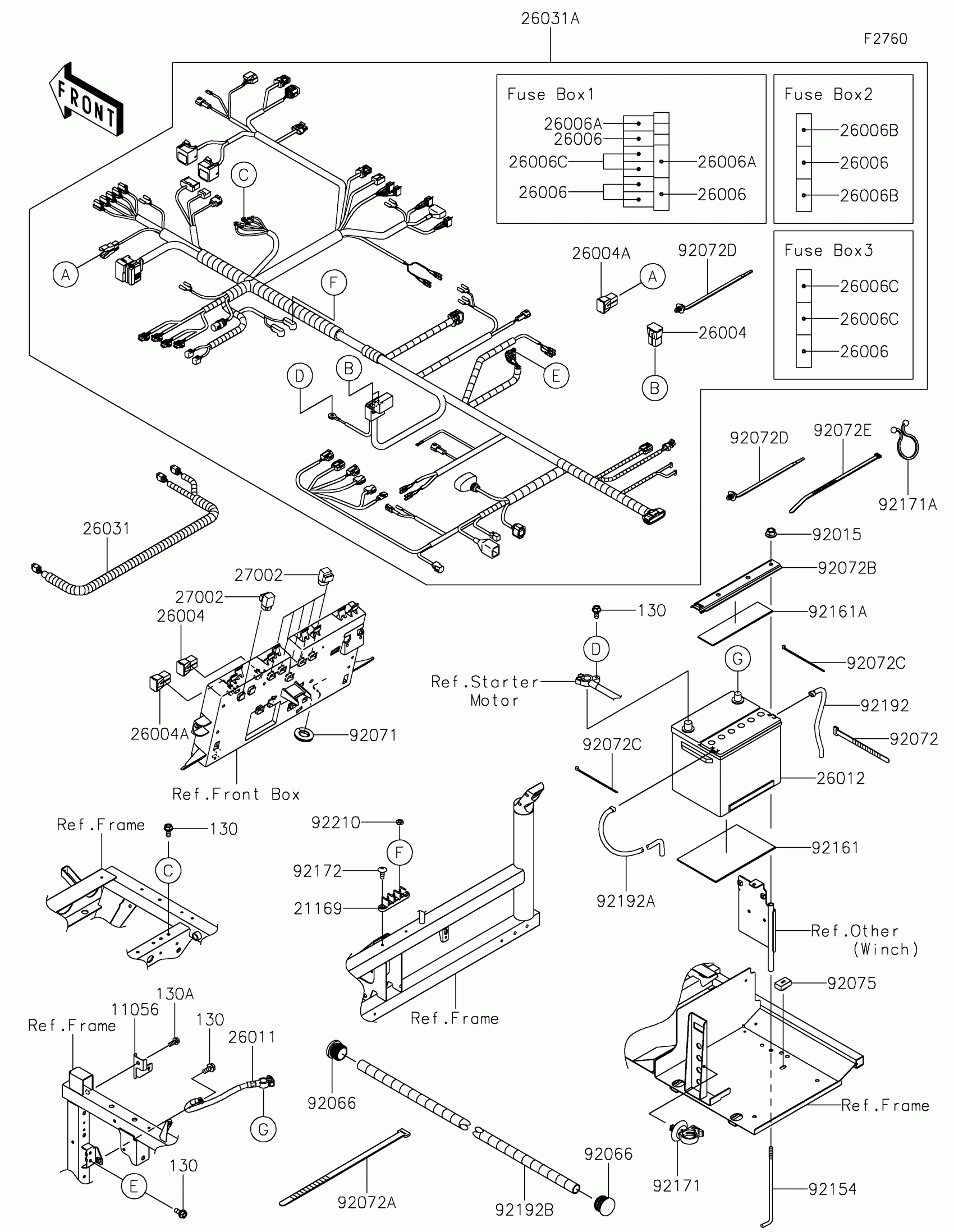

Kawasaki MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION Chassis Electrical Equipment Diagram

Description

Price

11056

BRACKET

11056-4397

$8.17

21169

TERMINAL

21169-0571

$12.95

26004

FUSE-ASSY,60A

26004-0024

$4.82

26004A

FUSE-ASSY,40A

26004-0035

$4.11

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$5.24

26011

WIRE-LEAD,BATTERY(-)

26011-0912

$44.80

26012

BATTERY,12V 32AH

26012-0619

$163.78

26031

HARNESS,SUB

26031-2226

$84.03

26031A

HARNESS,MAIN

26031-7068

$706.91

27002

RELAY-ASSY

27002-1062

$45.39

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92066

PLUG

92066-0908

$0.98

92071

GROMMET,22X45X9

92071-0729

$2.15

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=218

92072-032

$5.00

92072B

BAND

92072-0767

$9.90

92072C

BAND,92X2.4

92072-0791

$0.42

92072D

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072E

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER

92075-099

$5.52

92154

BOLT,BATTERY

92154-1650

$11.00

92161

DAMPER

92161-0578

$4.25

92161A

DAMPER

92161-1753

$7.61

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP

92171-1185

$2.46

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92192

TUBE,BREATHER,7X10X240

92192-1646

$3.90

92192A

TUBE,BREATHER,7X10X450

92192-1694

$8.13

92192B

TUBE,CONVOLUTED

92192-1814

$29.07

92210

NUT

92210-1680

$0.22

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,8X20

130BA0820

$4.14

92072E

BAND,L=292.1

92072-3509

Unavailable
