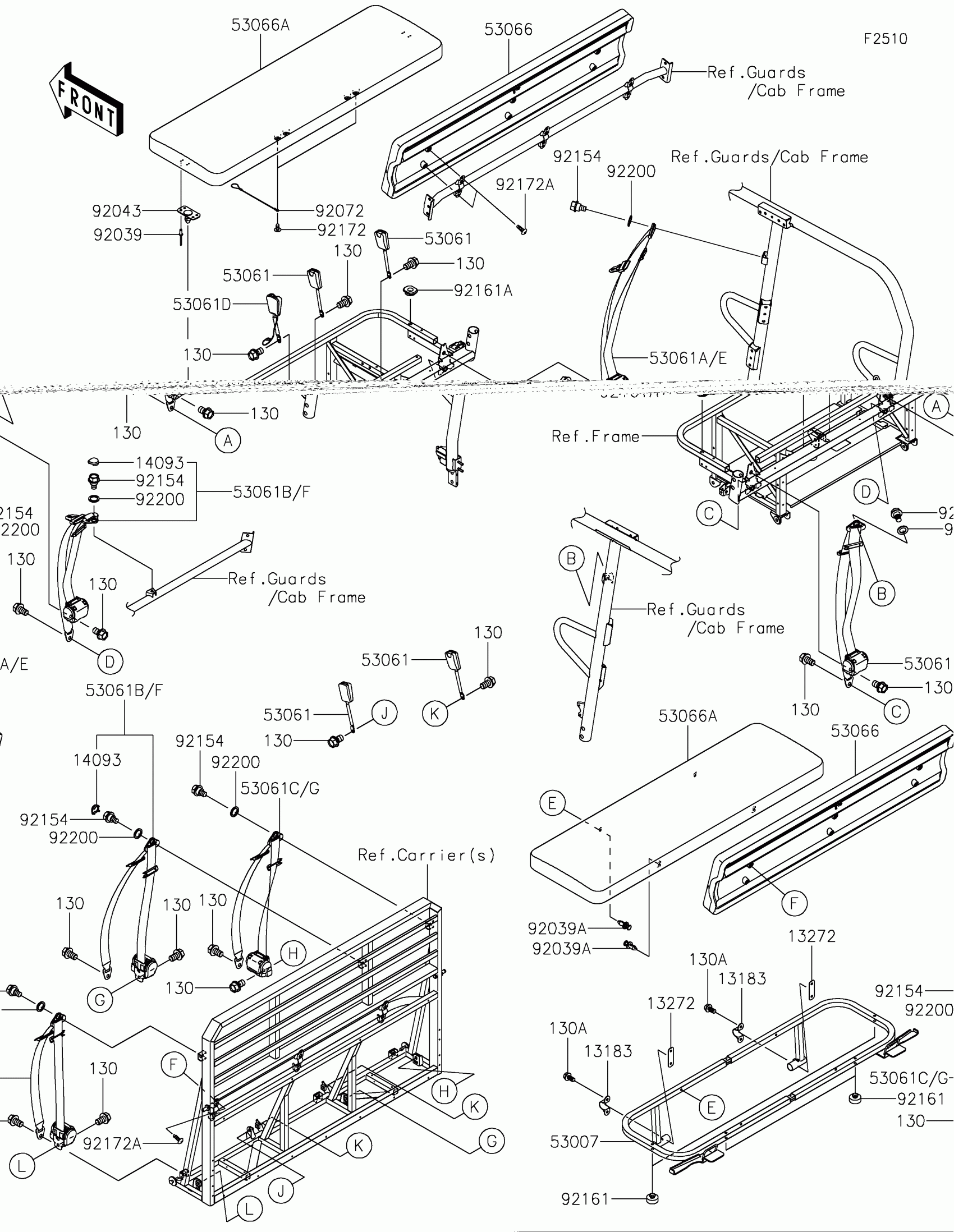

Kawasaki MULE PRO-FXT™ 1000 LE Seat Diagram

#

Description
Price

13183

PLATE,SEAT

13183-1400

$5.74

13272

PLATE

13272-1699

$1.35

14093

COVER,D-RING

14093-1037

$3.80

53007

FRAME-SEAT

53007-0364

$159.66

53061

BELT-SEAT,BUCKLE

53061-0039

$27.99

53061D

BELT-SEAT,BUCKLE,SW.

53061-0364

$49.05

53061E

BELT-SEAT,FR,LH&RH

53061-0408

$156.30

53061F

BELT-SEAT,MIDDLE

53061-0409

$163.87

53061G

BELT-SEAT,RR,LH&RH

53061-0410

$143.22

53066

SEAT-ASSY,BACK,BLACK

53066-0742-MA

$280.54

53066A

SEAT-ASSY,BOTTOM,BLACK

53066-0743-MA

$482.40

92039

RIVET

92039-0747

$1.77

92039A

RIVET

92039-0865

$0.80

92043

PIN

92043-0859

$1.39

92072

BAND

92072-0769

$3.41

92154

BOLT,FLANGED,10X19.5

92154-1959

$5.66

92161

DAMPER

92161-1065

$2.84

92161A

DAMPER,10.5X30X8.2

92161-1784

$0.74

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,TAPPING,6X20

92172-0488

$2.11

92200

WASHER,16X22X2

92200-1798

$1.20

130

BOLT-FLANGED,12X20

130BA1220

$2.84

130A

BOLT-FLANGED,8X16

130CA0816

$1.77
